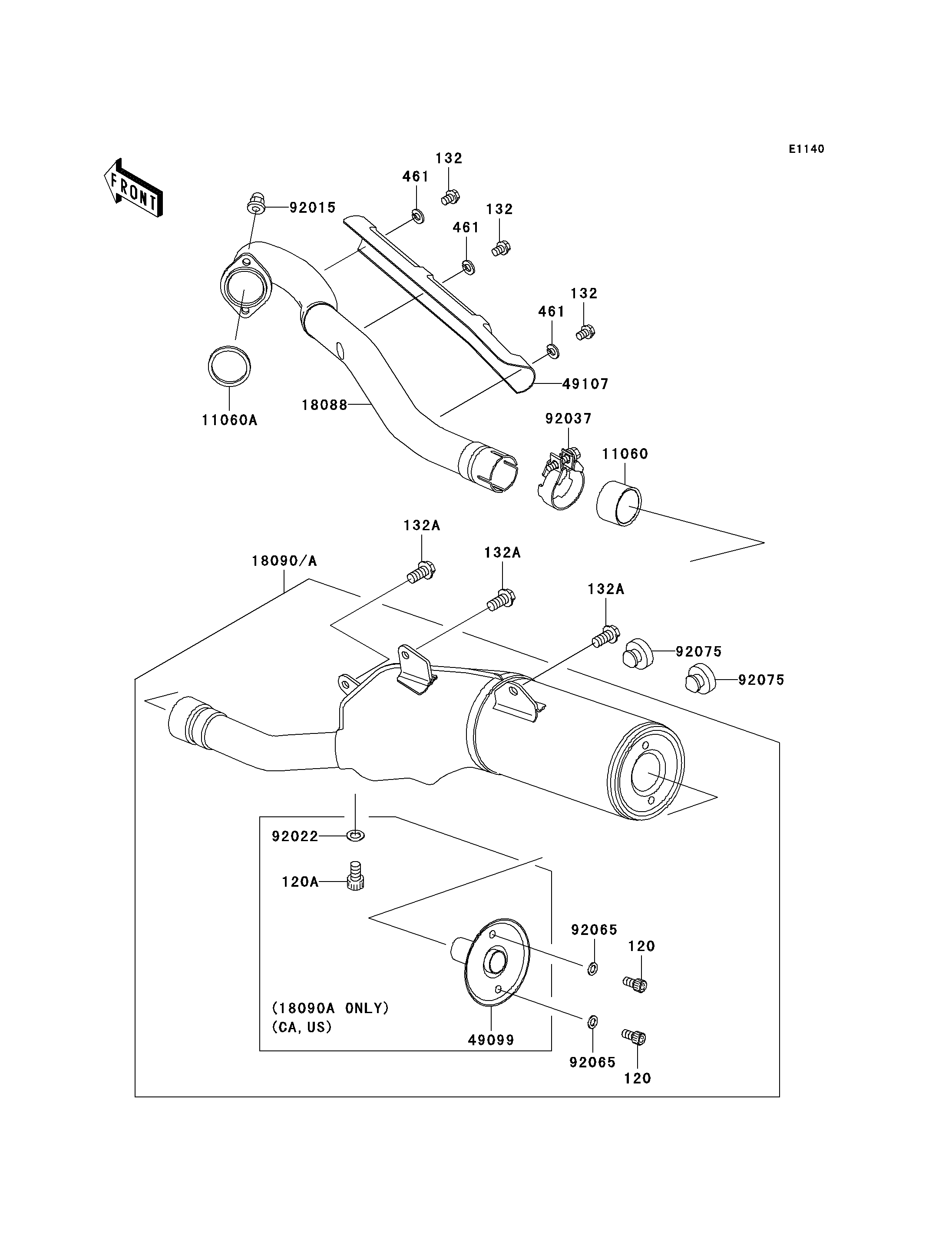

2005 KLX300R - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
120
120
132
132
132
132A
132A
132A
461
461
461
11060
11060A
18088
49107
92015
92037
92065
92065
92075
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X12 120 120P0612 2
BOLT-FLANGED-SMALL 132 132Y0608 3
BOLT-FLANGED-SMALL 132A 132Y0816 3
WASHER-SPRING,6MM 461 461S0600 3
GASKET,MANIFOLD EXHAUST 11060 11060-1068 1
GASKET,EXHAUST PIPE 11060A 11060-1203 1
PIPE-EXHAUST 18088 18088-0034 1
COVER-EXHAUST PIPE 49107 49107-0008 1
NUT,8MM 92015 92015-1402 2
CLAMP,MUFFLER,BLACK 92037 92037-1270 1
GASKET 92065 92065-096 2
DAMPER 92075 92075-005 2
BOLT-SOCKET,8X14 120A 120P0814 1 CAUS
BODY-COMP-MUFFLER 18090 18090-1569 1 CN
BODY-COMP-MUFFLER 18090A 18090-1570 1 CAUS
BAFFLE-PIPE MUFFLER 49099 49099-1541 1 CAUS
WASHER,8.2X14X1.0 92022 92022-1488 1 CAUS
