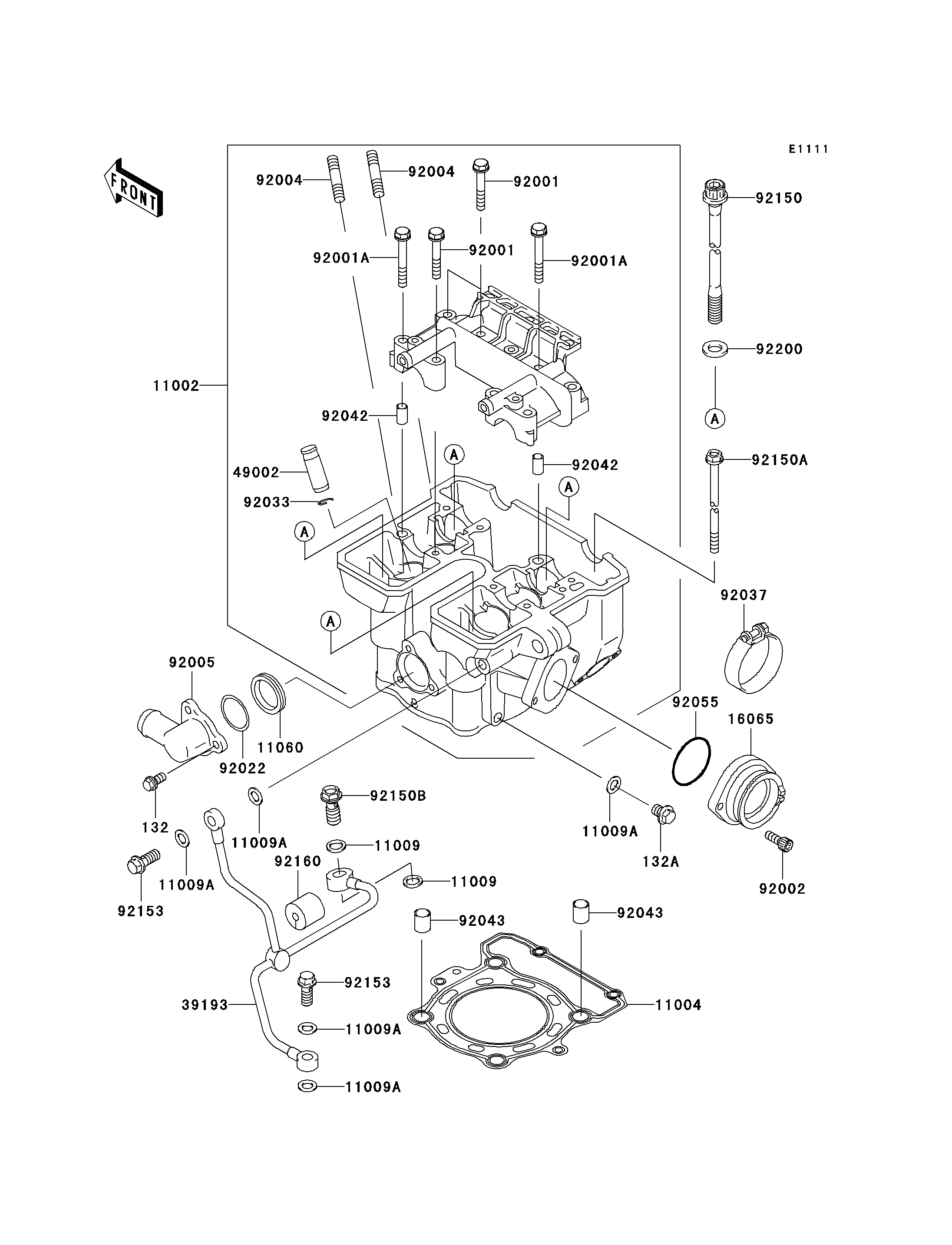

2005 KLX300R - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
132
132A
11002
11004
11009
11009
11009A
11009A
11009A
11009A
11009A
11060
16065
39193
49002
92001
92001
92001A
92001A
92002
92004
92004
92005
92022
92033
92037
92042
92042
92043
92043
92055
92150
92150A
92150B
92153
92153
92160
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132Y0612 3
BOLT-FLANGED-SMALL 132A 132Y0810 1
HEAD-ASSY-CYLINDER 11002 11002-1322 1
GASKET-HEAD 11004 11004-1314 1
GASKET,10X14.5X1.5 11009 11009-1105 2
GASKET,8.2X14X1.0 11009A 11009-1344 5
GASKET,THERMOSTAT 11060 11060-1300 1
HOLDER-CARBURETOR 16065 16065-1283 1
PIPE-OIL 39193 39193-1029 1
GUIDE-VALVE 49002 49002-1126 AR
BOLT,FLANGED,6X38 92001 92001-1105 6
BOLT,6X46 92001A 92001-1872 2
BOLT,6X16 92002 92002-1143 2
STUD,8X22 92004 92004-1217 2
FITTING 92005 92005-1258 1
WASHER,25.3X30X1 92022 92022-161 1
RING-SNAP 92033 92033-1247 4
CLAMP,ID=53,BLACK 92037 92037-1304 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,10.1X12X14 92043 92043-4009 2
RING-O 92055 92055-1255 1
BOLT,10X165 92150 92150-1368 4
BOLT,6X135 92150A 92150-1552 2
BOLT,BANJO,10X23 92150B 92150-1641 1
BOLT,BANJO,8X20 92153 92153-0651 2
DAMPER,6.3X22X20 92160 92160-1013 1
WASHER,10.5X19X2.3 92200 92200-1042 4
