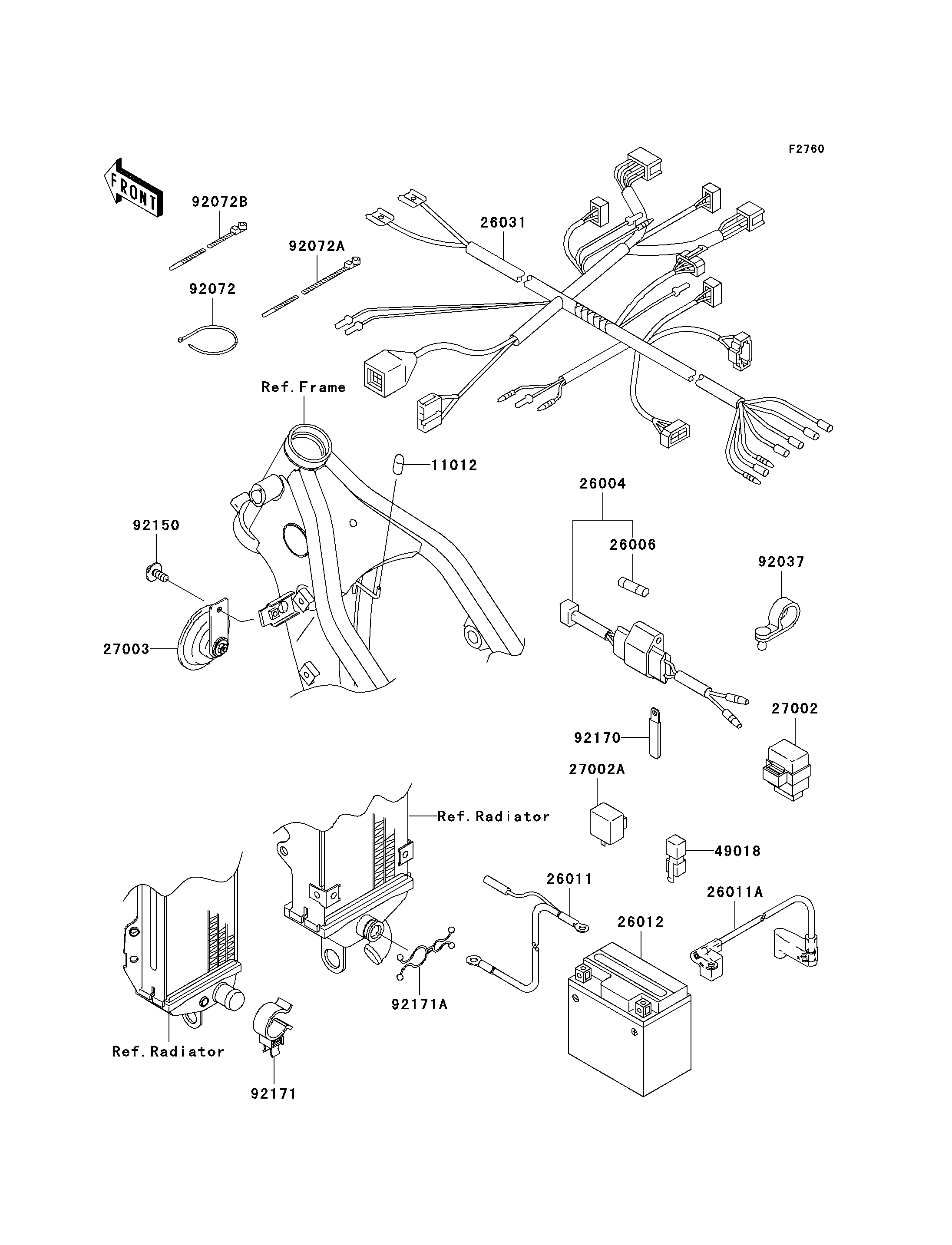

2006 KLX250S - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11012
26004
26006
26011
26011A
26012
26031
27002
27002A
27003
49018
92037
92072
92072A
92072B
92150
92170
92171
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,BUNGEE CORD HOOK 11012 11012-1589 1
FUSE-ASSY 26004 26004-1089 1
FUSE,10A,L=30 26006 26006-1002 3
WIRE-LEAD,BATTERY(-) 26011 26011-1592 1
WIRE-LEAD,BATTERY(+) 26011A 26011-1609 1
BATTERY,FTX7L-BS,12V6AH 26012 26012-0068 1
HARNESS,MAIN 26031 26031-0372 1
RELAY-ASSY 27002 27002-1086 1
RELAY-ASSY,TURN SIGNAL 27002A 27002-1101 1
HORN 27003 27003-0029 1
DIODE 49018 49018-1052 1
CLAMP,SPEED,L=58 92037 92037-1163 5
BAND,L=250 92072 92072-1237 2
BAND,L=215 92072A 92072-1288 1
BAND,L=140 92072B 92072-1293 4
BOLT,FLANGED,6X14 92150 92150-1689 1
CLAMP,L=150 92170 92170-1114 1
CLAMP 92171 92171-1437 1
CLAMP 92171A 92171-1438 1
