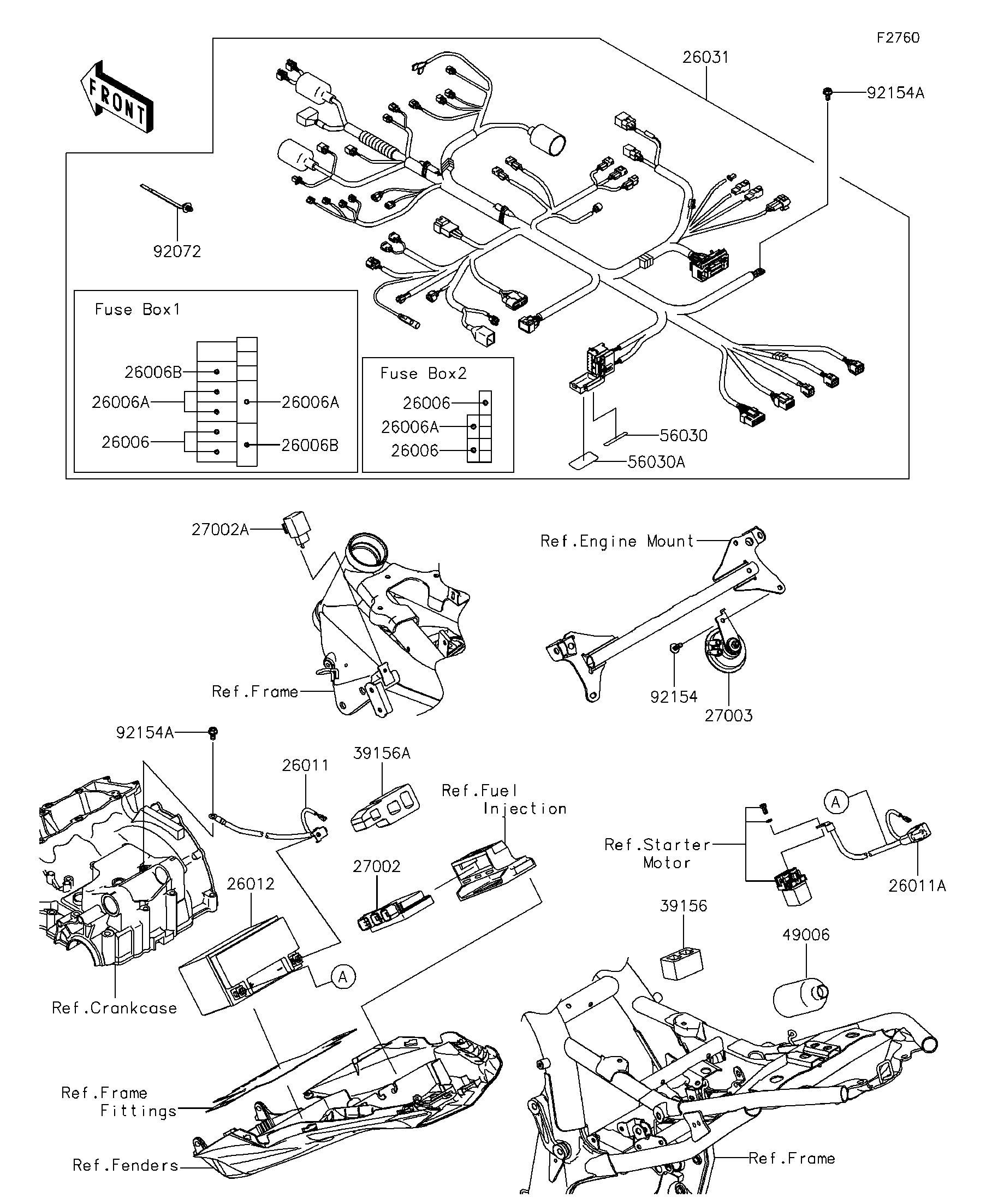

2016 Z800 ABS - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
26006
26006
26006
26006A
26006A
26006A
26006B
26006B
26011
26011A
26012
26031
27002
27002A
27003
39156
39156A
49006
56030
56030A
92072
92154
92154A
92154A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 4
FUSE,MINI BLADE,7.5A,BROWN 26006A 26006-0055 4
FUSE,MINI BLADE,30A,GREEN 26006B 26006-1080 2
WIRE-LEAD,BATTERY(-) 26011 26011-0810 1
WIRE-LEAD,BATTERY(+) 26011A 26011-0812 1
BATTERY,FTX9-BS,12V 8AH 26012 26012-0608 1
HARNESS,MAIN 26031 26031-1923 1
RELAY-ASSY,BOX 27002 27002-0025 1
RELAY-ASSY,SIGNAL LAMP 27002A 27002-1097 1
HORN 27003 27003-0100 1
PAD,FUEL GAUGE 39156 39156-0948 1
PAD,DIAG 39156A 39156-0988 1
BOOT 49006 49006-0573 1
LABEL,FUSE BOX 2 56030 56030-0784 1
LABEL,FUSE BOX1 56030A 56030-0785 1
BAND 92072 92072-1414 17
BOLT,SOCKET,6X18 92154 92154-1026 1
BOLT,FLANGED,6X12 92154A 92154-1050 2
