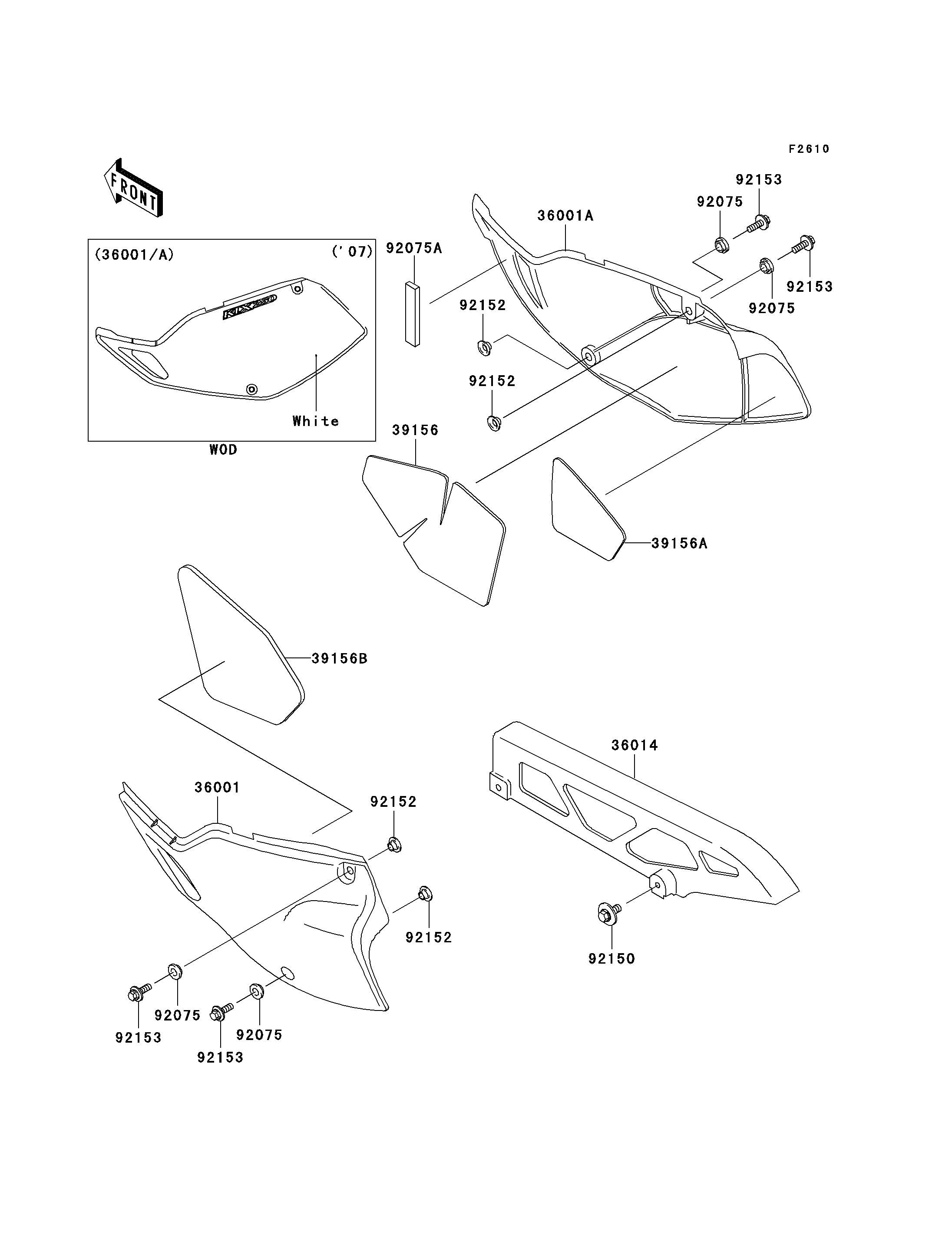

2006 KLX250S - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36001
36001A
36014
39156
39156A
39156B
92075
92075
92075
92075
92075A
92150
92152
92152
92152
92152
92153
92153
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,S.WHITE 36001 36001-0078-266 1
COVER-SIDE,RH,S.WHITE 36001A 36001-0079-266 1
CASE-CHAIN 36014 36014-0003 1
PAD,SIDE COVER,RH 39156 39156-1345 1
PAD,SIDE COVER,RH 39156A 39156-1346 1
PAD,SIDE COVER,LH 39156B 39156-1349 1
DAMPER,8MM 92075 92075-1138 4
DAMPER 92075A 92075-1658 1
BOLT,6X12 92150 92150-1435 2
COLLAR 92152 92152-0334 4
BOLT,6X20 92153 92153-0502 4
