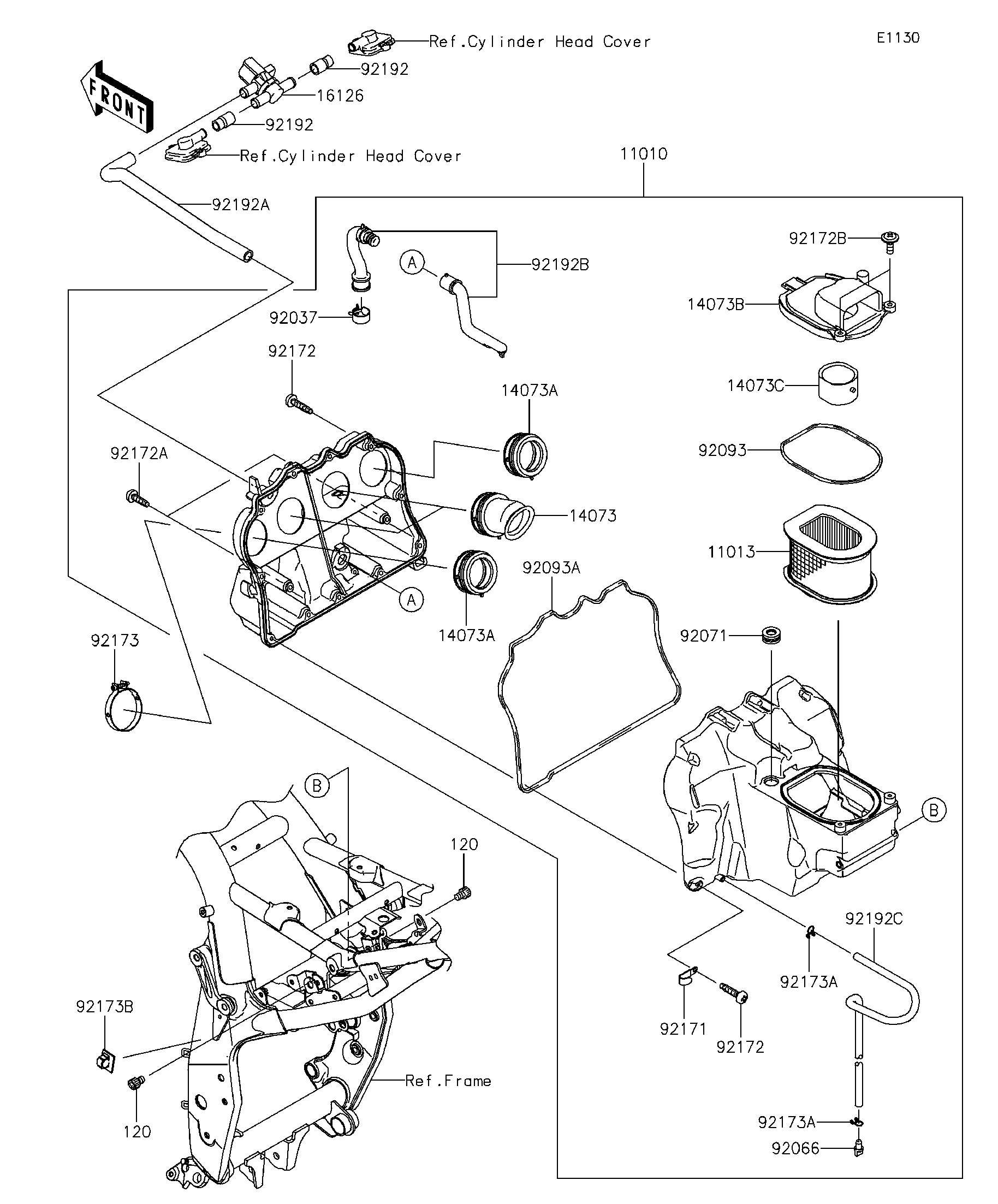

2016 Z800 ABS - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11013
120
120
14073
14073A
14073A
14073B
14073C
16126
92037
92066
92071
92093
92093A
92171
92172
92172
92172A
92172B
92173
92173A
92173A
92173B
92192
92192
92192A
92192B
92192C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0775 1
ELEMENT-AIR FILTER 11013 11013-0044 1
BOLT-SOCKET,6X8 120 120CA0608 2
DUCT,FUNNEL #2&#3 14073 14073-0738 2
DUCT,FUNNEL #1&#4 14073A 14073-0746 2
DUCT,INTAKE,TOP 14073B 14073-0748 1
DUCT,INTAKE,UNDER 14073C 14073-0749 1
VALVE,AIR SWITCHING 16126 16126-1437 1
CLAMP,HOSE CLIP 92037 92037-1460 1
PLUG,DRAIN 92066 92066-1211 1
GROMMET 92071 92071-0714 1
SEAL 92093 92093-0591 1
SEAL 92093A 92093-0592 1
CLAMP 92171 92171-1539 1
SCREW,TAPPING,5X25 92172 92172-0803 11
SCREW,TAPPING,5X20 92172A 92172-0804 2
SCREW,6X16 92172B 92172-0805 2
CLAMP,58MM 92173 92173-0927 4
CLAMP,10MM 92173A 92173-1044 2
CLAMP,DRAIN 92173B 92173-1055 1
TUBE,HEAD-ASV 92192 92192-0033 2
TUBE,ASV-A/C 92192A 92192-1106 1
TUBE,BREATHER 92192B 92192-1158 1
TUBE,DRAIN 92192C 92192-1313 1
