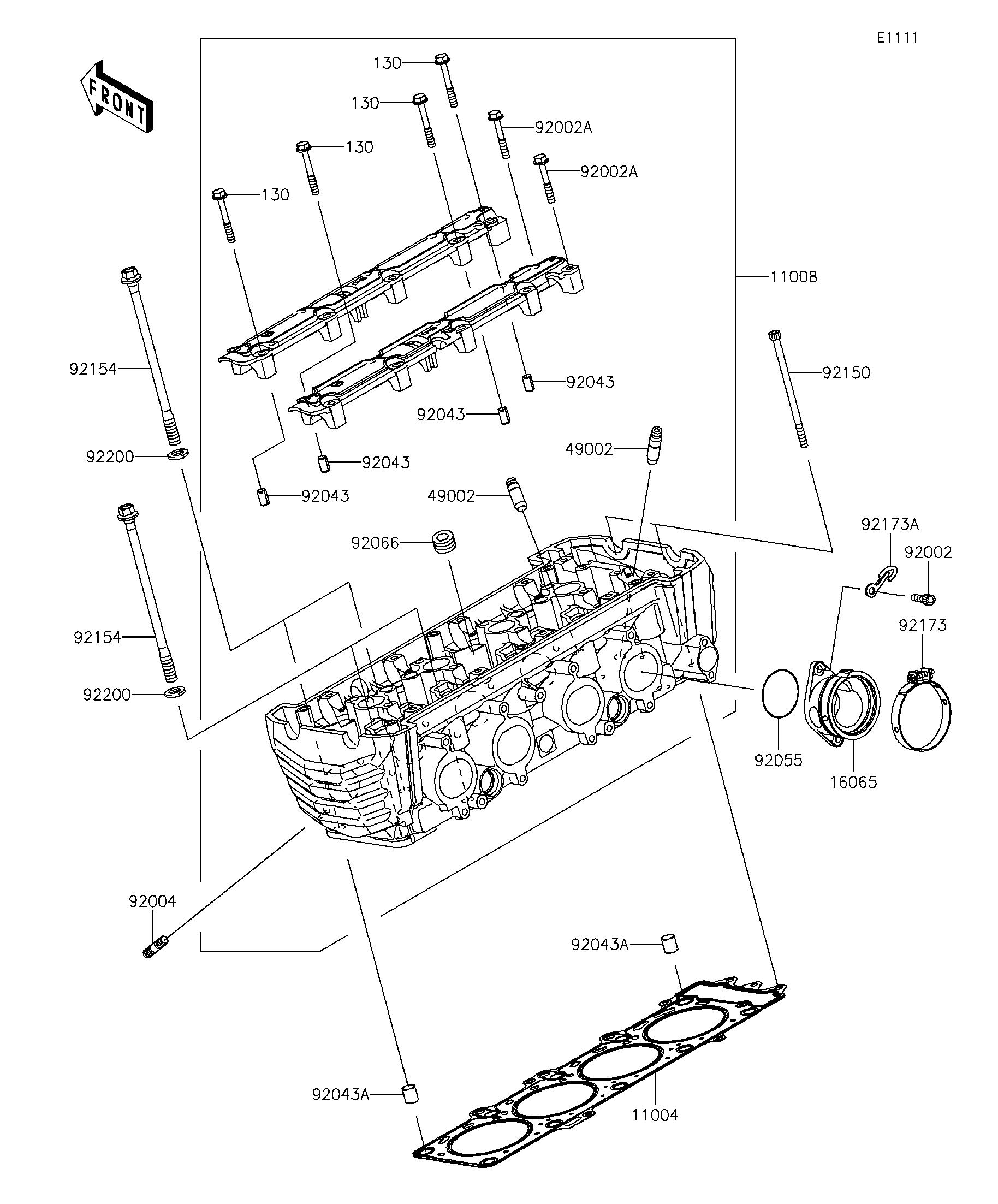

Parts Diagrams |
11004
11008
130
130
130
130
16065
49002
49002
92002
92002A
92002A
92004
92043
92043
92043
92043
92043A
92043A
92055
92066
92150
92154
92154
92173
92173A
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET-HEAD | 11004 | 11004-0727 | 1 | ||
| HEAD-COMP-CYLINDER | 11008 | 11008-0755 | 1 | ||
| BOLT-FLANGED,6X45 | 130 | 130CA0645 | 4 | ||
| HOLDER-CARBURETOR | 16065 | 16065-0121 | 4 | ||
| GUIDE-VALVE | 49002 | 49002-1152 | 16 | ||
| BOLT,6X16 | 92002 | 92002-1143 | 8 | ||
| BOLT,6X40 | 92002A | 92002-1756 | 16 | ||
| STUD | 92004 | 92004-0050 | 8 | ||
| PIN,6.2X8X14 | 92043 | 92043-1263 | 4 | ||
| PIN,10.1X12X14 | 92043A | 92043-4009 | 2 | ||
| RING-O,43.7X1.9 | 92055 | 92055-0737 | 4 | ||
| PLUG,PT1/2X12.5 | 92066 | 92066-0002 | 5 | ||
| BOLT,SOCKET,6X110 | 92150 | 92150-1755 | 2 | ||
| BOLT,FLANGED,10X165 | 92154 | 92154-1086 | 10 | ||
| CLAMP,62MM | 92173 | 92173-0922 | 4 | ||
| CLAMP | 92173A | 92173-0929 | 1 | ||
| WASHER,10.5X19X2.3 | 92200 | 92200-0363 | 10 |
| GASKET-HEAD | |
| REF # | 11004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HEAD-COMP-CYLINDER | |
| REF # | 11008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X45 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| HOLDER-CARBURETOR | |
| REF # | 16065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GUIDE-VALVE | |
| REF # | 49002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X16 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X40 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
| STUD | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PIN,6.2X8X14 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIN,10.1X12X14 | |
| REF # | 92043A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,43.7X1.9 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLUG,PT1/2X12.5 | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X110 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X165 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| CLAMP,62MM | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X19X2.3 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
