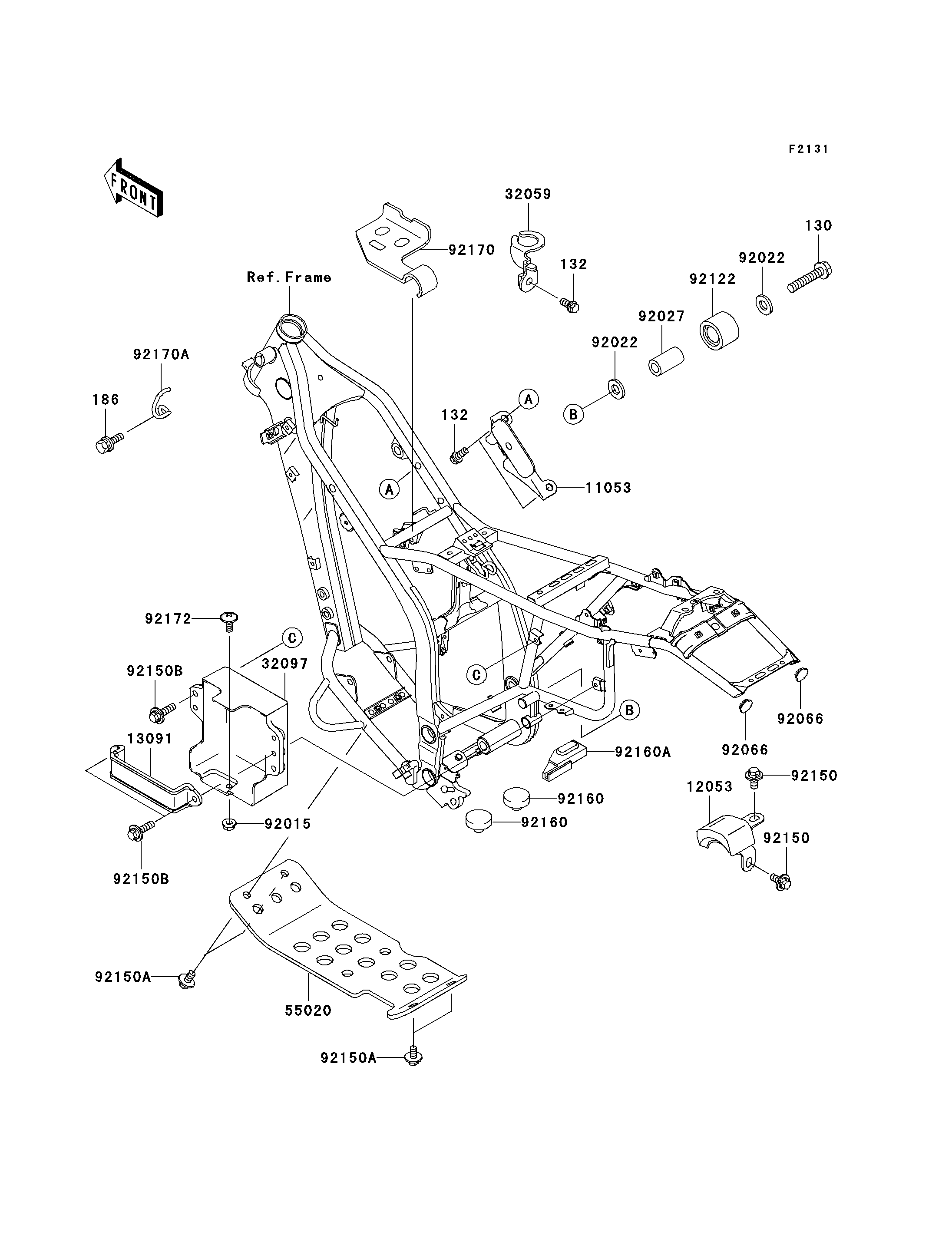

2006 KLX250S - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
132
132
186
11053
12053
13091
32059
32097
55020
92015
92022
92022
92027
92066
92066
92122
92150
92150
92150A
92150A
92150B
92150B
92160
92160
92160A
92170
92170A
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X40 130 130G0840 1
BOLT-FLANGED-SMALL,6X12 132 132L0612 3
BOLT-UPSET-WP,6X20 186 186B0620 1
BRACKET 11053 11053-1242 1
GUIDE-CHAIN 12053 12053-0001 1
HOLDER 13091 13091-1875 1
BRACKET-SWITCH,BRAKE 32059 32059-1117 1
CASE-BATTERY 32097 32097-0001 1
GUARD,ENGINE 55020 55020-1456 1
NUT,FLANGED,6MM 92015 92015-1078 1
WASHER,8.5X20X1.6 92022 92022-1561 2
COLLAR,CHAIN ROLLER 92027 92027-1670 1
PLUG,FRAME END,12X13 92066 92066-1034 2
ROLLER,CHAIN GUIDE 92122 92122-1153 1
BOLT,6X14 92150 92150-1340 2
BOLT,6X12 92150A 92150-1435 4
BOLT,FLANGED,6X22 92150B 92150-1481 3
DAMPER 92160 92160-1396 2
DAMPER 92160A 92160-1565 1
CLAMP,HARNESS 92170 92170-1423 1
CLAMP,HARNESS 92170A 92170-1944 1
SCREW,6X14 92172 92172-0004 1
