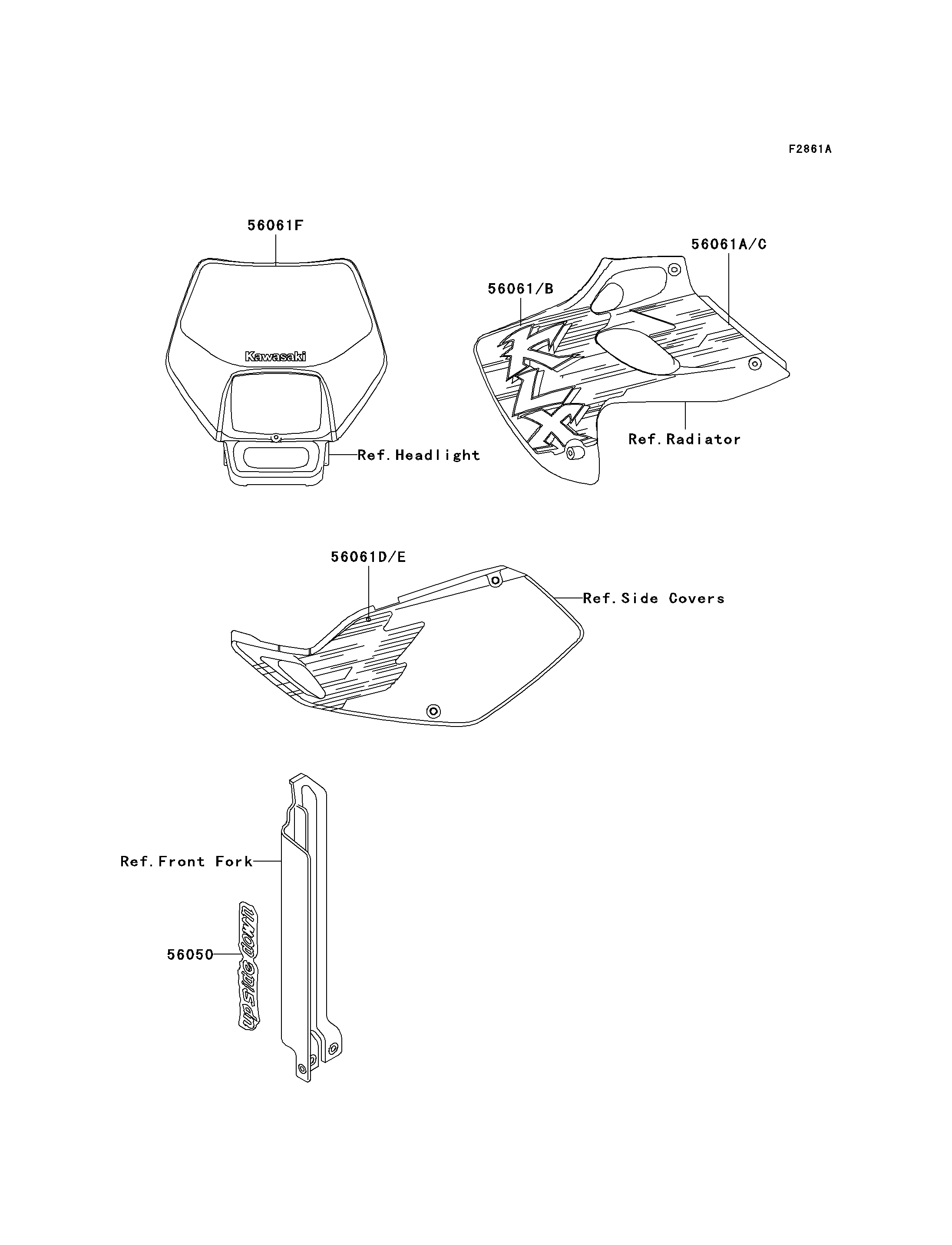

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,UP SIDE DOWN | 56050 | 56050-1835 | 2 | ||
| PATTERN,SHROUD,FR,LH | 56061 | 56061-1004 | 1 | ||
| PATTERN,SHROUD,RR,LH | 56061A | 56061-1005 | 1 | ||
| PATTERN,SHROUD,FR,RH | 56061B | 56061-1006 | 1 | ||
| PATTERN,SHROUD,RR,RH | 56061C | 56061-1007 | 1 | ||
| PATTERN,SIDE COVER,LH | 56061D | 56061-1008 | 1 | ||
| PATTERN,SIDE COVER,RH | 56061E | 56061-1009 | 1 | ||
| PATTERN,HEAD LAMP COVER | 56061F | 56061-1044 | 1 |
