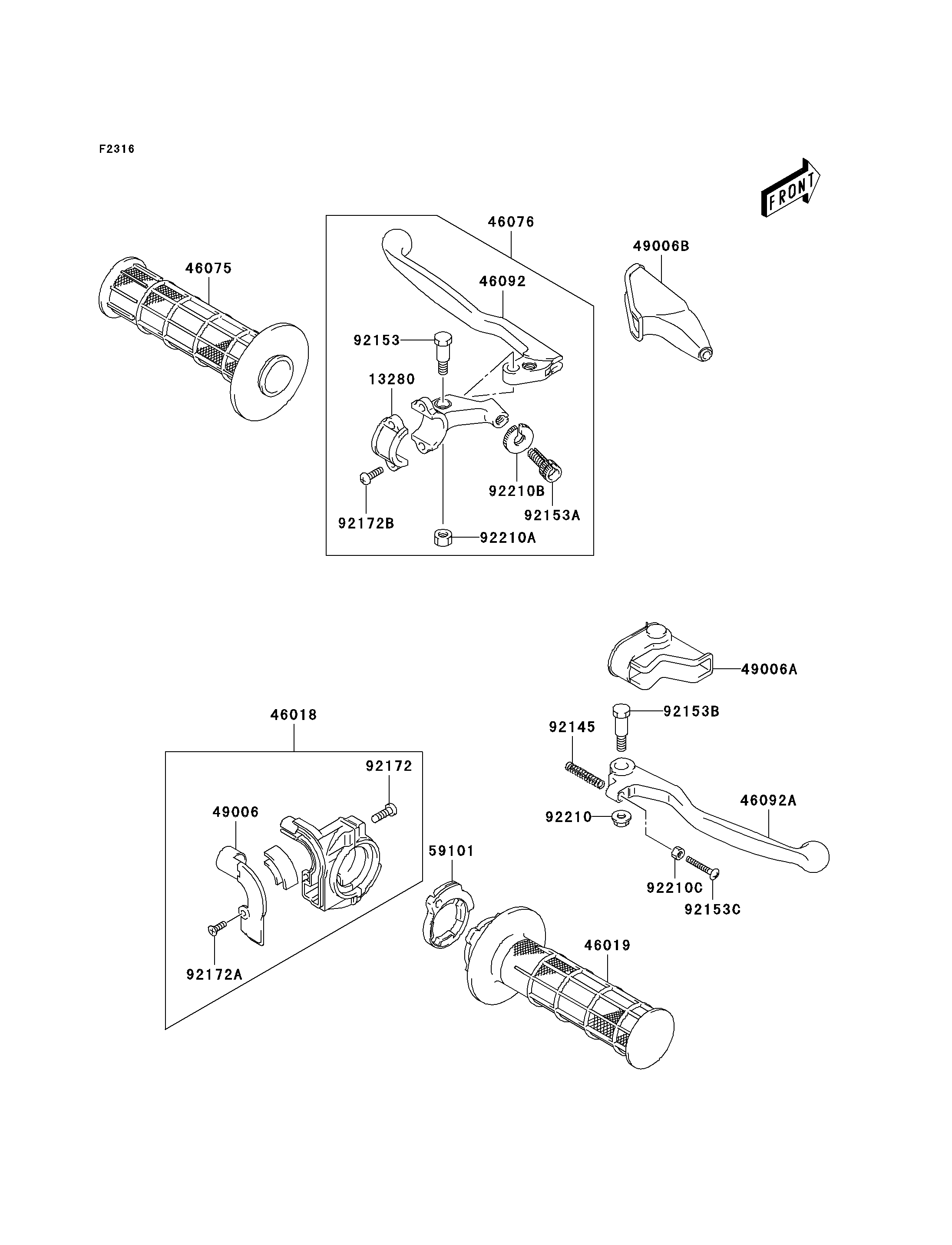

2006 KLX125L - Handle Lever

DOWNLOAD PDF
SELECT A NEW PART
13280
46018
46019
46075
46076
46092
46092A
49006
49006A
49006B
59101
92145
92153
92153A
92153B
92153C
92172
92172A
92172B
92210
92210A
92210B
92210C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,CLUTCH LEVER HOLDER 13280 13280-S013 1
GRIP-ASSY-THROTTLE 46018 46018-S001 1
GRIP-ASSY,THROTTLE 46019 46019-S003 1
GRIP 46075 46075-S003 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-S004 1
LEVER-GRIP,CLUTCH 46092 46092-S004 1
LEVER-GRIP,BRAKE 46092A 46092-S006 1
BOOT 49006 49006-S008 1
BOOT,BRAKE LEVER 49006A 49006-S010 1
BOOT 49006B 49006-S019 1
REEL,THROTTLE GRIP 59101 59101-S001 1
SPRING,RETURN 92145 92145-S052 1
BOLT 92153 92153-S156 1
BOLT,CABLE 92153A 92153-S157 1
BOLT 92153B 92153-S170 1
BOLT 92153C 92153-S171 1
SCREW 92172 92172-S097 2
SCREW 92172A 92172-S098 1
SCREW 92172B 92172-S100 2
NUT 92210 92210-S004 1
NUT 92210A 92210-S053 1
NUT 92210B 92210-S059 1
NUT 92210C 92210-S065 1
