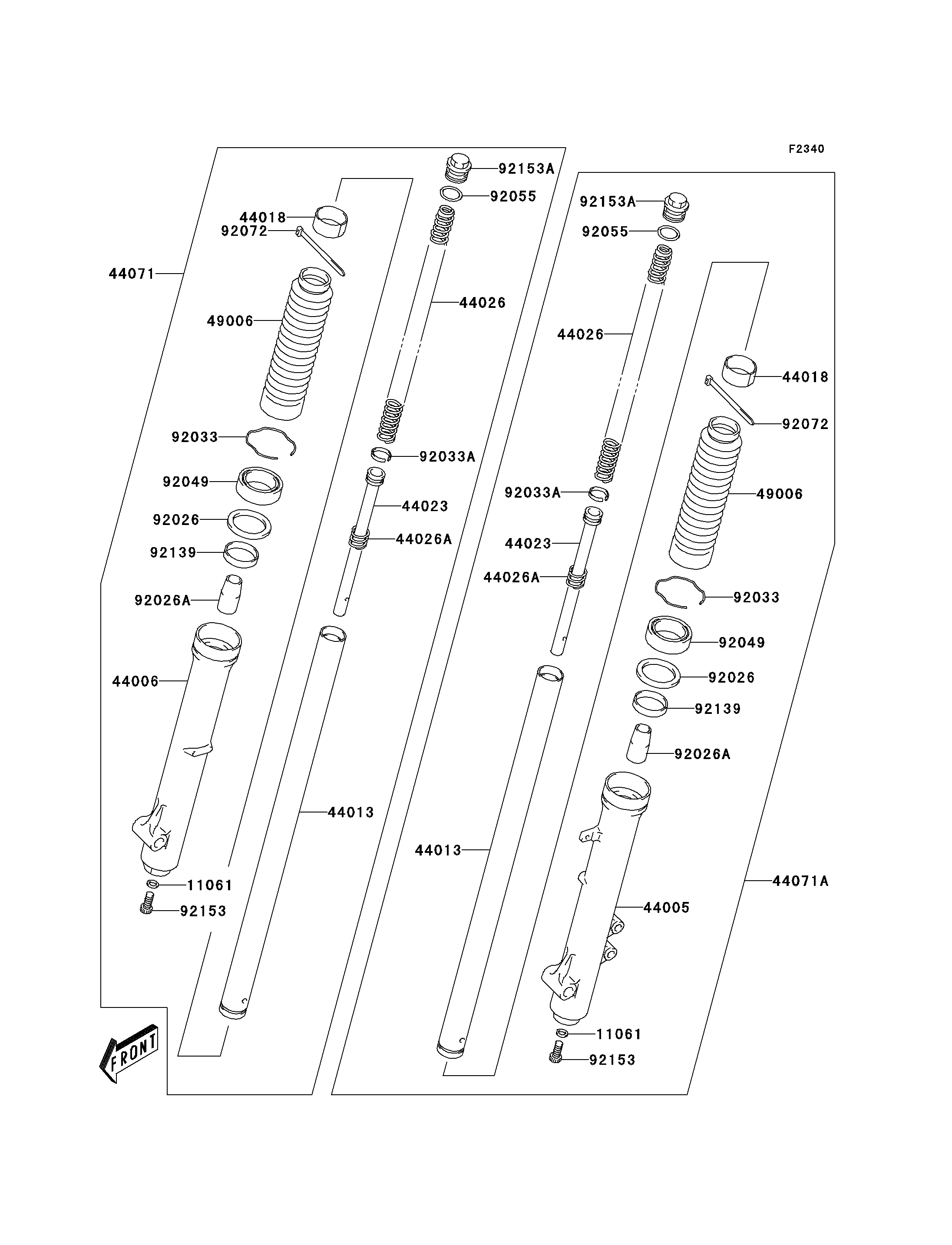

2004 KLX125L - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
44005
44006
44013
44013
44018
44018
44023
44023
44026
44026
44026A
44026A
44071
44071A
49006
49006
92026
92026
92026A
92026A
92033
92033
92033A
92033A
92049
92049
92055
92055
92072
92072
92139
92139
92153
92153
92153A
92153A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11061 11061-S019 2
PIPE-LEFT FORK OUTER 44005 44005-S005 1
PIPE-RIGHT FORK OUTER 44006 44006-S005 1
PIPE-FORK INNER 44013 44013-S003 2
PISTON-FORK 44018 44018-S002 2
CYLINDER-SET-FORK 44023 44023-S002 2
SPRING-FRONT FORK 44026 44026-S005 2
SPRING-FRONT FORK 44026A 44026-S006 2
DAMPER-ASSY,FRONT FORK,RH 44071 44071-S003 1
DAMPER-ASSY,FRONT FORK,LH 44071A 44071-S004 1
BOOT 49006 49006-S011 2
SPACER 92026 92026-S079 2
SPACER 92026A 92026-S080 2
RING-SNAP 92033 92033-S035 2
RING-SNAP 92033A 92033-S036 2
SEAL-OIL 92049 92049-S047 2
RING-O 92055 92055-S051 2
BAND 92072 92072-S005 2
BUSHING 92139 92139-S021 2
BOLT 92153 92153-S241 2
BOLT 92153A 92153-S242 2
