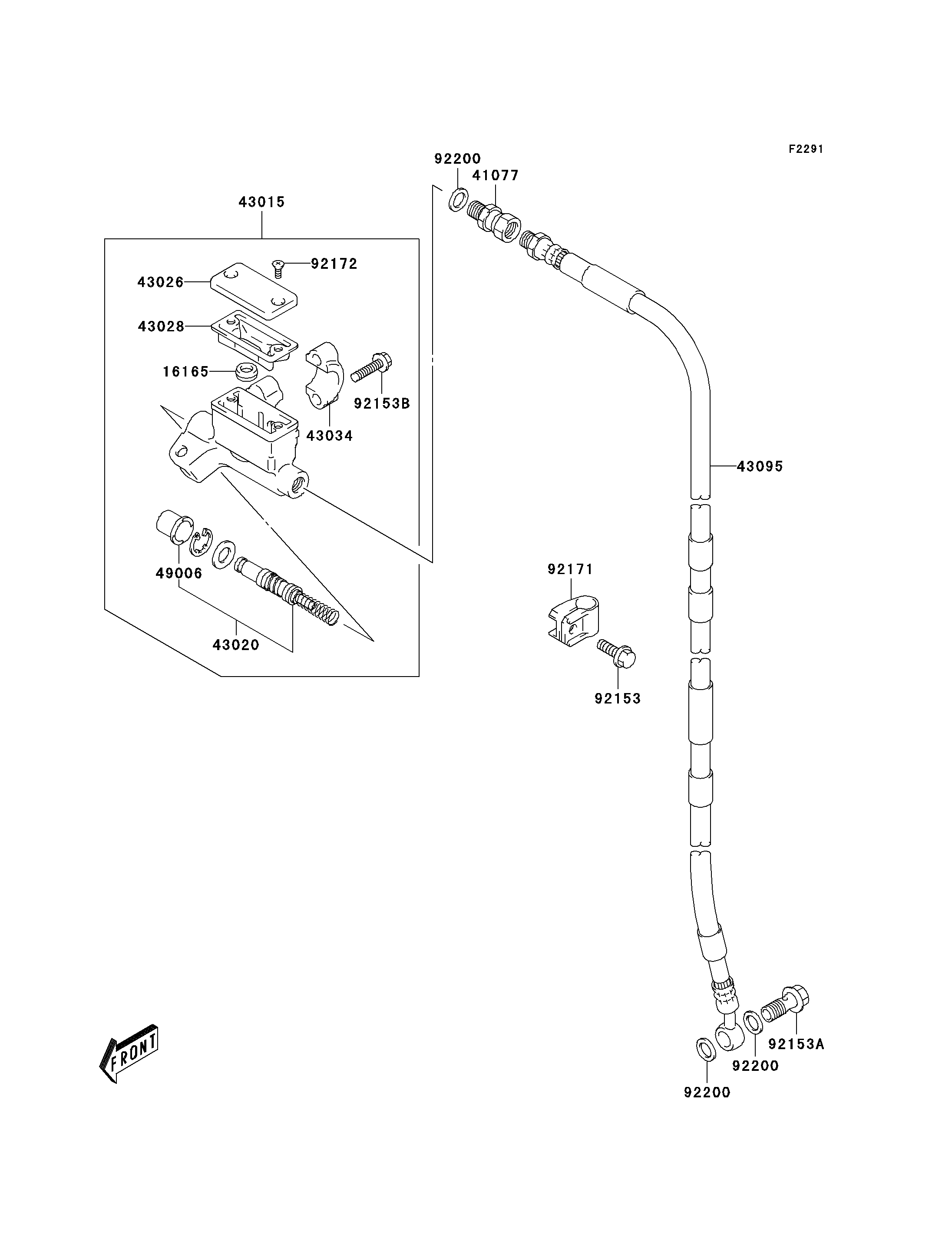

Parts Diagrams |
16165
41077
43015
43020
43026
43028
43034
43095
49006
92153
92153A
92153B
92171
92172
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SEPARATOR | 16165 | 16165-S005 | 1 | ||
| ADAPTER | 41077 | 41077-S002 | 1 | ||
| CYLINDER-ASSY-MASTER | 43015 | 43015-S007 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-S003 | 1 | ||
| CAP-BRAKE | 43026 | 43026-S003 | 1 | ||
| DIAPHRAGM | 43028 | 43028-S006 | 1 | ||
| HOLDER-BRAKE | 43034 | 43034-S003 | 1 | ||
| HOSE-BRAKE | 43095 | 43095-S006 | 1 | ||
| BOOT | 49006 | 49006-S004 | 1 | ||
| BOLT | 92153 | 92153-S002 | 1 | ||
| BOLT | 92153A | 92153-S053 | 1 | ||
| BOLT | 92153B | 92153-S172 | 2 | ||
| CLAMP,FRONT BRAKE HOSE | 92171 | 92171-S057 | 1 | ||
| SCREW,RESERVOIR CAP | 92172 | 92172-S054 | 2 | ||
| WASHER,10X15X1.5 | 92200 | 92200-S014 | 3 |
| SEPARATOR | |
| REF # | 16165 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ADAPTER | |
| REF # | 41077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER-ASSY-MASTER | |
| REF # | 43015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-COMP-BRAKE | |
| REF # | 43020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-BRAKE | |
| REF # | 43026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM | |
| REF # | 43028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-BRAKE | |
| REF # | 43034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE | |
| REF # | 43095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,FRONT BRAKE HOSE | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,RESERVOIR CAP | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,10X15X1.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
