Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

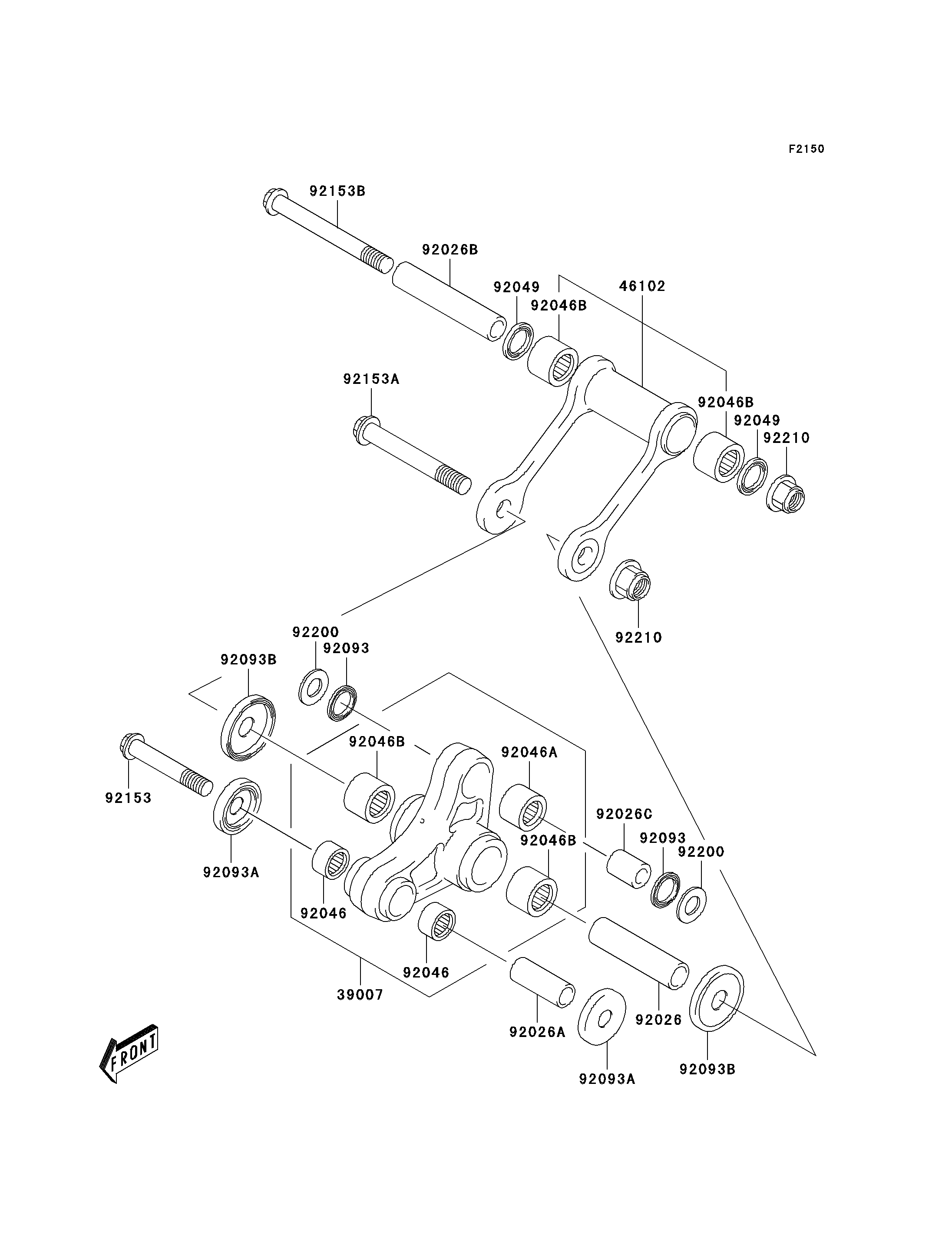

39007
46102
92026
92026A
92026B
92026C
92046
92046
92046A
92046B
92046B
92046B
92046B
92049
92049
92093
92093
92093A
92093A
92093B
92093B
92153
92153A
92153B
92200
92200
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ARM-SUSP,REAR CUSHION | 39007 | 39007-S002 | 1 | ||
| ROD,REAR CUSHION | 46102 | 46102-S001 | 1 | ||
| SPACER,REAR CUSHION | 92026 | 92026-S040 | 1 | ||
| SPACER,REAR CUSHION | 92026A | 92026-S044 | 1 | ||
| SPACER,REAR CUSHION ROD | 92026B | 92026-S045 | 1 | ||
| SPACER,REAR CUSHION | 92026C | 92026-S046 | 2 | ||
| BEARING-NEEDLE,14X20X12 | 92046 | 92046-S008 | 2 | ||
| BEARING-NEEDLE,16X22X12 | 92046A | 92046-S009 | 1 | ||
| BEARING-NEEDLE,17X24X20 | 92046B | 92046-S010 | 4 | ||
| SEAL-OIL,REAR CUSHION ROD | 92049 | 92049-S024 | 2 | ||
| SEAL,REAR CUSHION | 92093 | 92093-S010 | 2 | ||
| SEAL,REAR CUSHION | 92093A | 92093-S013 | 2 | ||
| SEAL,REAR CUSHION | 92093B | 92093-S014 | 2 | ||
| BOLT,10X64 | 92153 | 92153-S163 | 1 | ||
| BOLT,REAR CUSHION | 92153A | 92153-S180 | 1 | ||
| BOLT,REAR CUSHION | 92153B | 92153-S181 | 1 | ||
| WASHER | 92200 | 92200-S081 | 2 | ||
| NUT | 92210 | 92210-S007 | 2 |
| ARM-SUSP,REAR CUSHION | |
| REF # | 39007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,REAR CUSHION | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,REAR CUSHION | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,REAR CUSHION | |
| REF # | 92026A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,REAR CUSHION ROD | |
| REF # | 92026B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,REAR CUSHION | |
| REF # | 92026C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,14X20X12 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,16X22X12 | |
| REF # | 92046A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,17X24X20 | |
| REF # | 92046B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,REAR CUSHION ROD | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL,REAR CUSHION | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL,REAR CUSHION | |
| REF # | 92093A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL,REAR CUSHION | |
| REF # | 92093B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X64 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,REAR CUSHION | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,REAR CUSHION | |
| REF # | 92153B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
