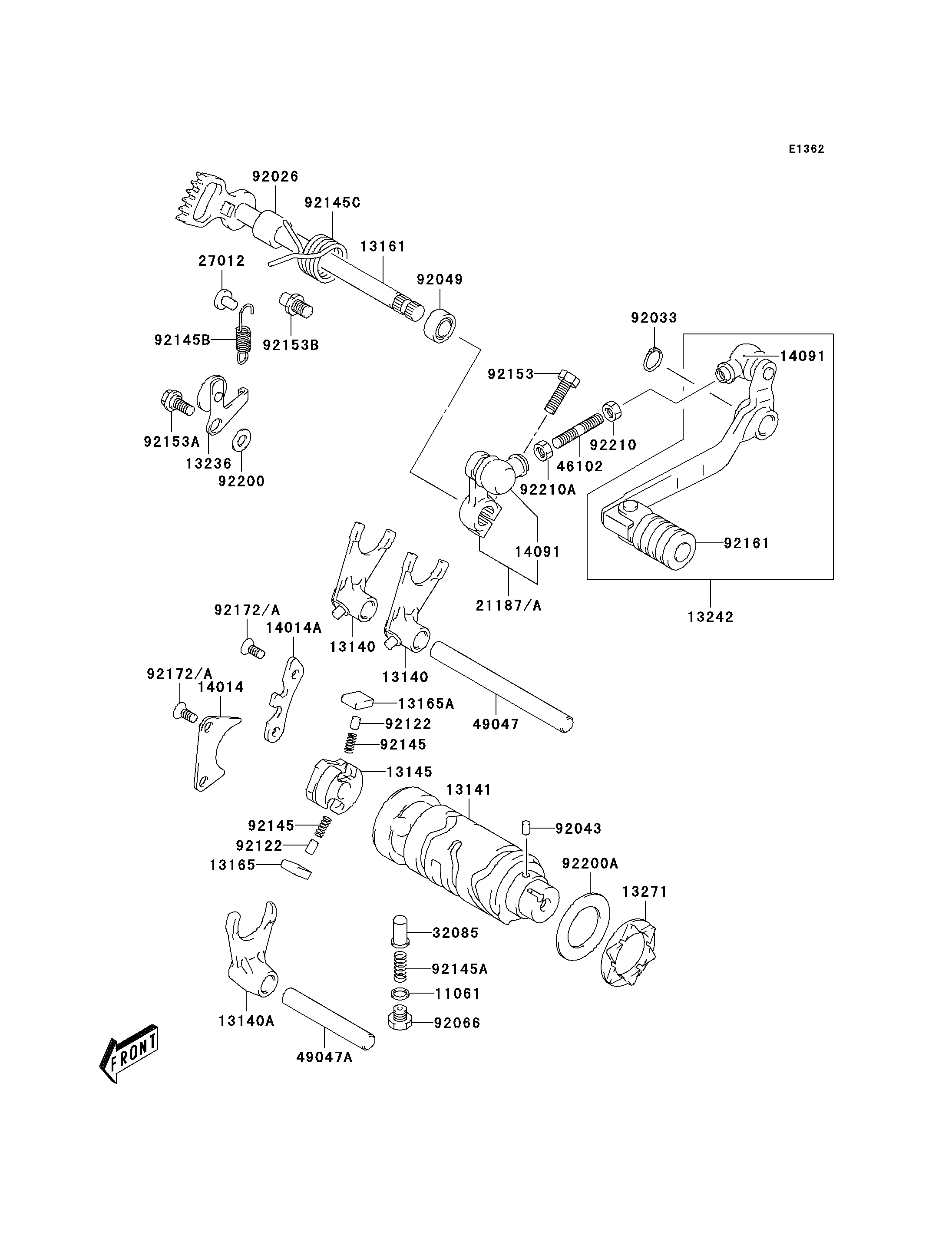

2004 KLX125L - Gear Change Drum/Shift Fork(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
13140
13140
13140A
13141
13145
13161
13165
13165A
13236
13242
13271
14014
14014A
14091
14091
21187
27012
32085
46102
49047
49047A
92026
92033
92043
92049
92066
92122
92122
92145
92145
92145A
92145B
92145C
92153
92153A
92153B
92161
92172A
92172A
92200
92200A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,13.8X18.8X0.4 11061 11061-S006 1
FORK-SHIFT 13140 13140-S003 2
FORK-SHIFT 13140A 13140-S004 1
DRUM-CHANGE 13141 13141-S003 1
CAM-CHANGE DRUM 13145 13145-S002 1
LEVER-COMP-CHANGE SHAFT 13161 13161-S002 1
PAWL 13165 13165-S003 1
PAWL 13165A 13165-S004 1
LEVER-COMP 13236 13236-S002 1
LEVER-ASSY-CHANGE 13242 13242-S001 1
PLATE,GEAR SHIFT CAM 13271 13271-S021 1
PLATE-POSITION 14014 14014-S002 1
PLATE-POSITION 14014A 14014-S003 1
COVER 14091 14091-S064 2
ARM-ASSY 21187 21187-S003 1
HOOK 27012 27012-S002 1
STOPPER,SHIFT CAM 32085 32085-S004 1
ROD,GEAR SHIFT LINK 46102 46102-S003 1
ROD-SHIFT,L=109 49047 49047-S001 1
ROD-SHIFT 49047A 49047-S002 1
SPACER,12X20X15.3 92026 92026-S037 1
RING-SNAP 92033 92033-S023 1
PIN 92043 92043-S020 1
SEAL-OIL,12X22X9 92049 92049-S020 1
PLUG 92066 92066-S016 1
ROLLER,5X8 92122 92122-S005 2
SPRING 92145 92145-S037 2
SPRING 92145A 92145-S039 1
SPRING 92145B 92145-S043 1
SPRING 92145C 92145-S044 1
BOLT 92153 92153-S127 1
BOLT,6X14.6 92153A 92153-S136 1
BOLT 92153B 92153-S139 1
DAMPER,GEAR SHIFT PEDAL 92161 92161-S057 1
SCREW 92172A 92172-S112 4
WASHER 92200 92200-S051 1
WASHER,25X40X1.0 92200A 92200-S064 1
NUT 92210 92210-S093 1
NUT 92210A 92210-S095 1
