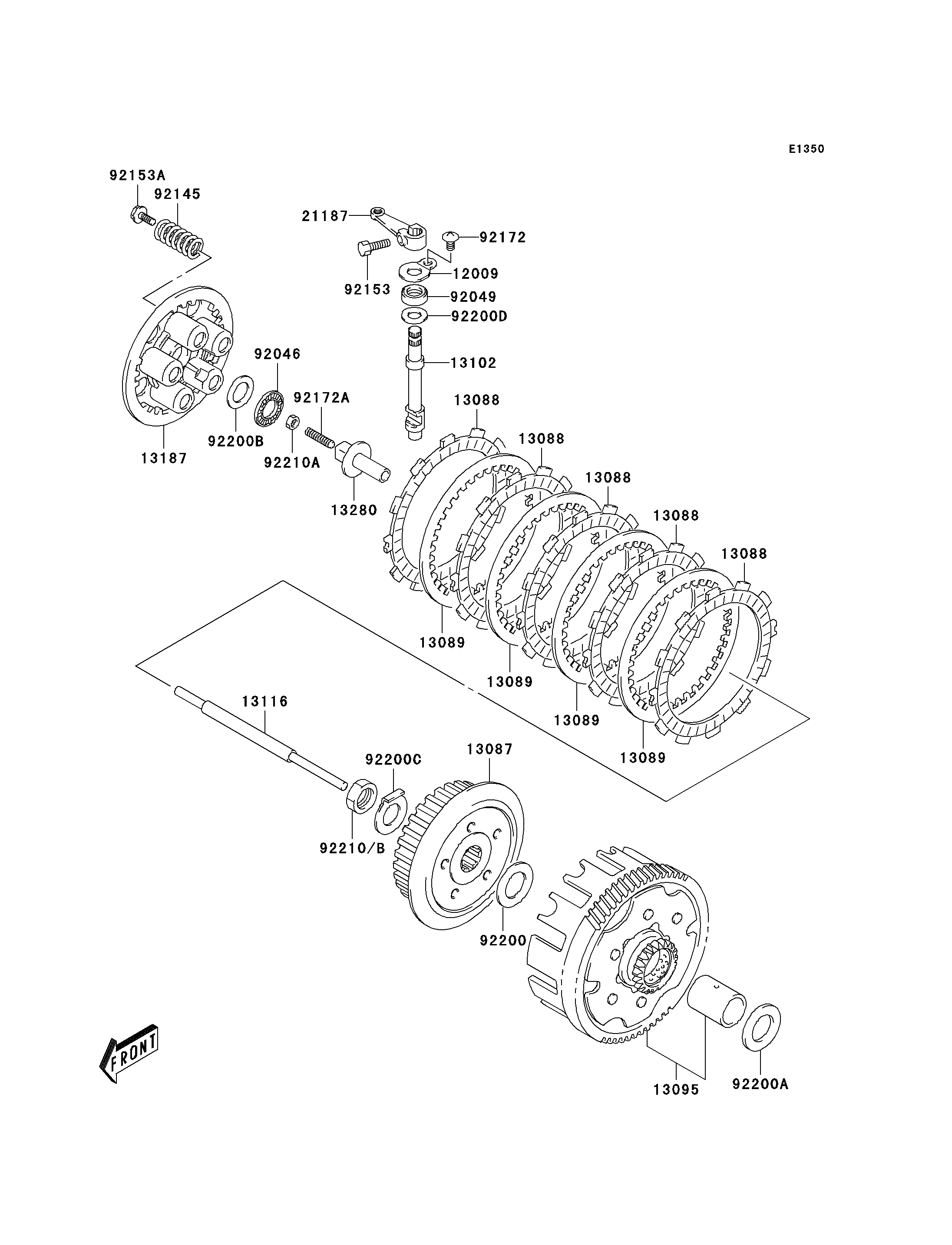

Parts Diagrams |
12009
13087
13088
13088
13088
13088
13088
13089
13089
13089
13089
13095
13102
13116
13187
13280
21187
92046
92049
92145
92153
92153A
92172
92172A
92200
92200A
92200B
92200C
92200D
92210
92210A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
RETAINER-VALVE SPRING | 12009 | 12009-S003 | 1 | ||
HUB-CLUTCH | 13087 | 13087-S001 | 1 | ||
PLATE-FRICTION | 13088 | 13088-S001 | 5 | ||
PLATE-CLUTCH | 13089 | 13089-S001 | 4 | ||
HOUSING-COMP-CLUTCH | 13095 | 13095-S003 | 1 | ||
RELEASE-COMP-CLUTCH | 13102 | 13102-S002 | 1 | ||
ROD-PUSH | 13116 | 13116-S002 | 1 | ||
PLATE-CLUTCH OPERATING | 13187 | 13187-S002 | 1 | ||
HOLDER,CLUTCH PUSH | 13280 | 13280-S012 | 1 | ||
ARM-ASSY,CLUTCH RELEASE | 21187 | 21187-S001 | 1 | ||
BEARING-NEEDLE,15X28X2 | 92046 | 92046-S006 | 1 | ||
SEAL-OIL,10X20X6 | 92049 | 92049-S018 | 1 | ||
SPRING | 92145 | 92145-S041 | 5 | ||
BOLT | 92153 | 92153-S126 | 1 | ||
BOLT,5X16 | 92153A | 92153-S137 | 5 | ||
SCREW | 92172 | 92172-S092 | 1 | ||
SCREW | 92172A | 92172-S093 | 1 | ||
WASHER | 92200 | 92200-S025 | 1 | ||
WASHER | 92200A | 92200-S055 | 1 | ||
WASHER,15.5X28X1 | 92200B | 92200-S056 | 1 | ||
WASHER | 92200C | 92200-S060 | 1 | ||
WASHER,10X20X1.0 | 92200D | 92200-S061 | 1 | ||
NUT | 92210 | 92210-S008 | 1 | ||
NUT,6X3.6 | 92210A | 92210-S047 | 1 |
RETAINER-VALVE SPRING | |
REF # | 12009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HUB-CLUTCH | |
REF # | 13087 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-FRICTION | |
REF # | 13088 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
PLATE-CLUTCH | |
REF # | 13089 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
HOUSING-COMP-CLUTCH | |
REF # | 13095 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RELEASE-COMP-CLUTCH | |
REF # | 13102 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-PUSH | |
REF # | 13116 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-CLUTCH OPERATING | |
REF # | 13187 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,CLUTCH PUSH | |
REF # | 13280 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-ASSY,CLUTCH RELEASE | |
REF # | 21187 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,15X28X2 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,10X20X6 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,5X16 | |
REF # | 92153A |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92172 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92172A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,15.5X28X1 | |
REF # | 92200B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,10X20X1.0 | |
REF # | 92200D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,6X3.6 | |
REF # | 92210A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
