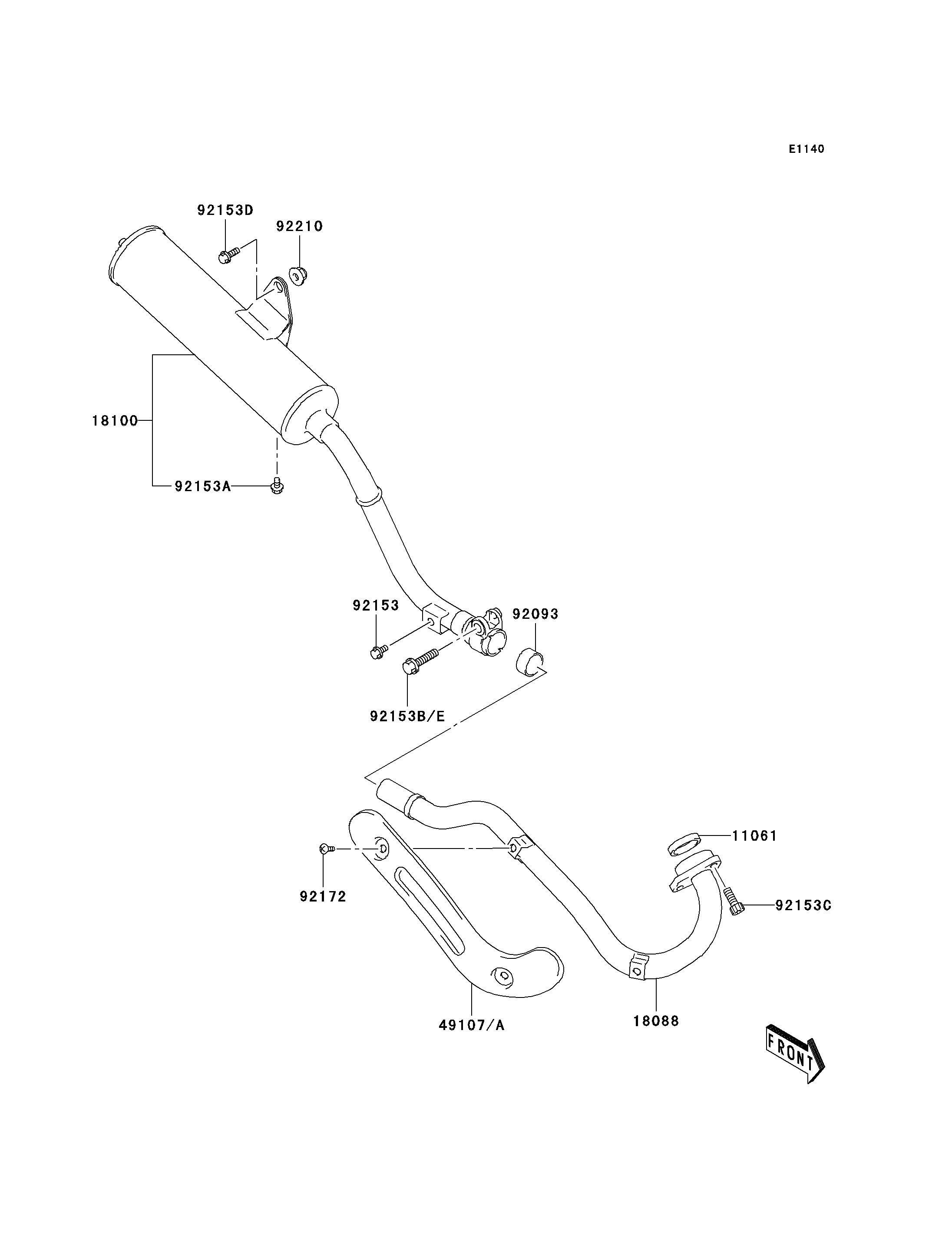

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE 11061 11061-S028 1
PIPE-EXHAUST 18088 18088-S003 1
BODY-ASSY-MUFFLER 18100 18100-S002 1
COVER-EXHAUST PIPE 49107 49107-S001 1
SEAL 92093 92093-S007 1
BOLT 92153 92153-S015 1
BOLT 92153A 92153-S017 1
BOLT 92153C 92153-S134 2
BOLT,8X23 92153D 92153-S149 1
BOLT 92153E 92153-S372 1
SCREW,6X10 92172 92172-S094 2
NUT 92210 92210-S029 1
