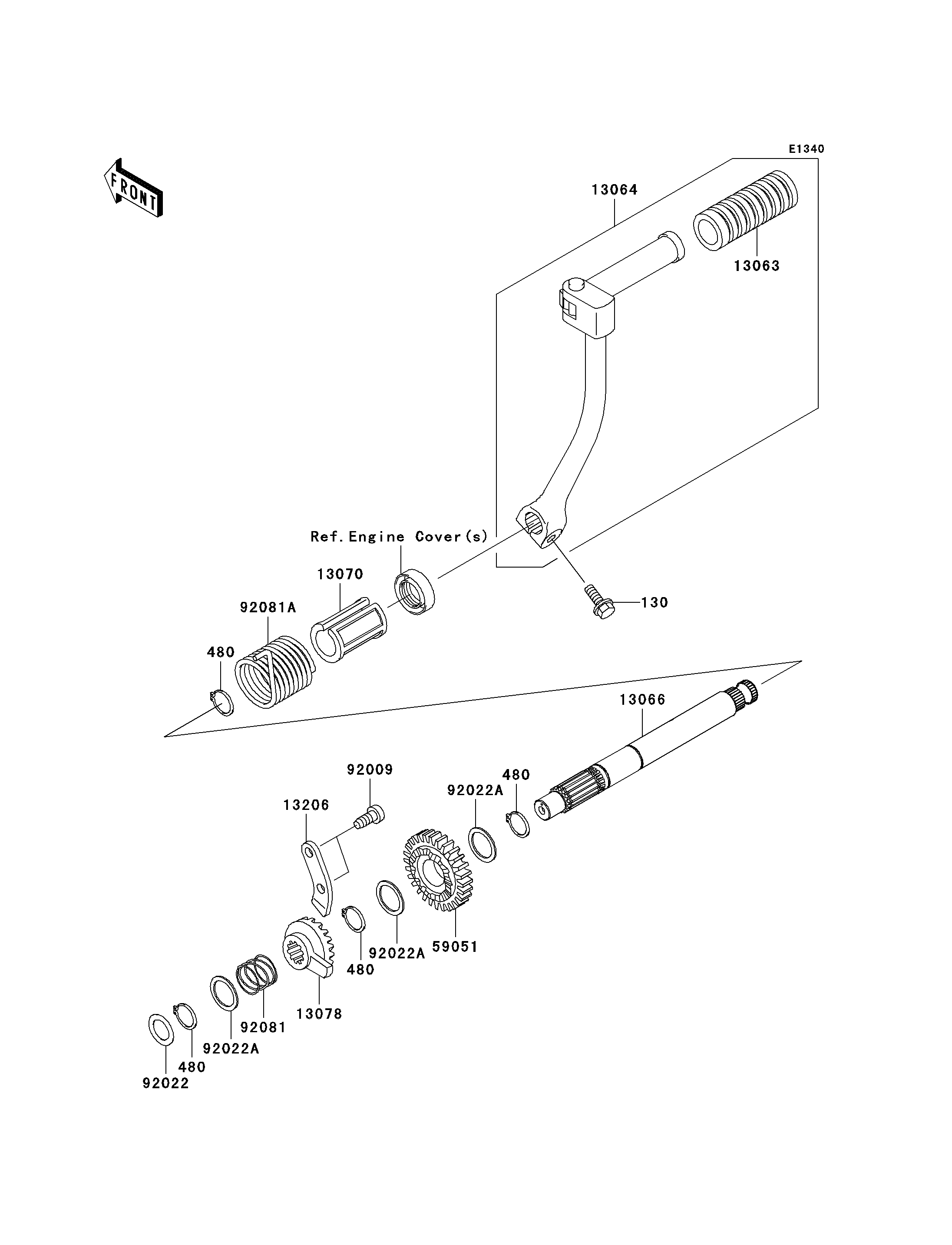

2002 KLX110 - Kickstarter Mechanism(A1)
130
480
480
480
480
13063
13064
13066
13070
13078
13206
59051
92009
92022
92022A
92022A
92022A
92081
92081A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130P0622 | 1 | ||
| CIRCLIP-TYPE-C,16MM | 480 | 480J1600 | 4 | ||
| DAMPER,PEDAL | 13063 | 13063-002 | 1 | ||
| LEVER-ASSY-KICK | 13064 | 13064-1211 | 1 | ||
| SHAFT-KICK | 13066 | 13066-1089 | 1 | ||
| GUIDE,KICK SHAFT | 13070 | 13070-1035 | 1 | ||
| RATCHET | 13078 | 13078-1052 | 1 | ||
| GUIDE-KICK | 13206 | 13206-1006 | 1 | ||
| GEAR-SPUR,KICKSTARTER,23T | 59051 | 59051-1385 | 1 | ||
| SCREW,TAPPING | 92009 | 92009-1104 | 2 | ||
| WASHER,13.2X20X0.5 | 92022 | 92022-1224 | 1 | ||
| WASHER,16.8X22X0.5 | 92022A | 92022-315 | 3 | ||
| SPRING,RATCHET | 92081 | 92081-122 | 1 | ||
| SPRING,KICK STARTER | 92081A | 92081-1276 | 1 |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-C,16MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,PEDAL | |
| REF # | 13063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-ASSY-KICK | |
| REF # | 13064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-KICK | |
| REF # | 13066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,KICK SHAFT | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RATCHET | |
| REF # | 13078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-KICK | |
| REF # | 13206 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,KICKSTARTER,23T | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,13.2X20X0.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,16.8X22X0.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SPRING,RATCHET | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,KICK STARTER | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
