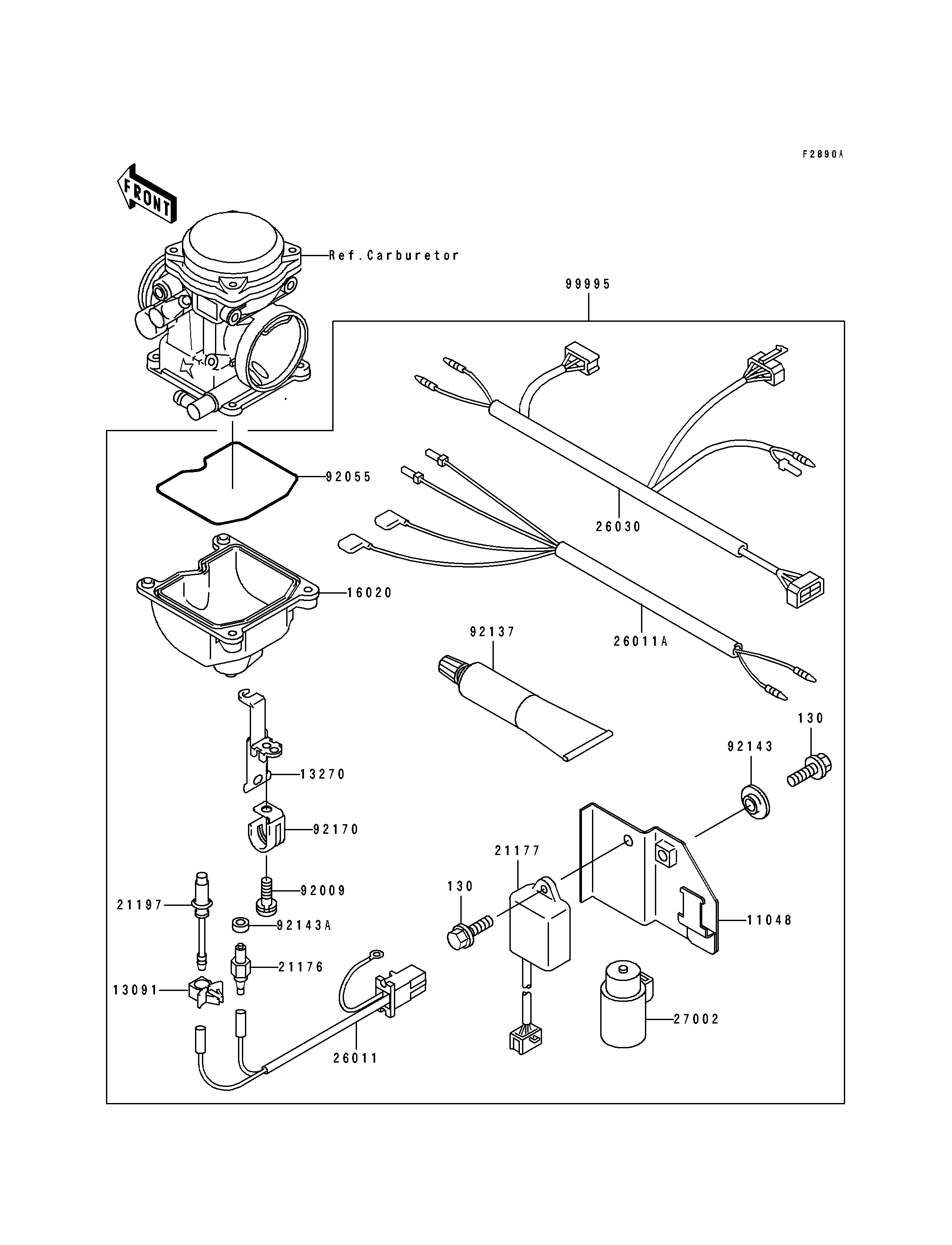

1993 Bayou 400 4X4 - Optional Parts(Carburetor)(KLF400-B1/B2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,ELECTRIC | 11048 | 11048-1966 | 1 | CN | |
| HOLDER,HEATER | 13091 | 13091-1866 | 1 | CN | |
| PLATE,HEATER STAY | 13270 | 13270-1145 | 1 | CN | |
| CHAMBER-FLOAT | 16020 | 16020-1076 | 1 | CN | |
| SENSOR | 21176 | 21176-1069 | 1 | CN | |
| CONTROLLER | 21177 | 21177-1055 | 1 | CN | |
| HEATER | 21197 | 21197-1003 | 1 | CN | |
| WIRE-LEAD | 26011 | 26011-1606 | 1 | CN | |
| WIRE-LEAD | 26011A | 26011-1614 | 1 | CN | |
| HARNESS,RR | 26030 | 26030-1328 | 1 | CN | |
| RELAY-ASSY | 27002 | 27002-1051 | 1 | CN | |
| SCREW | 92009 | 92009-1706 | 1 | CN | |
| RING-O,FLOAT CHAMBER | 92055 | 92055-1518 | 1 | CN | |
| SILICONE COMPOUND | 92137 | 92137-1003 | 1 | CN | |
| COLLAR,L=5 | 92143 | 92143-1087 | 1 | CN | |
| COLLAR | 92143A | 92143-1747 | 1 | CN | |
| CLAMP,HARNESS | 92170 | 92170-1396 | 1 | CN | |
| SET,KLF400-B2 '94 | 99995 | 99995-1374 | 1 | CN | |
| BOLT-FLANGED,6X14,BLACK | 130 | 130J0614 | 2 | CN |
