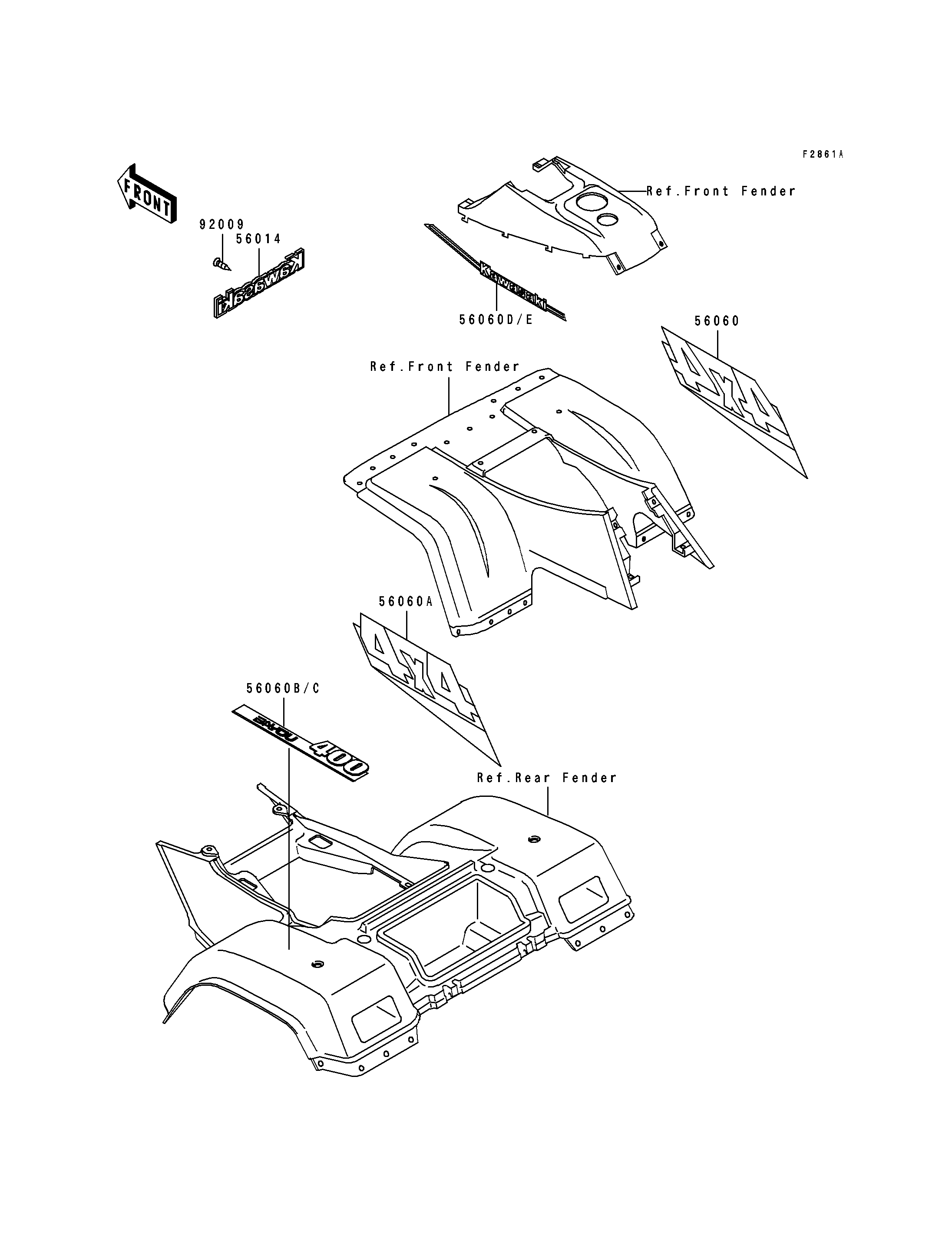

1993 Bayou 400 4X4 - Decals(Gray)(KLF400-B1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,KAWASAKI | 56014 | 56014-1278 | 1 | ||
| PATTERN,FR FENDER,RH | 56060 | 56060-1162 | 1 | ||
| PATTERN,FR FENDER,LH | 56060A | 56060-1163 | 1 | ||
| PATTERN,RR FENDER,LH | 56060B | 56060-1164 | 1 | ||
| PATTERN,RR FENDER,RH | 56060C | 56060-1165 | 1 | ||
| PATTERN,FR FENDER COVER,RR,LH | 56060D | 56060-1166 | 1 | ||
| PATTERN,FR FENDER COVER,RR,RH | 56060E | 56060-1167 | 1 | ||
| SCREW,TAPPING,3X10 | 92009 | 92009-1680 | 2 |
| EMBLEM,KAWASAKI | |
| REF # | 56014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56060A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,LH | |
| REF # | 56060B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,RH | |
| REF # | 56060C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER COVER,RR,LH | |
| REF # | 56060D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER COVER,RR,RH | |
| REF # | 56060E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,3X10 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
