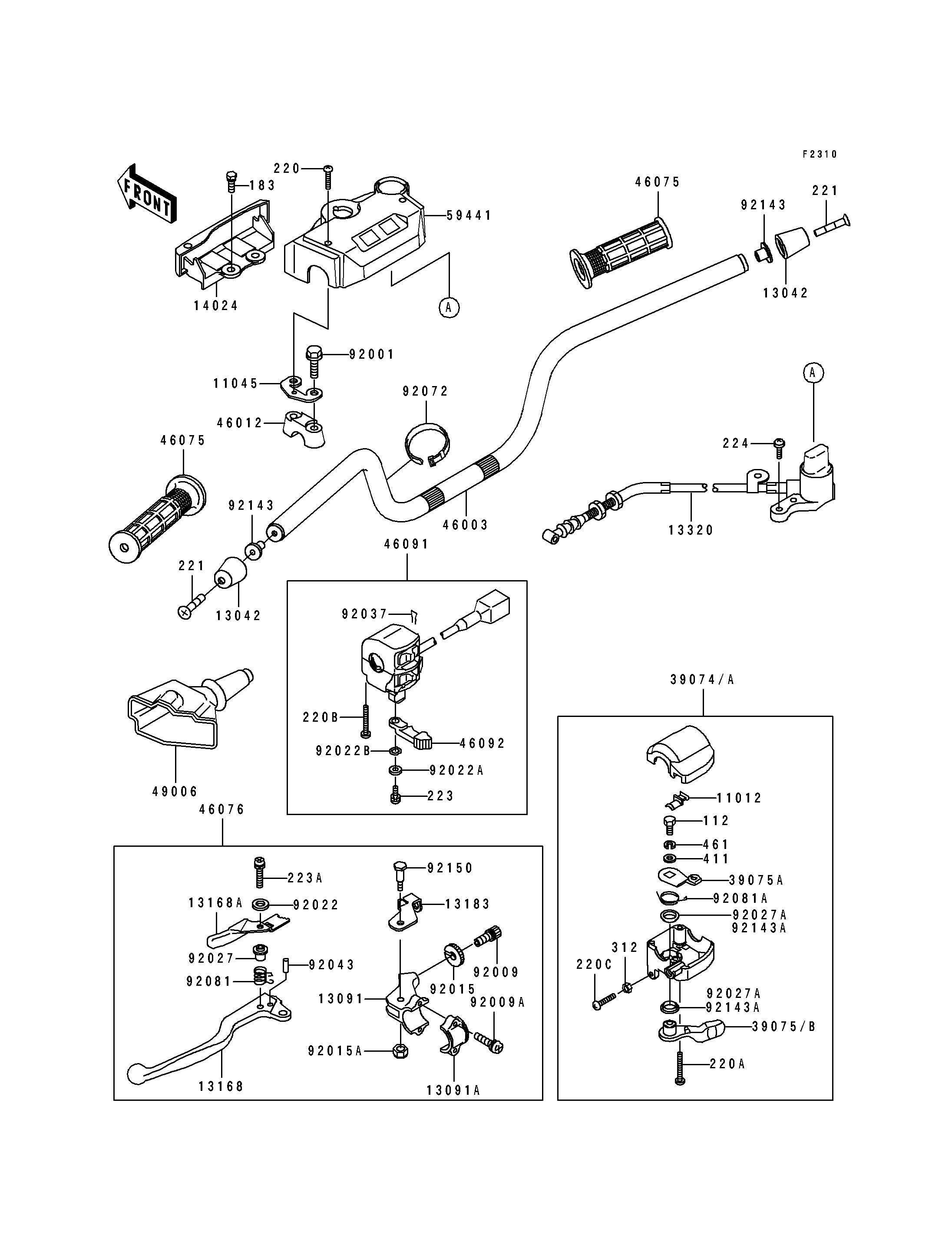

1994 Bayou 400 4X4 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1425 1
BRACKET,HANDLE COVER 11045 11045-1925 2
WEIGHT,HANDLE 13042 13042-1005 2
HOLDER,LEVER 13091 13091-1703 1
HOLDER 13091A 13091-1704 1
LEVER 13168 13168-1449 1
LEVER,LOCK 13168A 13168-1450 1
PLATE,LOCK 13183 13183-1609 1
LEVER-ASSY,REVERSE 13320 13320-1008 1
COVER,HANDLE 14024 14024-1720 1 US
LEVER-ASSY-THROTTLE 39074 39074-1052 1
LEVER-THROTTLE 39075 39075-1053 1
LEVER-THROTTLE,ARM 39075A 39075-1054 1
HANDLE 46003 46003-1365 1
HOLDER-HANDLE 46012 46012-1168 2
GRIP 46075 46075-1056 2
LEVER-ASSY-GRIP,LH 46076 46076-1178 1
HOUSING-ASSY-CONTROL,LH 46091 46091-1462 1
LEVER-GRIP,CHOKE 46092 46092-1149 1
BOOT,CLUTCH LEVER 49006 49006-1057 1
COVER-HANDLE 59441 59441-1077 1
BOLT,FLANGED,8X58 92001 92001-1005 4
SCREW,CABLE ADJUST,8MM 92009 92009-1435 1
SCREW 92009A 92009-1627 2
NUT,CABLE ADJUST LOCK 92015 92015-1596 1
NUT 92015A 92015-1829 1
WASHER,4MM 92022 92022-1647 1
WASHER,5MM 92022A 92022-1837 1
WASHER,WAVE,5MM 92022B 92022-1838 1
COLLAR,RETURN SPRING 92027 92027-1336 1
COLLAR 92027A 92027-1982 2
CLAMP,CLIP 92037 92037-1836 1
PIN,SPRING,3X16 92043 92043-1268 1
BAND,L=149 92072 92072-031 1
SPRING,LOCK RETURN 92081 92081-1358 1
SPRING 92081A 92081-1685 1
COLLAR,L=9.6 92143 92143-1016 2
BOLT 92150 92150-1420 1
BOLT-UPSET 112 112D0614 1
BOLT-UPSET-WS-SMALL 183 183J0814 2 US
SCREW-PAN-CROS,4X20 220 220C0420 2
SCREW-PAN-CROS 220A 220C0530 2
SCREW-PAN-CROS 220B 220C0535 2
SCREW-PAN-CROS,6X30,BLACK 220C 220C0630 1
SCREW-CSK-CROS 221 221C0650 2
SCREW-PAN-WS-CROS 223 223C0512 1
SCREW-PAN-WS-CROS 223A 223D0420 1
SCREW-PAN-WP-CROS,5X20 224 224B0520 2
NUT-HEX,6MM,BLACK 312 312C0600 1
WASHER-PLAIN,6MM 411 411E0600 1
WASHER-SPRING 461 461L0600 1
