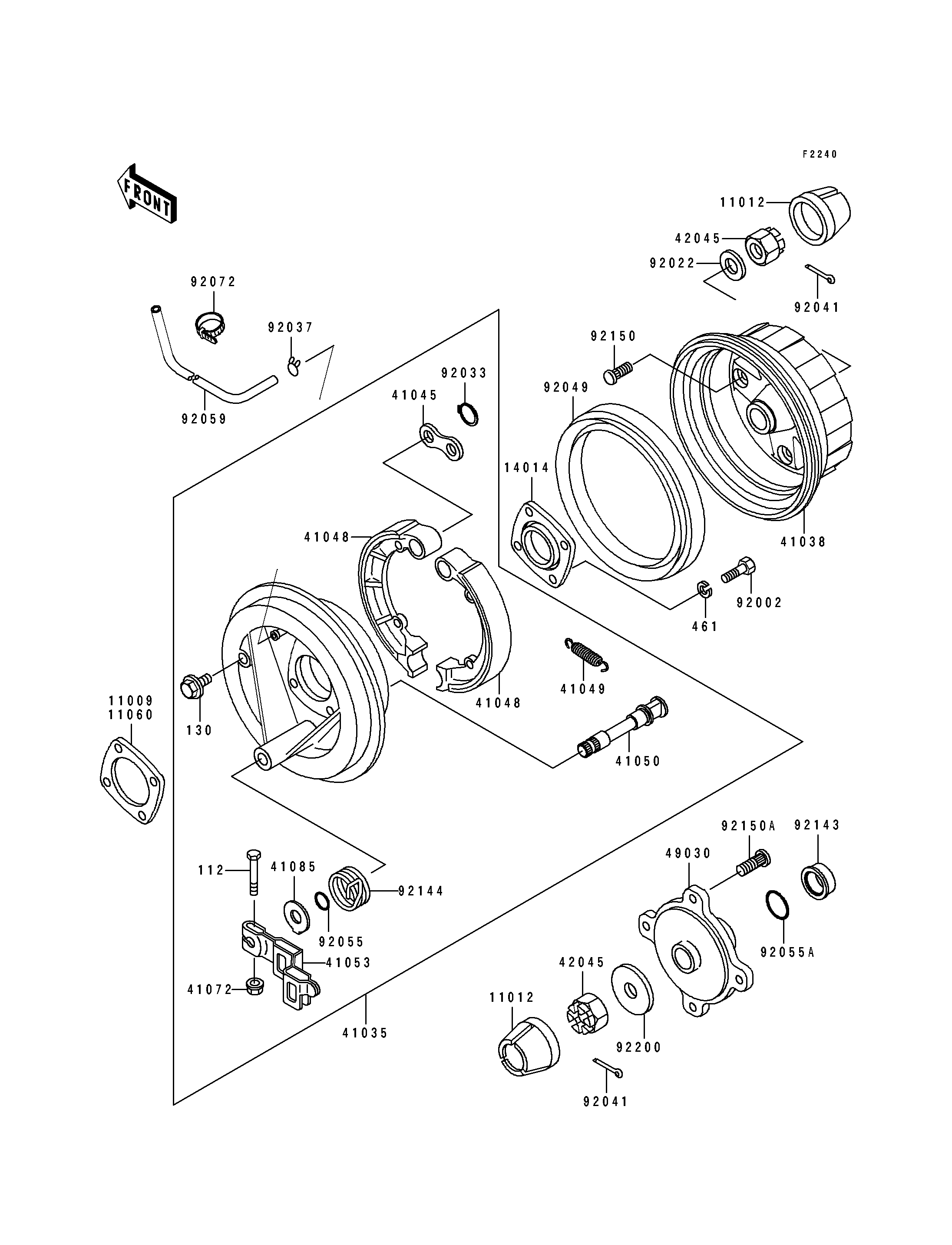

1995 Bayou 400 4X4 - Rear Hub

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,WHEEL 11012 11012-1519 2
GASKET 11060 11060-1561 1
PLATE-POSITION 14014 14014-1072 1
PANEL-ASSY-BRAKE,RR,RH 41035 41035-1305 1
DRUM,REAR BRAKE 41038 41038-1202 1
WASHER 41045 41045-006 1
SHOE-BRAKE 41048 41048-1082 2
SPRING,BRAKE SHOE 41049 41049-012 2
CAM-BRAKE 41050 41050-1077 1
LEVER-BRAKE CAM 41053 41053-1078 1
NUT,6MM 41072 41072-007 1
INDICATOR 41085 41085-1062 1
NUT,CASTLE,18MM 42045 42045-018 2
HUB,RR,LH 49030 49030-1111 1
BOLT,10X30 92002 92002-1918 4
WASHER,18.3X34X4.5 92022 92022-1658 1
RING-SNAP,15MM 92033 92033-1250 2
CLAMP,TUBE 92037 92037-147 1
COTTER,4.0X35 92041 92041-1053 2
SEAL-OIL,SD07 190 225 16 NS 92049 92049-1312 1
RING-O,ID=16.4 92055 92055-1376 1
RING-O,ID=24.5 92055A 92055-1459 1
TUBE,4.7X9.5X1240 92059 92059-1968 1
BAND,L=188 92072 92072-1239 3
COLLAR 92143 92143-1585 1
SPRING 92144 92144-1365 1
BOLT,10MM 92150 92150-1110 4
BOLT 92150A 92150-1289 4
WASHER,18.5X52X4.5 92200 92200-1139 1
BOLT-UPSET 112 112H0640 1
BOLT-FLANGED,10X12 130 130B1012 1
WASHER-SPRING,10MM 461 461F1000 4
