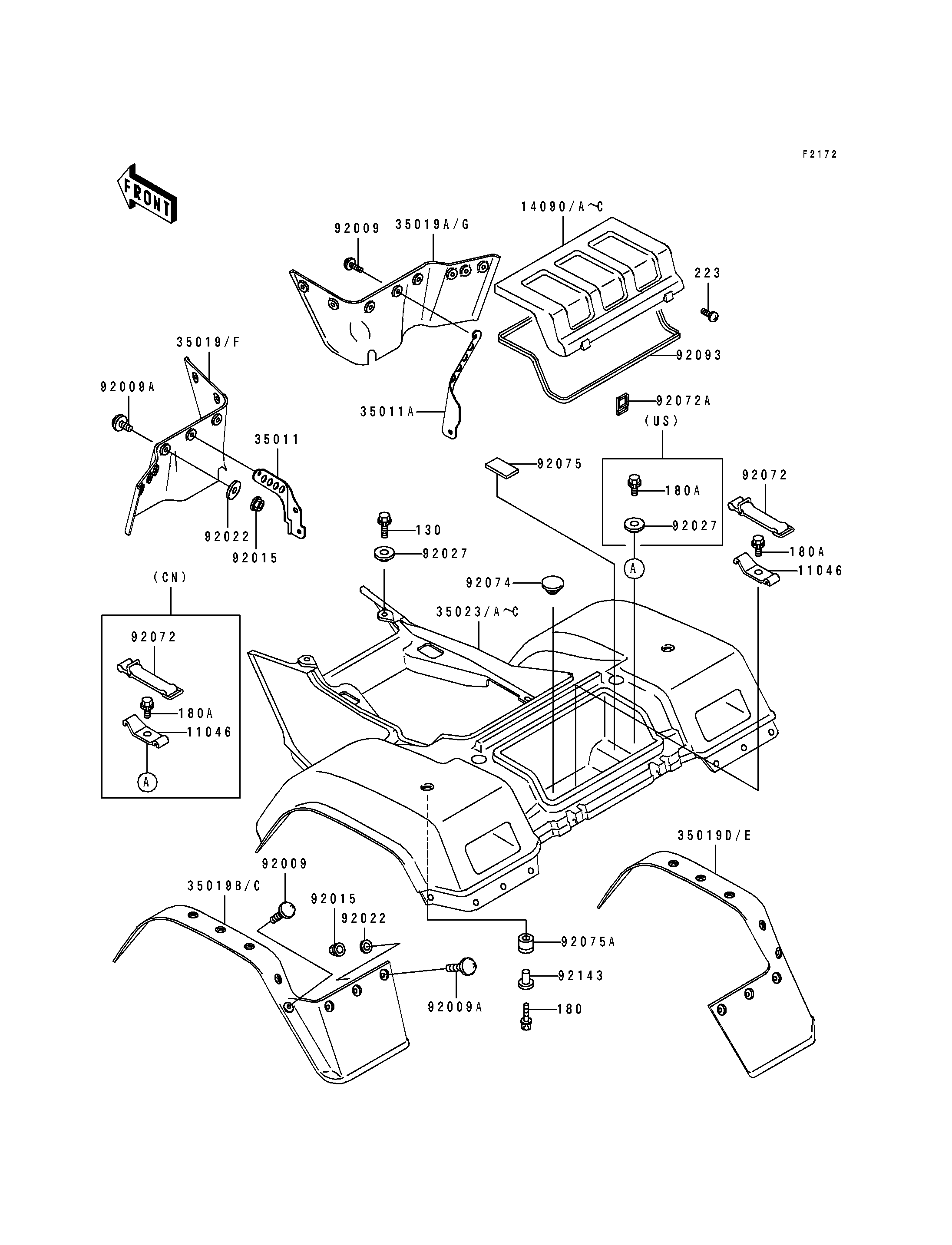

1995 Bayou 400 4X4 - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BAND 11046 11046-1319 2 CN
BRACKET,BAND 11046 11046-1319 1 US
COVER,REAR FENDER,F.GREEN 14090B 14090-1160-59 1
COVER,REAR FENDER,BLACK 14090C 14090-1160-6D 1
STAY,RR FENDER,LH 35011 35011-1618 1
STAY,RR FENDER,RH 35011A 35011-1619 1
FLAP,RR,LH,BLACK 35019C 35019-1298-6Z 1
FLAP,RR,RH,BLACK 35019E 35019-1299-6Z 1
FLAP,RR,LWR,LH,F.BLACK 35019F 35019-1325-6Z 1
FLAP,RR,LWR,RH,F.BLACK 35019G 35019-1326-6Z 1
FENDER-REAR,F.GREEN 35023B 35023-1332-59 1
FENDER-REAR,BLACK 35023C 35023-1332-6D 1
SCREW,6X22,BLACK 92009 92009-1256 4
SCREW,6X16 92009A 92009-1621 34
NUT,LOCK,FLANGED,6MM 92015 92015-1675 40
WASHER,6.5X16X1.0 92022 92022-1093 38
COLLAR,L=4.7 92027 92027-122 2 CN
COLLAR,L=4.7 92027 92027-122 3 US
BAND 92072 92072-1085 2 CN
BAND 92072 92072-1085 1 US
BAND,REAR FENDER COVER 92072A 92072-1291 2
PLUG,11X3.2 92074 92074-038 1
DAMPER 92075 92075-1830 1 CN
DAMPER 92075A 92075-1936 2
SEAL,REAR FENDER COVER 92093 92093-1262 1
COLLAR,L=19.6 92143 92143-1100 2
BOLT-FLANGED 130 130C0618 2
BOLT-UPSET-WS,6X35 180 180C0635 2
BOLT-UPSET-WS 180A 180D0614 2
SCREW-PAN-WS-CROS,4X6 223 223C0406 2
