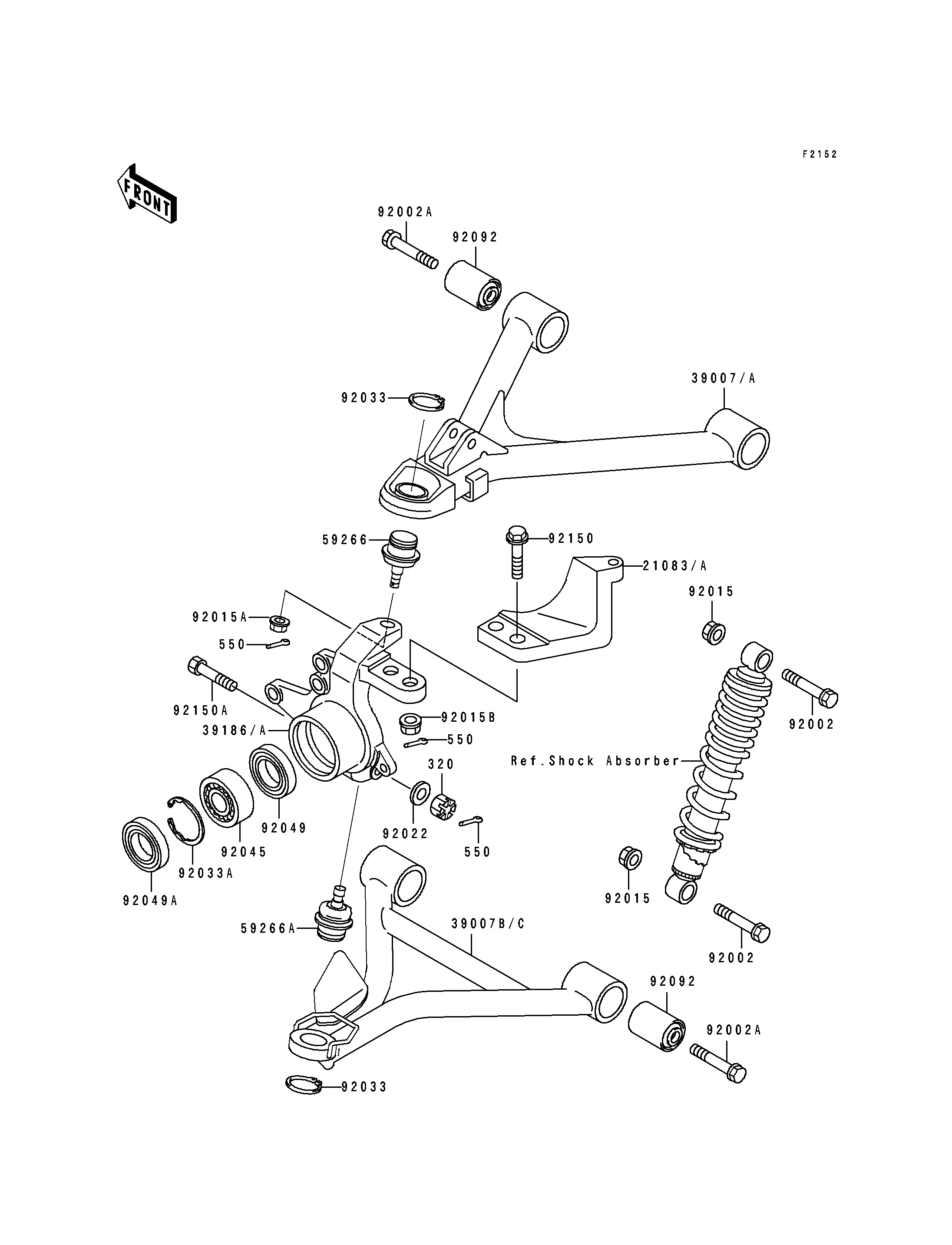

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ARM,FR,LH | 21083 | 21083-1074 | 1 | ||
| ARM,FR,RH | 21083A | 21083-1075 | 1 | ||
| ARM-SUSP,FR,LH,UPP | 39007 | 39007-1209 | 1 | ||
| ARM-SUSP,FR,RH,UPP | 39007A | 39007-1210 | 1 | ||
| ARM-SUSP,FR,LH,LWR | 39007B | 39007-1211 | 1 | ||
| ARM-SUSP,FR,RH,LWR | 39007C | 39007-1212 | 1 | ||
| KNUCKLE,FR,LH | 39186 | 39186-1098 | 1 | ||
| KNUCKLE,FR,RH | 39186A | 39186-1099 | 1 | ||
| JOINT-BALL | 59266 | 59266-1075 | 2 | ||
| JOINT-BALL | 59266A | 59266-1077 | 2 | ||
| BOLT,FLANGED,10X46 | 92002 | 92002-1740 | 4 | ||
| BOLT,FLANGED,12X67 | 92002A | 92002-1861 | 8 | ||
| NUT,LOCK,10MM | 92015 | 92015-1597 | 4 | ||
| NUT,LOCK,FLANGED,10MM | 92015A | 92015-1717 | 2 | ||
| NUT,LOCK,10MM | 92015B | 92015-1808 | 4 | ||
| WASHER,10.2X16X1 | 92022 | 92022-1829 | 2 | ||
| RING-SNAP,30MM | 92033 | 92033-1218 | 4 | ||
| RING-SNAP,55MM | 92033A | 92033-1274 | 2 | ||
| BEARING-BALL,DAC3055C2RKCD3 | 92045 | 92045-1222 | 2 | ||
| SEAL-OIL | 92049 | 92049-1321 | 2 | ||
| SEAL-OIL,SDD38 55 8 | 92049A | 92049-1322 | 2 | ||
| BUSHING-RUBBER | 92092 | 92092-1065 | 8 | ||
| BOLT,FLANGED,10X42 | 92150 | 92150-1215 | 4 | ||
| BOLT,10X44 | 92150A | 92150-1226 | 2 | ||
| NUT-CASTLE | 320 | 320H1000 | 2 | ||
| PIN-COTTER,2.0X15 | 550 | 550D2015 | 8 |
