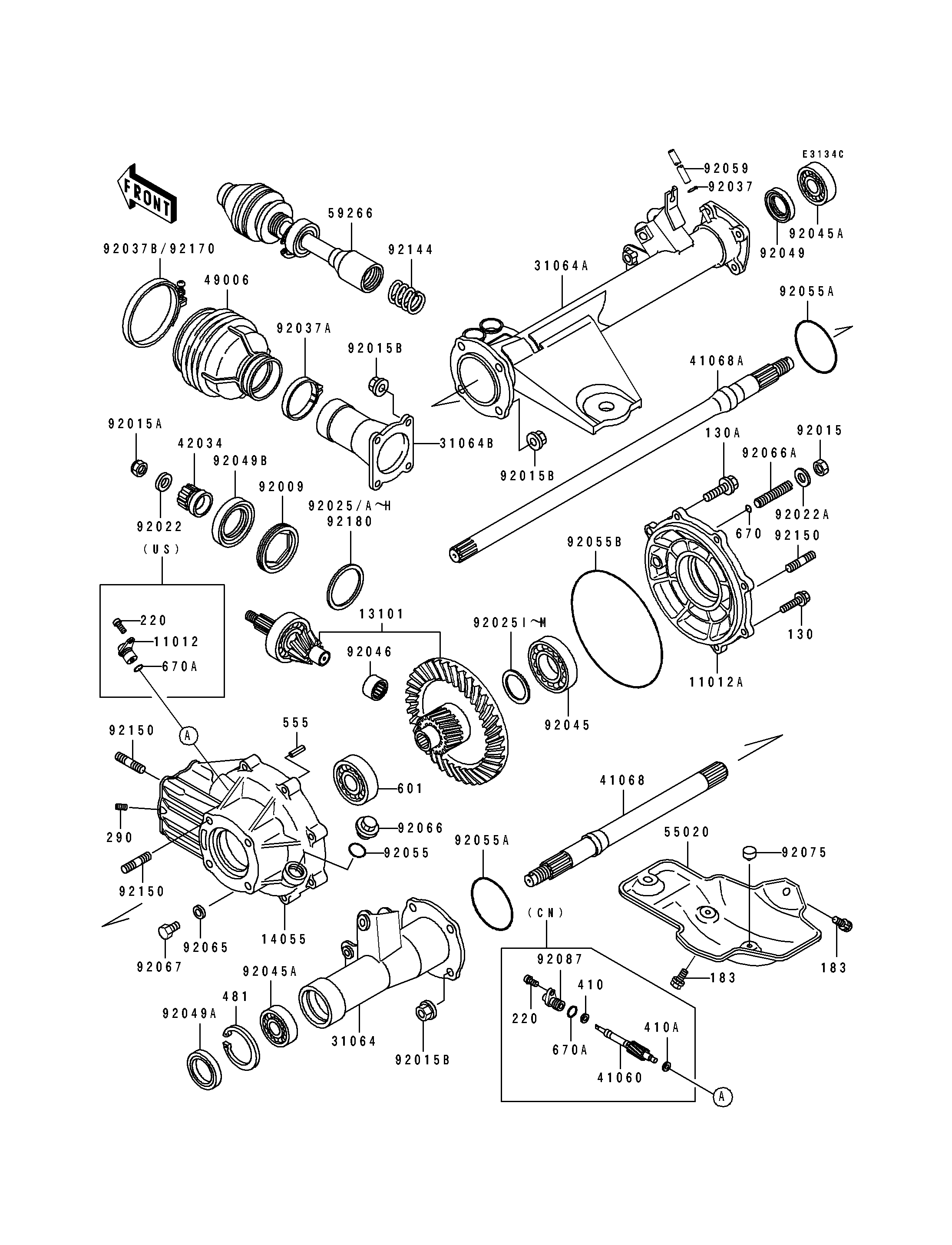

1995 Bayou 400 4X4 - Drive Shaft(Rear)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,METER GEAR 11012 11012-1650 1 US
CAP,GEAR CASE 11012A 11012-1651 1
GEAR-ASSY,BEVEL 13101 13101-5084 1
CASE-GEAR,RR 14055 14055-1089 1
PIPE-COMP,LH 31064 31064-1098 1
PIPE-COMP,RH 31064A 31064-1099 1
PIPE-COMP,DRIVE SHAFT 31064B 31064-1128 1
GEAR-METER SCREW 41060 41060-1126 1 CN
AXLE,LH 41068 41068-1347 1
AXLE,RH 41068A 41068-1348 1
COUPLING 42034 42034-1104 1
BOOT,DRIVE SHAFT 49006 49006-1237 1
GUARD,ENGINE 55020 55020-1306 1
JOINT-BALL 59266 59266-1089 1
SCREW 92009 92009-1528 1
NUT,12MM 92015 92015-006 1
NUT,12MM 92015A 92015-1182 1
NUT,FLANGED,10MM 92015B 92015-1335 12
WASHER,12.3X25X3.2 92022 92022-1293 1
WASHER,12MM 92022A 92022-1538 1
SHIM,52.5X61.5X0.15 92025 92025-1669 AR
SHIM,52.5X61.5X0.18 92025A 92025-1670 AR
SHIM,52.5X61.5X0.8 92025B 92025-1671 AR
SHIM,52.5X61.5X0.9 92025C 92025-1672 AR
SHIM,52.5X61.5X1.0 92025D 92025-1673 AR
SHIM,52.5X61.5X1.1 92025E 92025-1674 AR
SHIM,52.5X61.5X1.2 92025F 92025-1675 AR
SHIM,52.5X61.5X1.3 92025G 92025-1676 AR
SHIM,52.5X61.5X1.4 92025H 92025-1677 AR
SHIM,35.3X46X1.00 92025I 92025-1849 AR
SHIM,35.3X46X0.10 92025J 92025-1850 AR
SHIM,35.3X46X0.15 92025K 92025-1851 AR
SHIM,35.3X46X0.50 92025L 92025-1856 AR
SHIM,35.3X46X0.80 92025M 92025-1857 AR
CLAMP,TUBE 92037 92037-147 1
CLAMP 92037A 92037-1523 1
CLAMP 92037B 92037-1654 1 US
BEARING-BALL 92045 92045-1110 1
BEARING-BALL,6205DDU 92045A 92045-1229 2
BEARING-NEEDLE,NK20/16RE 92046 92046-1183 1
SEAL-OIL,SO30428 92049 92049-1236 1
SEAL-OIL 92049A 92049-1287 1
SEAL-OIL,TC406510 92049B 92049-1310 1
RING-O,25.7X2.4 92055 92055-1136 1
RING-O 92055A 92055-1207 2
RING-O,164.1X2.5 92055B 92055-1411 1
TUBE,4.7X9.5X1240 92059 92059-1968 1
GASKET,10.5X16X1,DRAIN PLUG 92065 92065-058 1
PLUG 92066 92066-1303 1
PLUG 92066A 92066-1305 1
PLUG,DRAIN,10X12 92067 92067-001 1
DAMPER 92075 92075-021 3
BUSHING-METER GEAR 92087 92087-1057 1 CN
SPRING 92144 92144-1278 1
BOLT,10X22 92150 92150-1197 12
CLAMP 92170 92170-1676 1 CN
SHIM,52.5X61.5X0.10 92180 92180-1115 AR
BOLT-FLANGED,8X30 130 130P0830 6
BOLT-FLANGED 130A 130P1035 2
BOLT-UPSET-WS-SMALL 183 183H0814 3
SCREW-PAN-CROS 220 220X0614 1
SCREW-SET-SOCKET 290 290Q0612 1
WASHER-PLAIN-SMALL,5MM 410 410B0500 1 CN
WASHER-PLAIN-SMALL,6MM 410A 410B0600 1 CN
CIRCLIP 481 481J5200 1
PIN-SPRING 555 555A0422 1
BEARING-BALL 601 601B6007 1
O RING,9MM 670 670B1509 1
O RING,12MM 670A 670B2012 1
