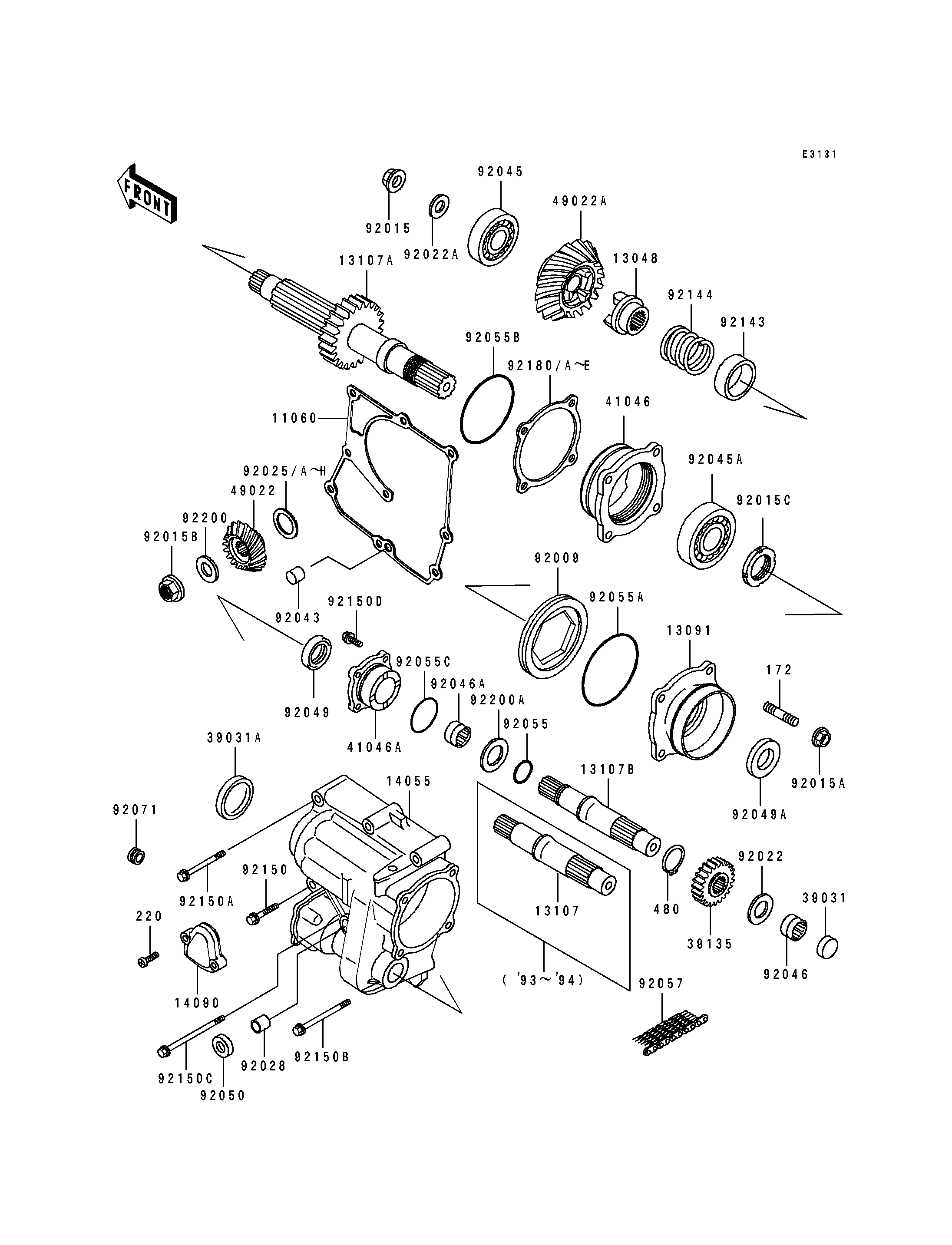

1995 Bayou 400 4X4 - Front Bevel Gear

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GEAR CASE 11060 11060-1204 1
CAM-DAMPER 13048 13048-1078 1
HOLDER,GEAR CASE 13091 13091-1764 1
SHAFT,FRONT BEVEL,23T 13107A 13107-1323 1
SHAFT,FRONT BEVEL 13107B 13107-1332 1
CASE-GEAR,FRONT BEVEL 14055 14055-1122 1
COVER 14090 14090-1135 1
CAP-END 39031 39031-1061 1
CAP-END 39031A 39031-1062 1
SPROCKET-DRIVEN,23T 39135 39135-1054 1
HOUSING-BEARING 41046 41046-1094 1
HOUSING-BEARING 41046A 41046-1095 1
GEAR-BEVEL 49022 49022-1126 1
GEAR-BEVEL 49022A 49022-1127 1
SCREW 92009 92009-1667 1
NUT,FLANGED,14MM 92015 92015-1341 1
NUT,8MM 92015A 92015-1402 4
NUT 92015B 92015-1581 1
NUT,30MM 92015C 92015-1858 1
WASHER,20.3X36X1.5 92022 92022-1489 1
WASHER,14.2X28X2.6 92022A 92022-1688 1
SHIM,25.3X36X0.15 92025 92025-1688 AR
SHIM,25.3X36X0.50 92025A 92025-1689 AR
SHIM,25.3X36X0.60 92025B 92025-1690 AR
SHIM,25.3X36X0.70 92025C 92025-1691 AR
SHIM,25.3X36X0.80 92025D 92025-1692 AR
SHIM,25.3X36X0.90 92025E 92025-1693 AR
SHIM,25.3X36X1.00 92025F 92025-1694 AR
SHIM,25.3X36X1.10 92025G 92025-1695 AR
SHIM,25.3X36X1.20 92025H 92025-1696 AR
BUSHING 92028 92028-1347 1
PIN,DOWEL,10X14 92043 92043-1037 1
BEARING-BALL,6206CM 92045 92045-1155 1
BEARING-BALL,6306SH2 92045A 92045-1190 1
BEARING-NEEDLE,NK20/20RE 92046 92046-1211 1
BEARING-NEEDLE,NK24/20RE 92046A 92046-1212 1
SEAL-OIL,AE1252E0 92049 92049-1395 1
SEAL-OIL,AE1265E0 92049A 92049-1400 1
SEAL-OIL 92050 92050-082 2
RING-O,19.5X1.5 92055 92055-055 1
RING-O 92055A 92055-081 1
RING-O,79.5MM 92055B 92055-1230 1
RING-O,43.7X1.9 92055C 92055-1401 1
CHAIN,BEVEL,63HV303-42AS 92057 92057-1351 1
GROMMET 92071 92071-1203 1
COLLAR,24.2X33X12 92143 92143-1657 1
SPRING,BEVEL 92144 92144-1599 1
BOLT,8X35 92150 92150-1585 2
BOLT,8X60 92150A 92150-1586 3
BOLT,8X75 92150B 92150-1587 3
BOLT,8X90 92150C 92150-1588 1
BOLT,6X20 92150D 92150-1597 4
SHIM,T=1.00 92180 92180-1126 AR
SHIM,T=0.10 92180A 92180-1127 AR
SHIM,T=0.15 92180B 92180-1128 AR
SHIM,T=0.50 92180C 92180-1129 AR
SHIM,T=0.80 92180D 92180-1130 AR
SHIM,T=1.20 92180E 92180-1131 AR
WASHER,16.3X31X3.2 92200 92200-1104 1
WASHER,24.2X40X2.0 92200A 92200-1118 1
BOLT-STUD,8X25 172 172G0825 4
SCREW-PAN-CROS,6X20,BLACK 220 220C0620 2
CIRCLIP-TYPE-C,25MM 480 480J2500 1
