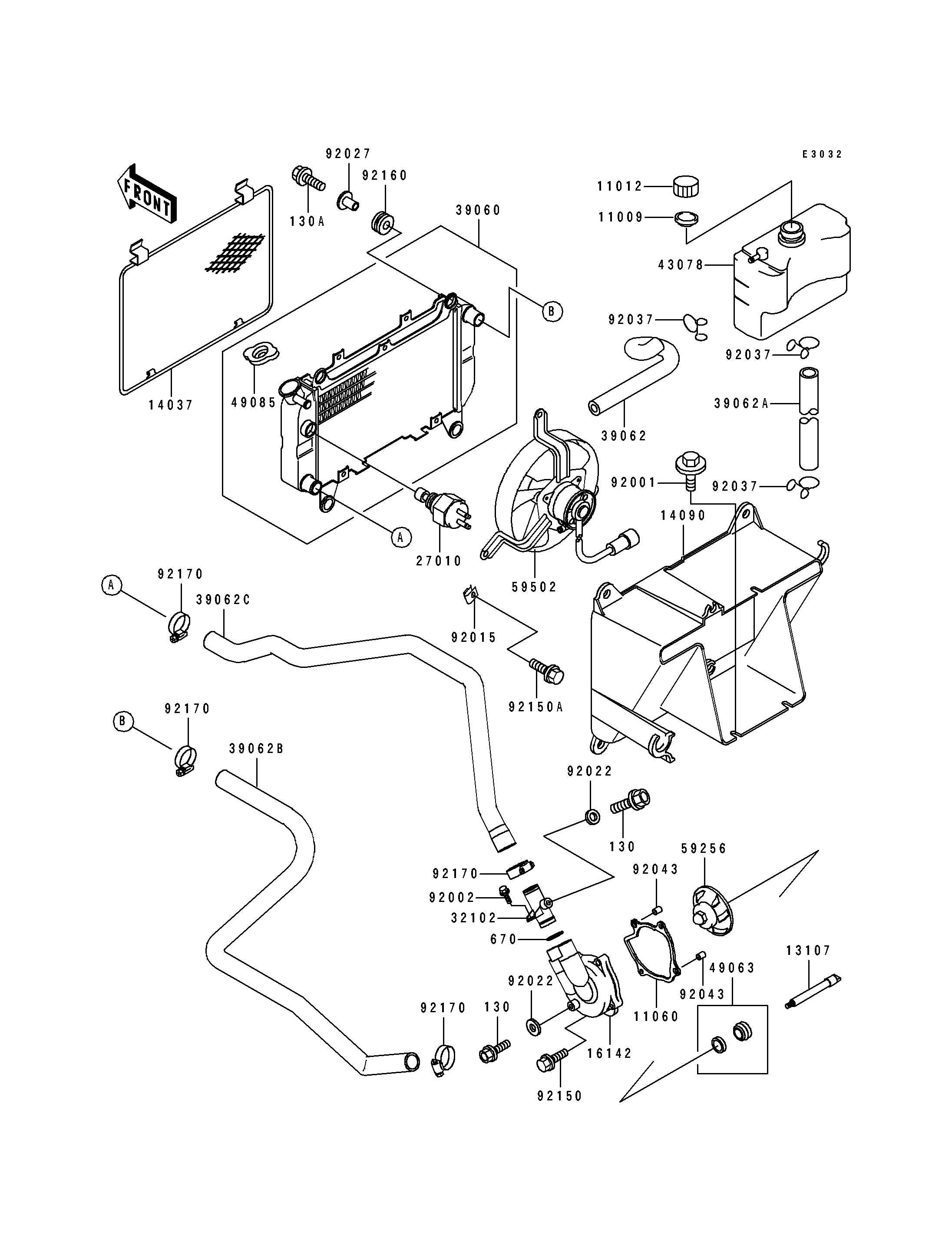

1995 Bayou 400 4X4 - Radiator

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
GASKET,PUMP COVER 11060 11060-1308 1
SHAFT,WATER PUMP 13107 13107-1287 1
SCREEN 14037 14037-1153 1
COVER,RADIATOR 14090 14090-1491 1
COVER-PUMP 16142 16142-1083 1
SWITCH,FAN 27010 27010-1202 1
PIPE,CYLINDER 32102 32102-1719 1
RADIATOR 39060 39060-1110 1
HOSE-COOLING 39062 39062-1257 1
HOSE-COOLING,5.5X10.5X420 39062A 39062-1586 1
HOSE-COOLING,HEAD-RADIATOR 39062B 39062-1587 1
HOSE-COOLING,RADIATOR-PUMP 39062C 39062-1588 1
RESERVOIR 43078 43078-1146 1
SEAL-MECHANICAL 49063 49063-1054 1
CAP-ASSY-PRESSURE 49085 49085-1066 1
IMPELLER 59256 59256-1060 1
FAN-ASSY 59502 59502-1102 1
BOLT,6X16 92001 92001-1950 2
BOLT,6X12 92002 92002-1569 1
NUT 92015 92015-1487 3
WASHER,6.2X11X1 92022 92022-304 2
COLLAR 92027 92027-1956 4
CLAMP,TUBE 92037 92037-147 3
PIN,DOWEL,8X10 92043 92043-1302 2
BOLT,6X30 92150 92150-1021 4
BOLT,6X12 92150A 92150-1186 3
DAMPER 92160 92160-1007 4
CLAMP 92170 92170-1497 4
BOLT-FLANGED 130 130J0610 2
BOLT-FLANGED,8X30 130A 130J0830 4
O RING,18MM 670 670B2018 1
