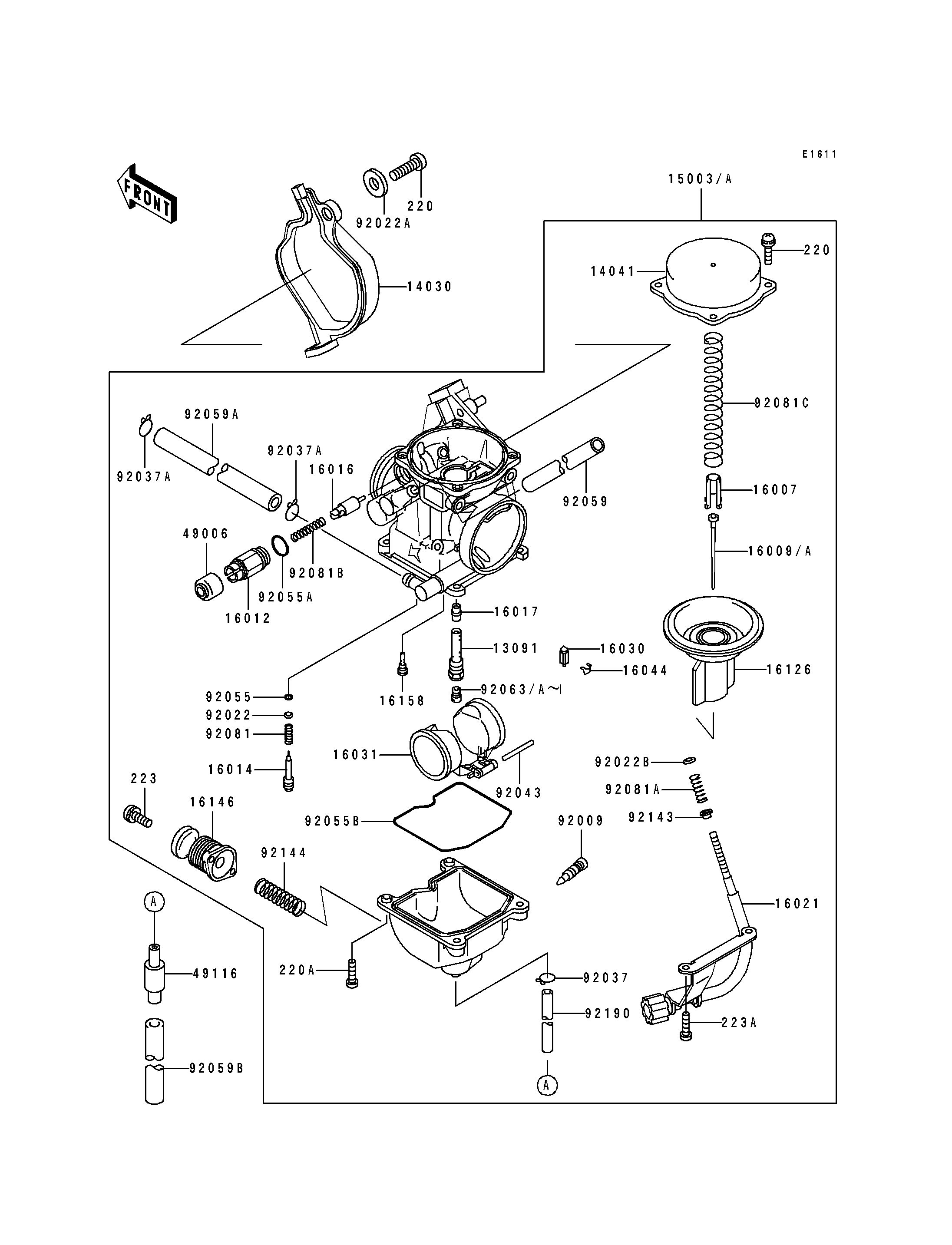

1995 Bayou 400 4X4 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1259 1
COVER-CARBURETOR 14030 14030-1054 1
TOP-CHAMBER,MIXING,INSIDE 14041 14041-1077 1
CARBURETOR-ASSY 15003A 15003-1123 1
SEAT-SPRING,THROTTLE VALVE 16007 16007-1120 1
NEEDLE-JET,N74K 16009A 16009-1829 1
CAP-STARTER PLUNGER 16012 16012-1055 1
SCREW-PILOT AIR 16014 16014-1054 1
PLUNGER,STARTER 16016 16016-1065 1
JET-NEEDLE,#6 16017 16017-1270 1
SCREW-THROTTLE STOP 16021 16021-1154 1
VALVE-FLOAT 16030 16030-1007 1
FLOAT 16031 16031-1056 1
CLAMP,FLOAT VALVE 16044 16044-007 1
VALVE,VACUUM 16126 16126-1199 1
COVER-ASSY,PUMP 16146 16146-1129 1
JET-SLOW,#42 16158 16158-1053 1
BOOT,STARTER PLUNGER 49006 49006-1165 1
VALVE-ASSY 49116 49116-1126 1
SCREW,DRAIN,M6X0.75 92009 92009-1551 1
WASHER,PLAIN 92022 92022-1003 1
WASHER,5.2X13X1 92022A 92022-1380 1
WASHER,PLAIN,STOP SPRING 92022B 92022-1480 1
CLAMP,TUBE 92037 92037-1201 1
CLAMP,TUBE 92037A 92037-1531 2
PIN,FLOAT 92043 92043-1207 1
RING-O,PILOT ADJUST 92055 92055-1002 1
RING-O,STARTER PLUNGER 92055A 92055-1416 1
RING-O,FLOAT CHAMBER 92055B 92055-1518 1
TUBE,6.5X11.5X150 92059 92059-1463 1
TUBE,6.5X9.5X430 92059A 92059-1727 1
TUBE,7X10X100 92059B 92059-1736 1
JET-MAIN,#85 92063 92063-1023 1
JET-MAIN,#125 92063A 92063-1069 1 (RACING USE ONLY)
JET-MAIN,#118 92063C 92063-1071 1 (RACING USE ONLY)
JET-MAIN,#120 92063D 92063-1072 1
JET-MAIN,#122 92063E 92063-1073 1 (RACING USE ONLY)
JET-MAIN,#115 92063I 92063-1118 1 (RACING USE ONLY)
SPRING,PILOT ADJUST SCREW 92081 92081-1002 1
SPRING,THROTTLE ADJUST UPP 92081A 92081-1620 1
SPRING,PLUNGER 92081B 92081-1720 1
SPRING,VACUUM VALVE 92081C 92081-1775 1
COLLAR 92143 92143-1589 1
SPRING,PUMP 92144 92144-1672 1
TUBE,4.5X8X330 92190 92190-1557 1
SCREW-PAN-CROS 220 220B0408 5
SCREW-PAN-CROS 220A 220D0414 4
SCREW-PAN-WS-CROS 223 223C0412 2
