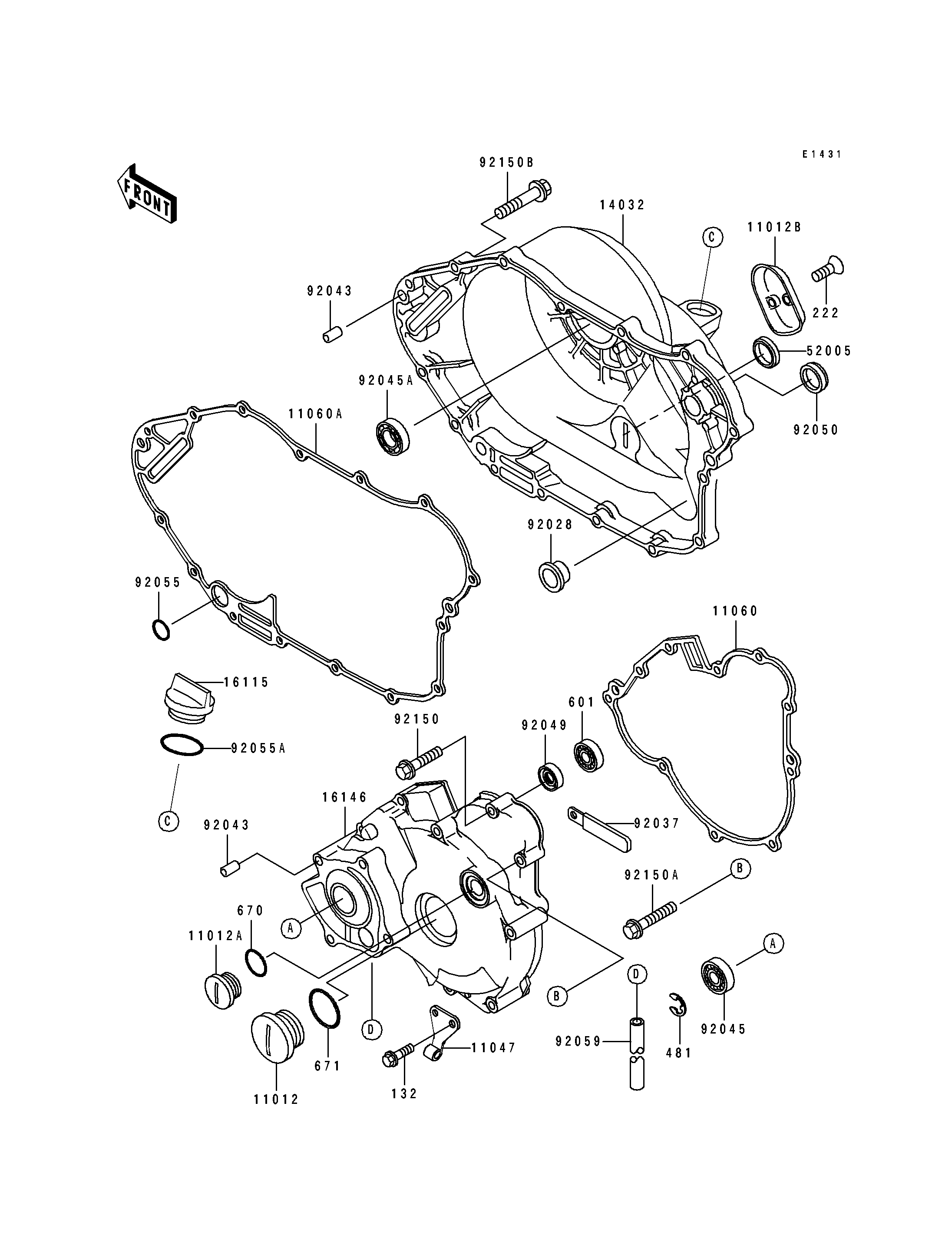

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-1362 | 1 | ||
| CAP,TOP MARK | 11012A | 11012-1363 | 1 | ||
| CAP,CLUTCH RELEASE | 11012B | 11012-1644 | 1 | ||
| BRACKET,CABLE | 11047 | 11047-1494 | 1 | ||
| GASKET,GENERATOR | 11060 | 11060-1208 | 1 | ||
| GASKET,CLUTCH COVER | 11060A | 11060-1209 | 1 | ||
| COVER-CLUTCH | 14032 | 14032-5021 | 1 | ||
| CAP-OIL FILLER | 16115 | 16115-1009 | 1 | ||
| COVER-ASSY,GENERATOR | 16146 | 16146-1155 | 1 | ||
| GAUGE,OIL LEVEL | 52005 | 52005-1009 | 1 | ||
| BUSHING | 92028 | 92028-1544 | 1 | ||
| CLAMP,WIRING HARNESS | 92037 | 92037-1539 | 1 | ||
| PIN,6.2X8X14 | 92043 | 92043-1263 | 4 | ||
| BEARING-BALL | 92045 | 92045-1206 | 1 | ||
| BEARING-BALL,6303RUED2C3 | 92045A | 92045-1256 | 1 | ||
| SEAL-OIL,SC10227 | 92049 | 92049-1157 | 1 | ||
| SEAL-OIL | 92050 | 92050-078 | 1 | ||
| RING-O,OD=18 | 92055 | 92055-048 | 1 | ||
| RING-O,31.5X2.6 | 92055A | 92055-049 | 1 | ||
| TUBE,4.5X9X190 | 92059 | 92059-080 | 1 | ||
| BOLT,6X35 | 92150 | 92150-1600 | 5 | ||
| BOLT,6X50 | 92150A | 92150-1601 | 5 | ||
| BOLT,6X30 | 92150B | 92150-1602 | 15 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0612 | 1 | ||
| SCREW-CSK-RD-CROS | 222 | 222C0512 | 2 | ||
| CIRCLIP | 481 | 481J2200 | 1 | ||
| BEARING-BALL | 601 | 601A6000 | 1 | ||
| O RING,18MM | 670 | 670B2018 | 1 | ||
| O RING,40MM | 671 | 671B2540 | 1 |
