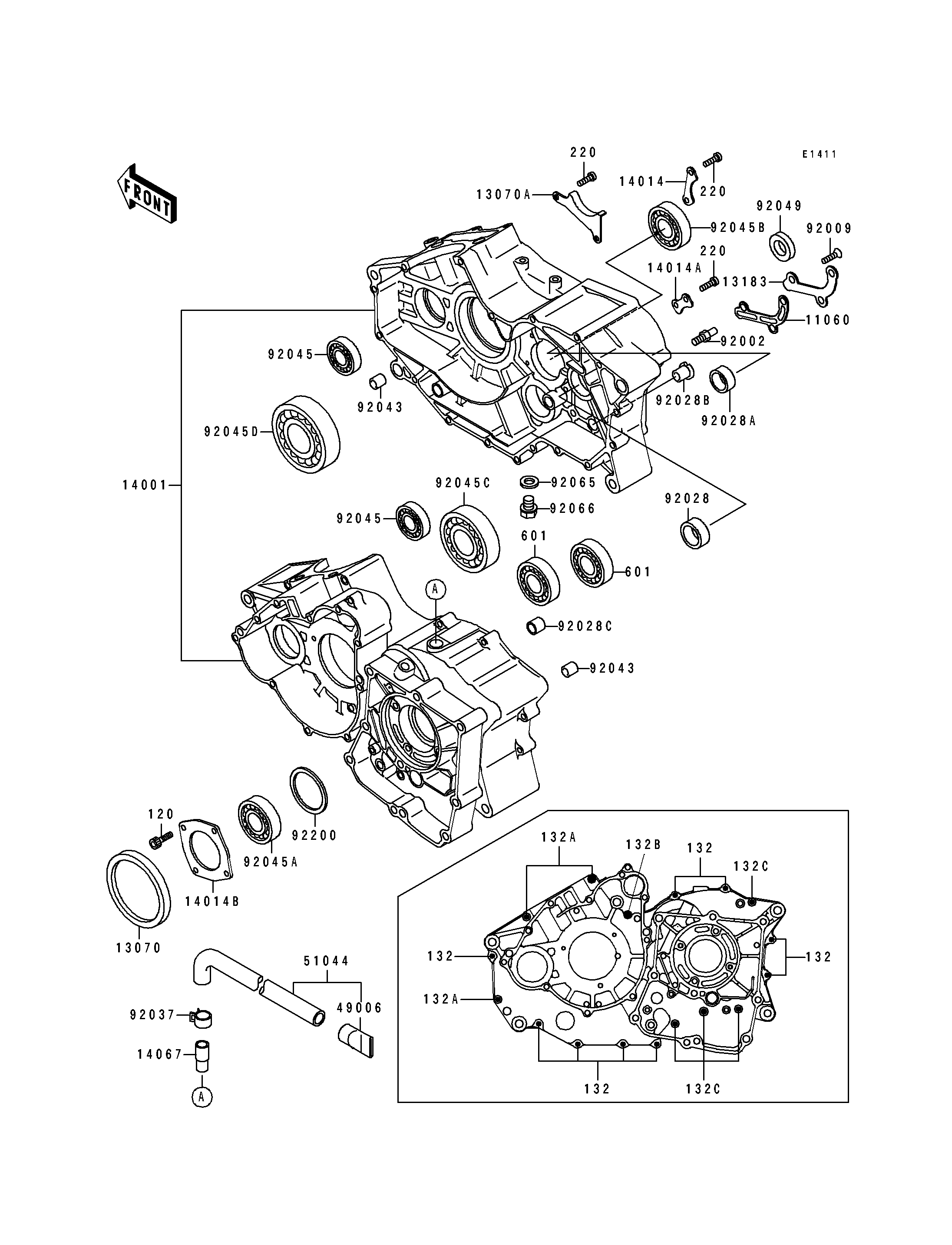

1995 Bayou 400 4X4 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL LINE 11060 11060-1207 1
GUIDE 13070 13070-1254 1
GUIDE,CHAIN 13070A 13070-1255 1
PLATE,OIL LINE 13183 13183-1725 1
SET-CRANKCASE 14001 14001-5308 1
PLATE-POSITION 14014 14014-1069 1
PLATE-POSITION 14014A 14014-1107 1
PLATE-POSITION 14014B 14014-1108 1
FITTING,BREATHER 14067 14067-006 1
BOOT 49006 49006-1199 1
TUBE-ASSY 51044 51044-1118 1
BOLT,8X15 92002 92002-1601 1
SCREW,6X14 92009 92009-1349 3
BUSHING,26X35X14 92028 92028-131 1
BUSHING,23X30X13 92028A 92028-132 1
BUSHING 92028B 92028-1386 1
BUSHING,14X16X15 92028C 92028-1505 1
CLAMP 92037 92037-1860 1
PIN,11.5X14X14 92043 92043-1279 2
BEARING-BALL,TMB304CCM 92045 92045-1142 2
BEARING-BALL,6305RHR4SH2 92045A 92045-1254 1
BEARING-BALL,63/22 92045B 92045-1255 1
BEARING-BALL,6307SH2-9C4 92045C 92045-1257 1
BEARING-BALL,6208RSH2-9C3 92045D 92045-1258 1
SEAL-OIL,AC1013A1 92049 92049-1393 1
GASKET,12X22X2,DRAIN PLUG 92065 92065-097 1
PLUG,OIL DRAIN,12X15 92066 92066-1174 1
WASHER,50X60.5X0.5 92200 92200-1106 1
BOLT-SOCKET,6X16 120 120P0616 4
BOLT-FLANGED-SMALL 132 132Y0635 9
BOLT-FLANGED-SMALL 132A 132Y0675 3
BOLT-FLANGED-SMALL 132B 132Y0685 1
BOLT-FLANGED-SMALL 132C 132Y0695 4
SCREW-PAN-CROS,6X14 220 220B0614 6
BEARING-BALL 601 601A6203Z 2
