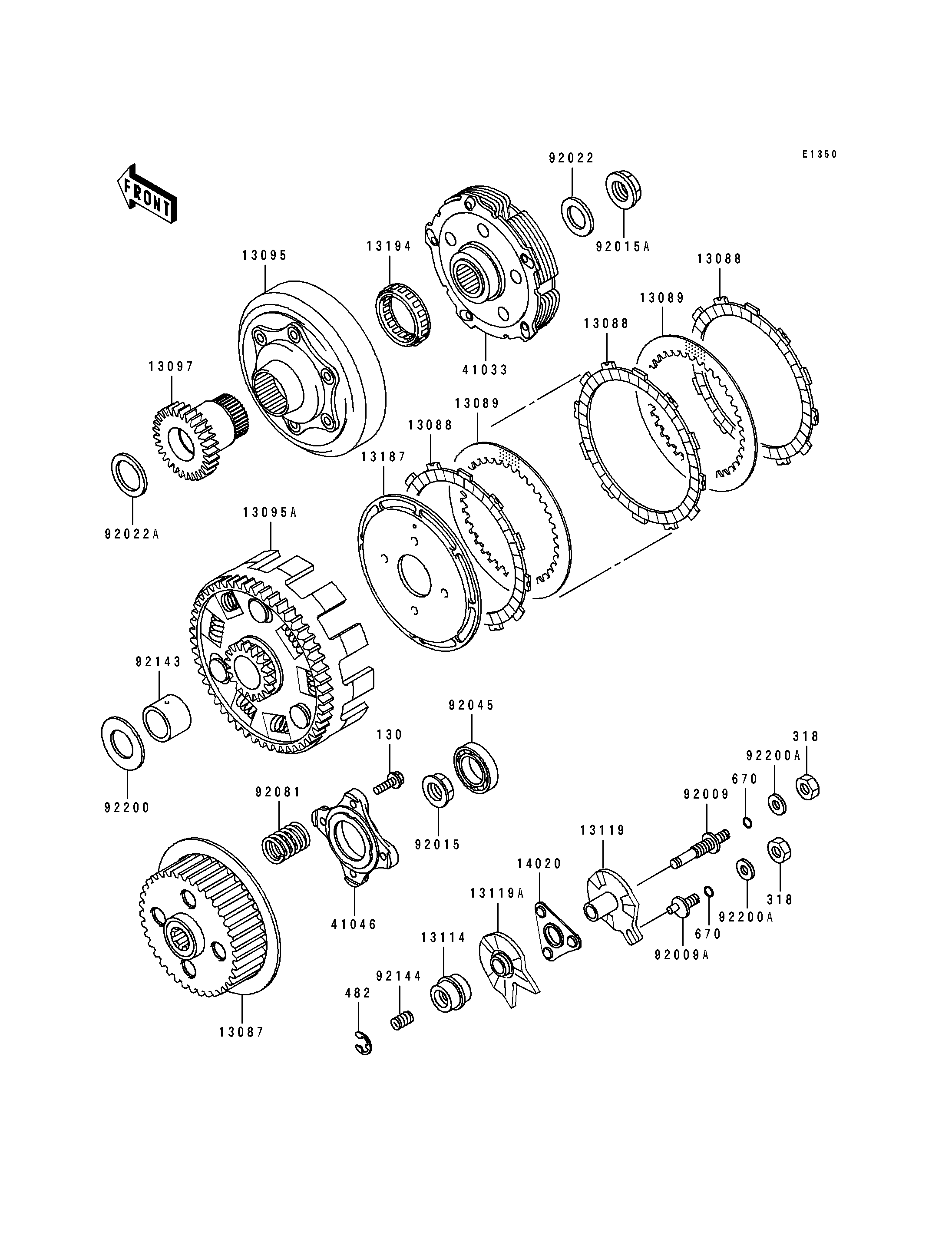

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HUB-CLUTCH | 13087 | 13087-1142 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-1091 | 6 | ||
| PLATE-CLUTCH | 13089 | 13089-1095 | 5 | ||
| HOUSING-COMP-CLUTCH,FRONT | 13095 | 13095-1242 | 1 | ||
| HOUSING-COMP-CLUTCH | 13095A | 13095-1243 | 1 | ||
| GEAR-PRIMARY SPUR,CLUTCH,29T | 13097 | 13097-1273 | 1 | ||
| PUSHER-CLUTCH | 13114 | 13114-1060 | 1 | ||
| CAM-RELEASE | 13119 | 13119-1067 | 1 | ||
| CAM-RELEASE | 13119A | 13119-1070 | 1 | ||
| PLATE-CLUTCH OPERATING | 13187 | 13187-1081 | 1 | ||
| CLUTCH-ONEWAY | 13194 | 13194-1093 | 1 | ||
| RETAINER,CLUTCH RELEASE | 14020 | 14020-1092 | 1 | ||
| HUB-ASSY,CLUTCH | 41033 | 41033-1931 | 1 | ||
| HOUSING-BEARING | 41046 | 41046-1063 | 1 | ||
| SCREW | 92009 | 92009-1525 | 1 | ||
| SCREW | 92009A | 92009-1526 | 1 | ||
| NUT | 92015 | 92015-1581 | 1 | ||
| NUT,20MM | 92015A | 92015-1880 | 1 | ||
| WASHER,20.5X34X1.4 | 92022 | 92022-168 | 1 | ||
| WASHER,27.3X38X1.5 | 92022A | 92022-1683 | 1 | ||
| BEARING-BALL,#6905 | 92045 | 92045-036 | 1 | ||
| SPRING,CLUTCH | 92081 | 92081-1848 | 4 | ||
| COLLAR,CLUTCH | 92143 | 92143-1576 | 1 | ||
| SPRING | 92144 | 92144-1272 | 1 | ||
| WASHER,22.2X34X4.5 | 92200 | 92200-1136 | 1 | ||
| WASHER,8.5X18X2.3 | 92200A | 92200-1213 | 2 | ||
| BOLT-FLANGED,6X20 | 130 | 130P0620 | 4 | ||
| NUT-HEX-SMALL,8MM | 318 | 318B0800 | 2 | ||
| CIRCLIP-TYPE-E,7MM | 482 | 482J7000 | 1 | ||
| O RING,8MM | 670 | 670B1508 | 2 |
