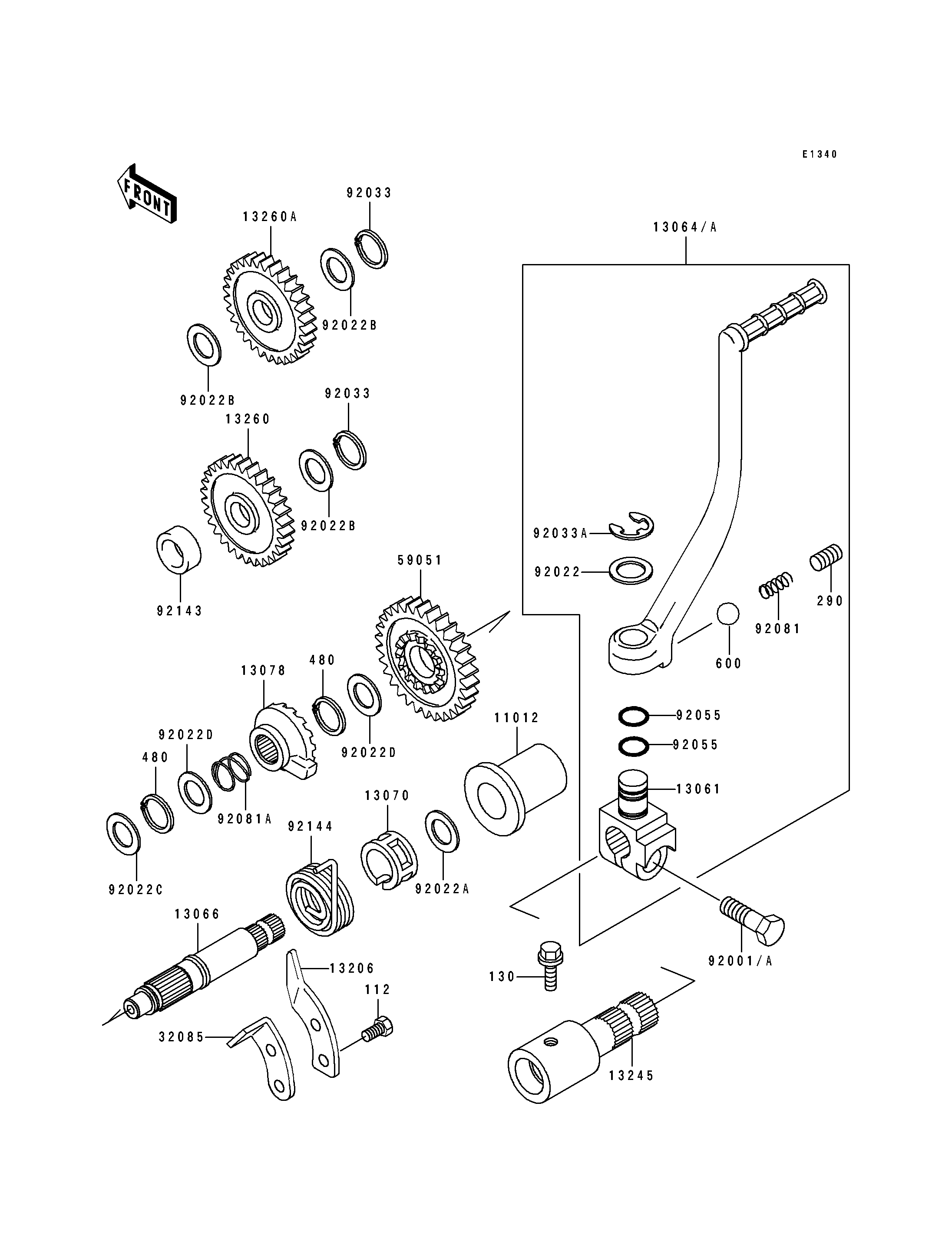

1995 Bayou 400 4X4 - Kickstarter Mechanism

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,KICKSTARTER 11012 11012-1801 1
BOSS,KICK PEDAL 13061 13061-1189 1
LEVER-ASSY-KICK 13064 13064-1127 1 CN (OPTION)
LEVER-ASSY-KICK 13064A 13064-1127 1 US
SHAFT-KICK 13066 13066-1079 1
GUIDE,KICK SPRING 13070 13070-011 1
RATCHET 13078 13078-1053 1
GUIDE-KICK 13206 13206-1056 1
SHAFT-COMP-KICK 13245 13245-1051 1
GEAR,KICKSTARTER,IDLE,23T 13260 13260-1221 1
GEAR,KICKSTARTER,IDLE,29T 13260A 13260-1222 1
STOPPER 32085 32085-1237 1
GEAR-SPUR,KICKSTARTER,31T 59051 59051-1253 1
BOLT,8X28 92001 92001-1042 1 CN (OPTION)
BOLT,8X28 92001A 92001-1042 1 US
WASHER,15.2X20X1 92022 92022-1019 1
WASHER,18.5X23X1.2 92022A 92022-118 1
WASHER,17.3X22X0.5 92022B 92022-1799 3
WASHER,12.3X20X0.5 92022C 92022-269 1
WASHER,16.8X22X0.5 92022D 92022-315 2
RING-SNAP 92033 92033-032 2
RING-SNAP,10MM 92033A 92033-1166 1
RING-O,10X1.5 92055 92055-061 2
SPRING,KICK PEDAL 92081 92081-020 1
SPRING,RATCHET 92081A 92081-122 1
COLLAR,17X23X5 92143 92143-1525 1
SPRING,KICKSTARTER 92144 92144-1001 1
BOLT-UPSET 112 112G0618 2
BOLT-FLANGED 130 130J0610 1
SCREW-SET-SOCKET,8X8 290 290Q0808 1
CIRCLIP-TYPE-C,16MM 480 480J1600 2
BALL-STEEL,1/4" 600 600A0800 1
