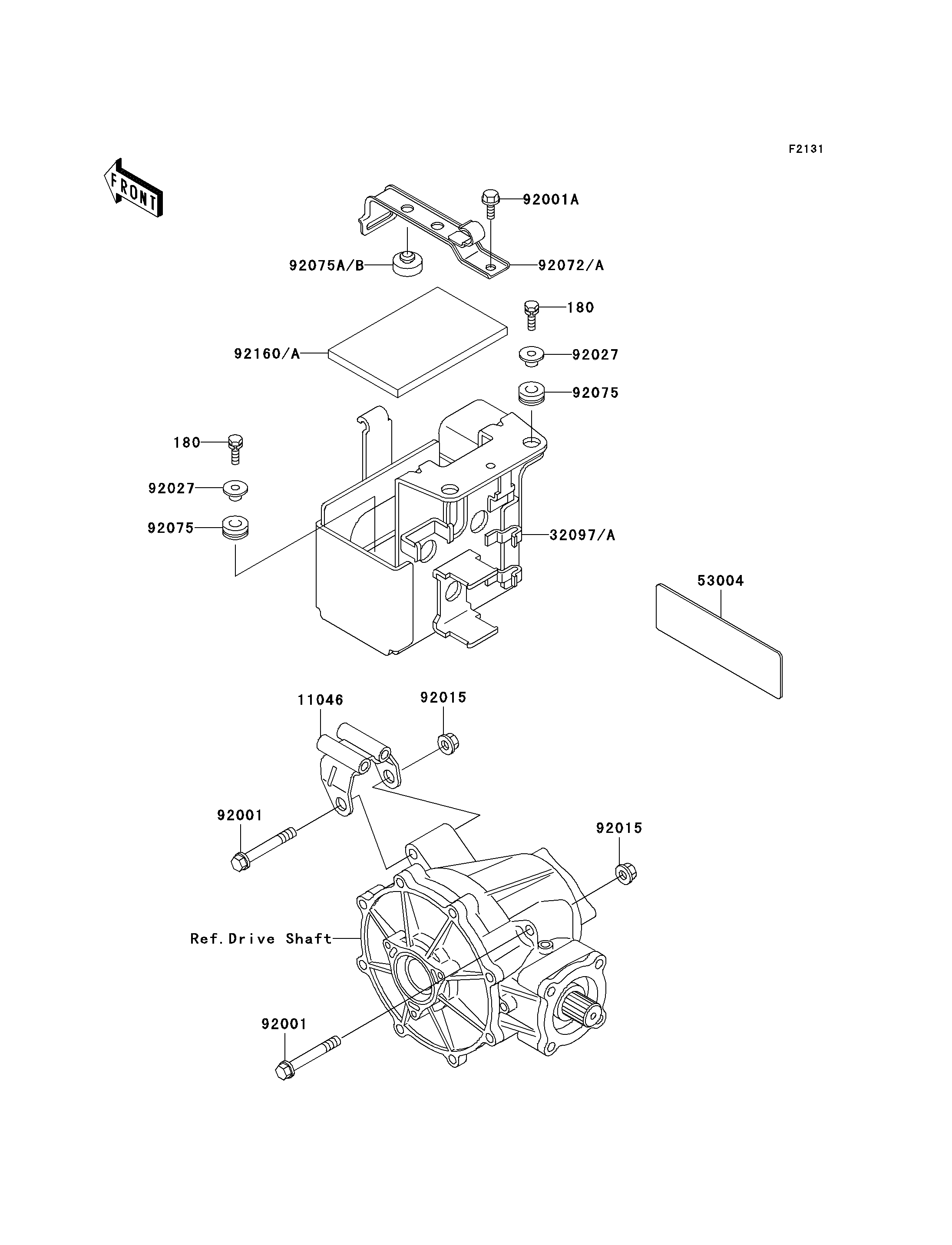

2005 Bayou 300 4X4 (Canada Only) - Frame Fittings
180
180
11046
32097A
53004
92001
92001
92001A
92015
92015
92027
92027
92072A
92075
92075
92075A
92160A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET-WS | 180 | 180D0620 | 4 | ||
| BRACKET,DIFF FITTING | 11046 | 11046-1221 | 1 | ||
| CASE-BATTERY | 32097A | 32097-1185 | 1 | ||
| MAT | 53004 | 53004-1070 | 1 | ||
| BOLT,FLANGED,10X70 | 92001 | 92001-1618 | 3 | ||
| BOLT,W/P,6X16 | 92001A | 92001-1860 | 1 | ||
| NUT,FLANGED,10MM | 92015 | 92015-1335 | 3 | ||
| COLLAR,L=9.6 | 92027 | 92027-1045 | 4 | ||
| BAND,BATTERY | 92072A | 92072-1290 | 1 | ||
| DAMPER | 92075 | 92075-1167 | 4 | ||
| DAMPER | 92075A | 92075-1876 | 2 | ||
| DAMPER | 92160A | 92160-1266 | 2 |
