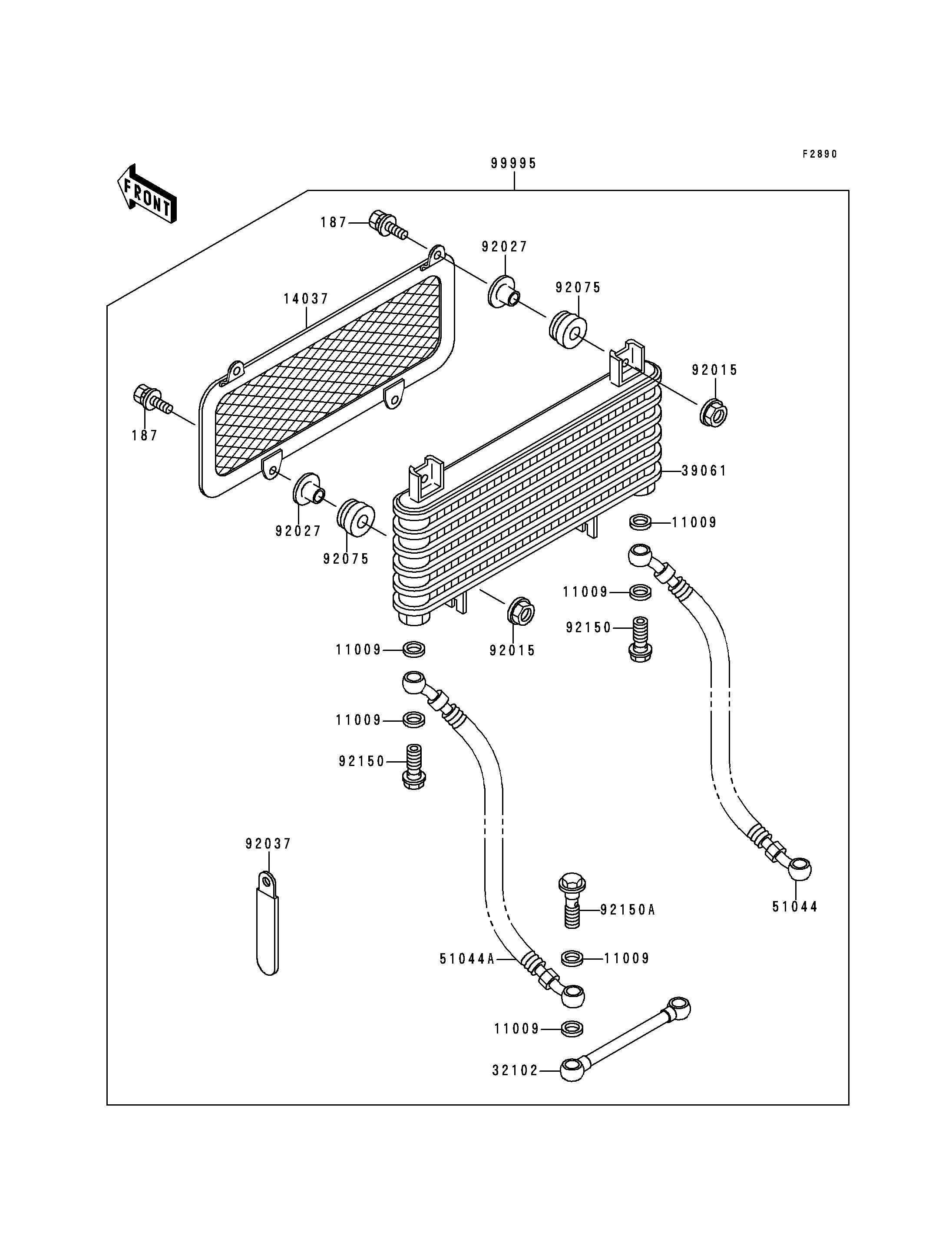

1990 Bayou 300 4X4 - Optional Parts(Radiator)
187
187
11009
11009
11009
11009
11009
11009
14037
32102
39061
51044
51044A
92015
92015
92027
92027
92037
92075
92075
92150
92150
92150A
99995
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET-WSP | 187 | 187D0625 | 4 | ||
| GASKET,10X14.5X1.5 | 11009 | 11009-1105 | 5 | ||
| SCREEN | 14037 | 14037-1105 | 1 | ||
| PIPE | 32102 | 32102-1966 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-1126 | 1 | ||
| TUBE-ASSY | 51044 | 51044-1096 | 1 | ||
| TUBE-ASSY | 51044A | 51044-1097 | 1 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 4 | ||
| COLLAR | 92027 | 92027-1767 | 4 | ||
| CLAMP | 92037 | 92037-1679 | 1 | ||
| DAMPER | 92075 | 92075-277 | 4 | ||
| BOLT,BANJO,10X23 | 92150 | 92150-1123 | 2 | ||
| BOLT | 92150A | 92150-1136 | 1 | ||
| KIT.,RADIATOR | 99995 | 99995-1022 | 1 |
| BOLT-UPSET-WSP | |
| REF # | 187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GASKET,10X14.5X1.5 | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| SCREEN | |
| REF # | 14037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE | |
| REF # | 32102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RADIATOR-ASSY | |
| REF # | 39061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-ASSY | |
| REF # | 51044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-ASSY | |
| REF # | 51044A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,BANJO,10X23 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KIT.,RADIATOR | |
| REF # | 99995 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
