Parts Diagrams |

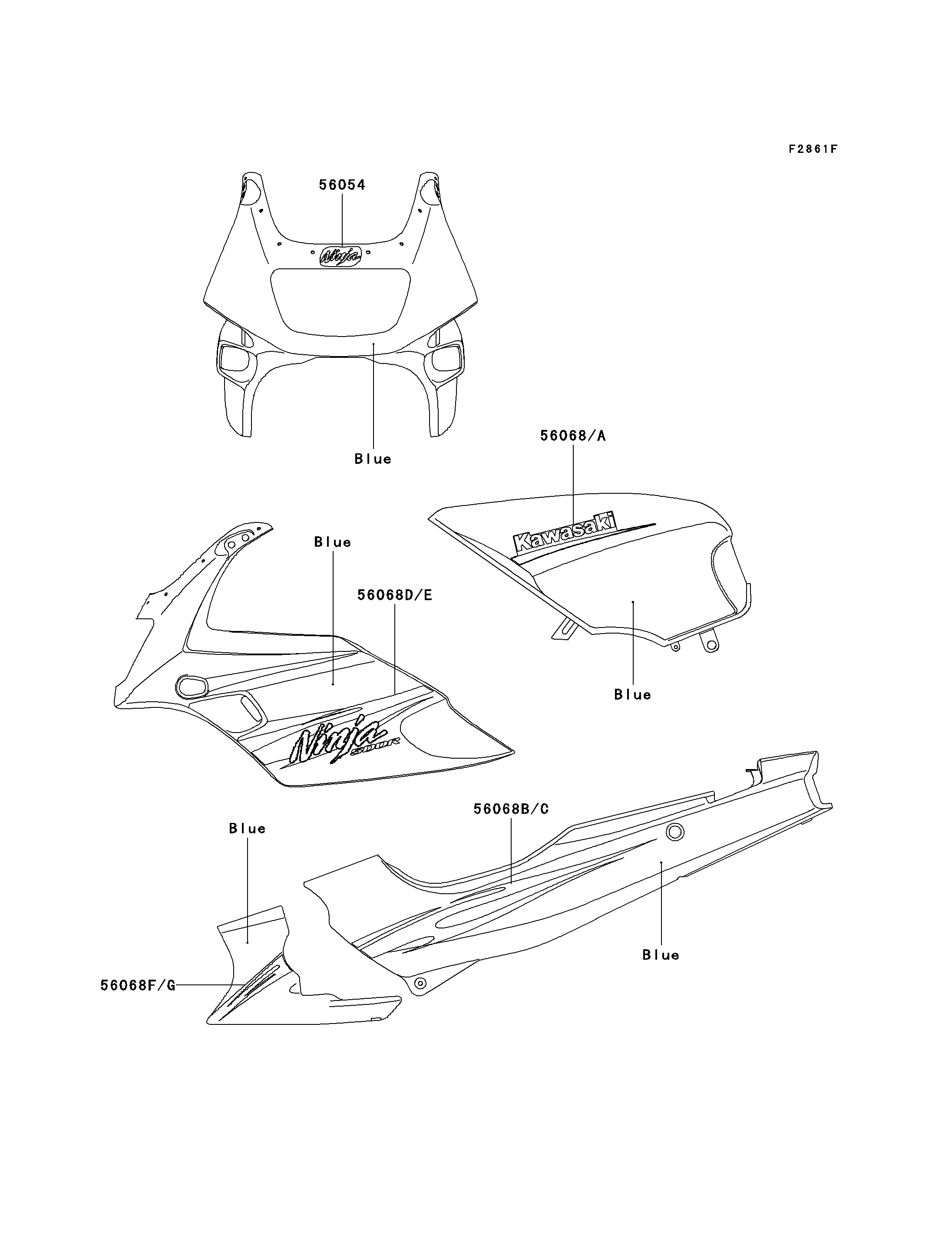

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,UPP COWLING,NINJA | 56054 | 56054-0254 | 1 | ||
| PATTERN,FUEL TANK,LH | 56068 | 56068-1317 | 1 | ||
| PATTERN,FUEL TANK,RH | 56068A | 56068-1318 | 1 | ||
| PATTERN,SIDE COVER,LH | 56068B | 56068-1319 | 1 | ||
| PATTERN,SIDE COVER,RH | 56068C | 56068-1320 | 1 | ||
| PATTERN,UPP COWLING,LH | 56068D | 56068-1321 | 1 | ||
| PATTERN,UPP COWLING,RH | 56068E | 56068-1322 | 1 | ||
| PATTERN,LWR COWLING,LH | 56068F | 56068-1323 | 1 | ||
| PATTERN,LWR COWLING,RH | 56068G | 56068-1324 | 1 |
| MARK,UPP COWLING,NINJA | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56068A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56068B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56068C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LH | |
| REF # | 56068D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,RH | |
| REF # | 56068E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,LH | |
| REF # | 56068F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,RH | |
| REF # | 56068G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
