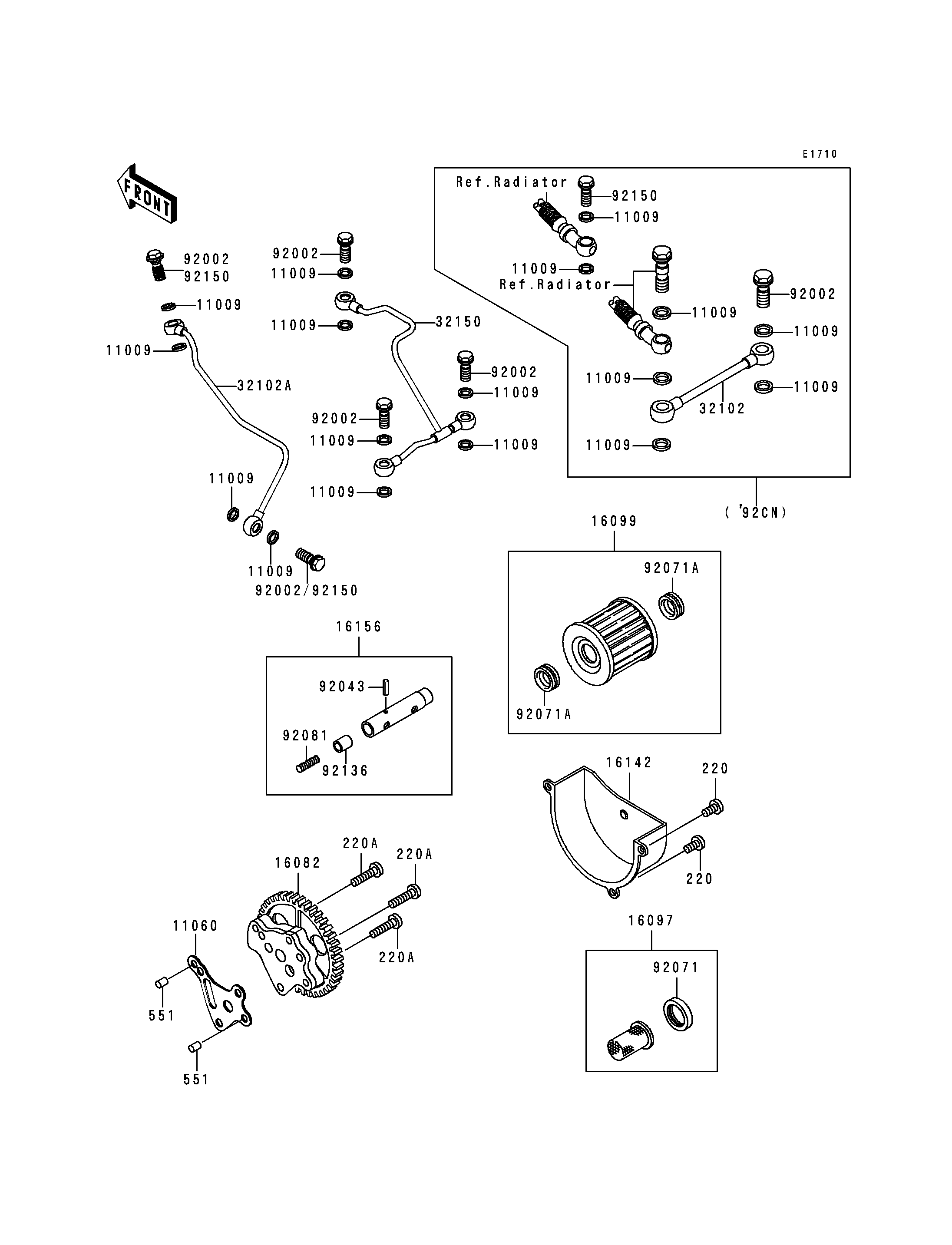

1990 Bayou 300 4X4 - Oil Pump/Oil Filter
220
220
220A
220A
220A
551
551
11009
11009
11009
11009
11009
11009
11009
11009
11009
11009
11009
11009
11009
11009
11009
11009
11009
11060
16082
16097
16099
16142
16156
32102A
32150
92002
92002
92002
92002
92002
92002
92043
92071
92071A
92071A
92081
92136
92150
92150
92150
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-PAN-CROS,6X12 | 220 | 220B0612 | 3 | ||
| SCREW-PAN-CROS,6X25 | 220A | 220B0625 | 3 | ||
| PIN-DOWEL,6X8 | 551 | 551A0608 | 2 | ||
| GASKET,10X14.5X1.5 | 11009 | 11009-1105 | 10 | ||
| GASKET,OIL PUMP | 11060 | 11060-1234 | 1 | ||
| PUMP-ASSY-OIL | 16082 | 16082-1068 | 1 | ||
| FILTER-ASSY-OIL | 16097 | 16097-1001 | 1 | ||
| ELEMENT-OIL FILTER | 16099 | 16099-004 | 1 | ||
| COVER-PUMP | 16142 | 16142-1064 | 1 | ||
| PISTON-ASSY,VALVE,BY-PASS | 16156 | 16156-002 | 1 | ||
| PIPE | 32102A | 32102-1967 | 1 | ||
| PIPE | 32150 | 32150-1153 | 1 | ||
| BOLT,OIL,L=23 | 92002 | 92002-1888 | 3 | ||
| PIN,SPRING,2.2X13.5 | 92043 | 92043-123 | 1 | ||
| GROMMET,OIL STRAINER | 92071 | 92071-100 | 1 | ||
| GROMMET,OIL FILTER | 92071A | 92071-101 | 2 | ||
| SPRING,PISTON | 92081 | 92081-043 | 1 | ||
| VALVE | 92136 | 92136-002 | 1 | ||
| BOLT,BANJO,10X23 | 92150 | 92150-1123 | 2 |
| SCREW-PAN-CROS,6X12 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,6X25 | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PIN-DOWEL,6X8 | |
| REF # | 551 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,10X14.5X1.5 | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| GASKET,OIL PUMP | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PUMP-ASSY-OIL | |
| REF # | 16082 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER-ASSY-OIL | |
| REF # | 16097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT-OIL FILTER | |
| REF # | 16099 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-PUMP | |
| REF # | 16142 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-ASSY,VALVE,BY-PASS | |
| REF # | 16156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE | |
| REF # | 32102A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE | |
| REF # | 32150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,OIL,L=23 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PIN,SPRING,2.2X13.5 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET,OIL STRAINER | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET,OIL FILTER | |
| REF # | 92071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,PISTON | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE | |
| REF # | 92136 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,BANJO,10X23 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
