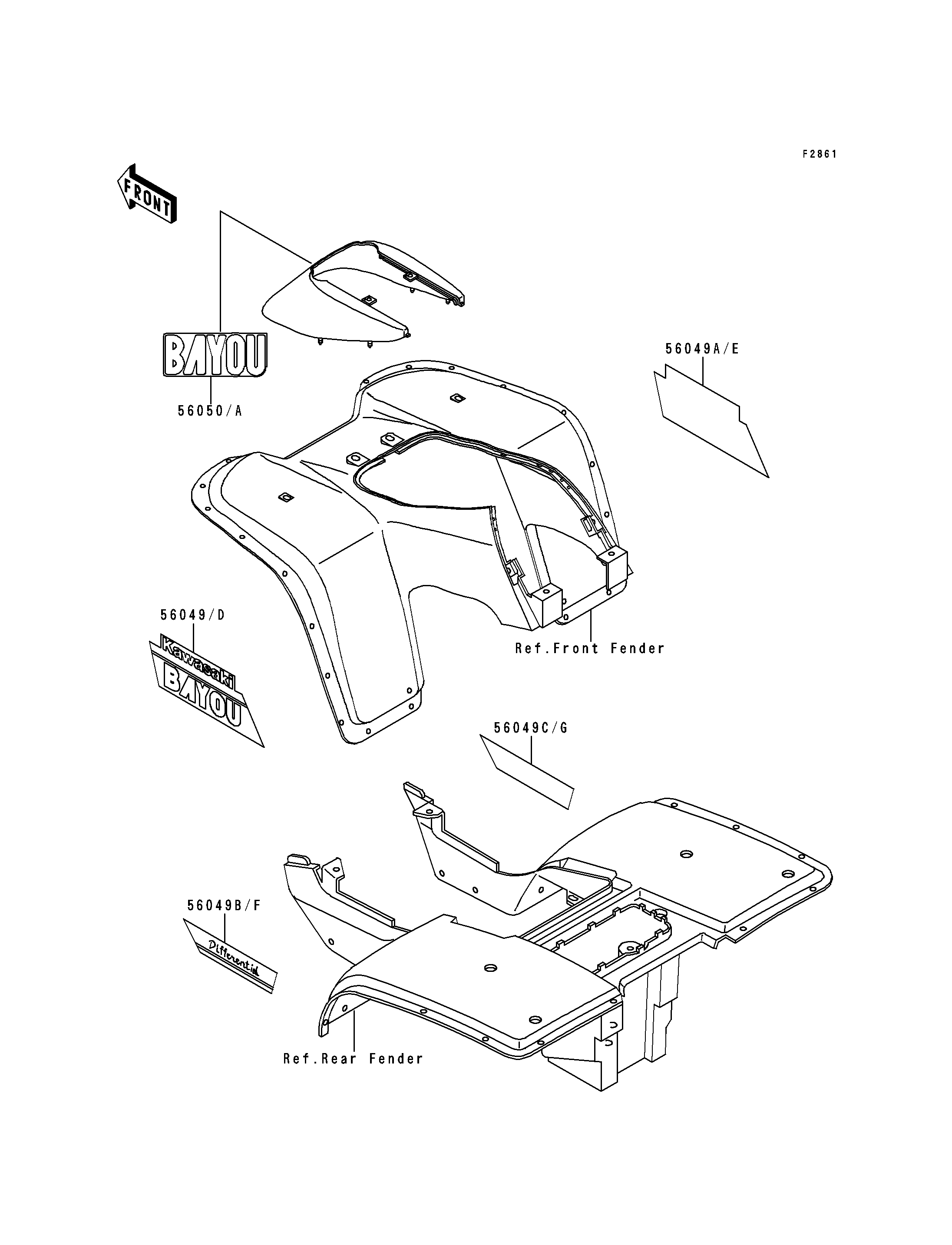

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PATTERN,FR FENDER,LH,FOR RED | 56049 | 56049-1723 | 1 | ||
| PATTERN,FR FENDER,RH,FOR RED | 56049A | 56049-1724 | 1 | ||
| PATTERN,RR FENDER,LH,FOR RED | 56049B | 56049-1725 | 1 | ||
| PATTERN,RR FENDER,RH,FOR RED | 56049C | 56049-1726 | 1 | ||
| PATTERN,FR FENDER,LH,FOR BLACK | 56049D | 56049-1727 | 1 | ||
| PATTERN,FR FENDER,RH,FOR BLACK | 56049E | 56049-1728 | 1 | ||
| PATTERN,RR FENDER,LH,FOR BLACK | 56049F | 56049-1729 | 1 | ||
| PATTERN,RR FENDER,RH,FOR BLACK | 56049G | 56049-1730 | 1 | ||
| MARK,FR FENDER COVER,FR,BLACK | 56050 | 56050-1571 | 1 | ||
| MARK,FR FENDER COVER,FR,RED | 56050A | 56050-1572 | 1 |
