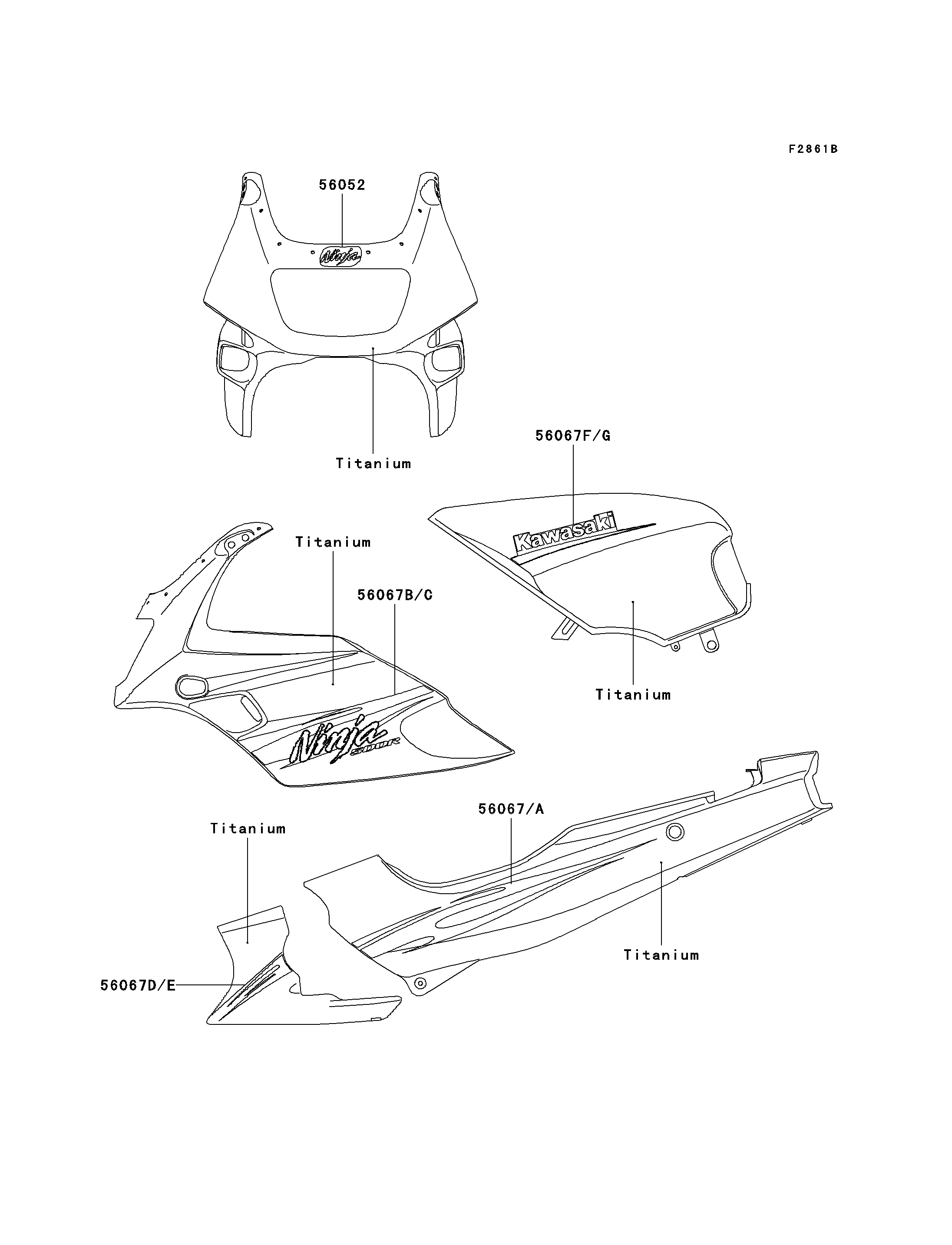

2007 Ninja® 500R - Decals(Titanium)(D7F)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,UPP COWLING,NINJA | 56052 | 56052-0958 | 1 | ||
| PATTERN,SIDE COVER,LH | 56067 | 56067-1321 | 1 | ||
| PATTERN,SIDE COVER,RH | 56067A | 56067-1322 | 1 | ||
| PATTERN,UPP COWLING,LH | 56067B | 56067-1323 | 1 | ||
| PATTERN,UPP COWLING,RH | 56067C | 56067-1324 | 1 | ||
| PATTERN,LWR COWLING,LH | 56067D | 56067-1325 | 1 | ||
| PATTERN,LWR COWLING,RH | 56067E | 56067-1326 | 1 | ||
| PATTERN,FUEL TANK,LH | 56067F | 56067-1327 | 1 | ||
| PATTERN,FUEL TANK,RH | 56067G | 56067-1328 | 1 |
| MARK,UPP COWLING,NINJA | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56067 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56067A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LH | |
| REF # | 56067B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,RH | |
| REF # | 56067C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,LH | |
| REF # | 56067D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,RH | |
| REF # | 56067E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56067F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56067G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
