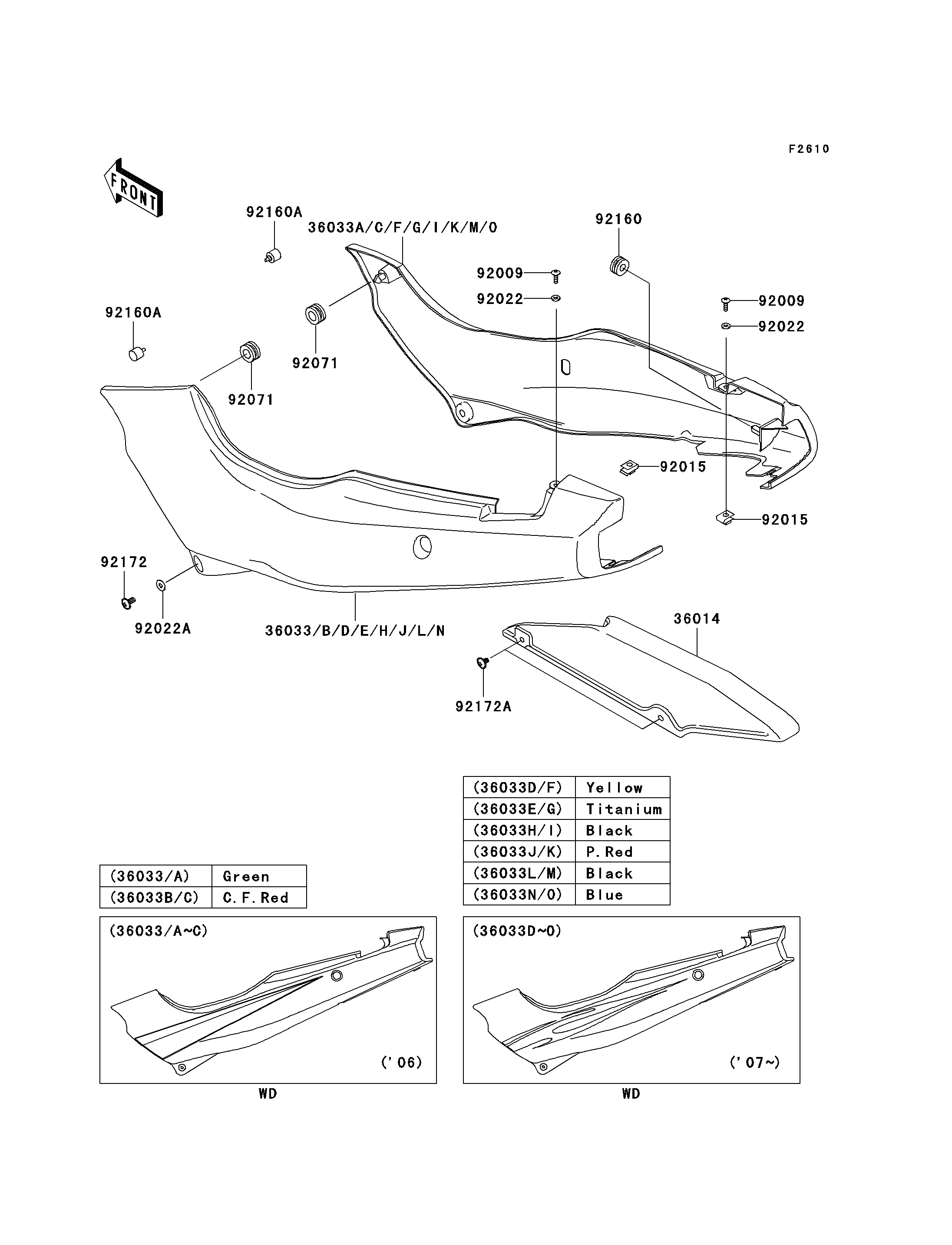

2008 Ninja® 500R - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
36014
36014
36033H
36033H
36033I
36033I
92009
92009
92009
92009
92015
92015
92015
92015
92022
92022
92022
92022
92022A
92022A
92071
92071
92071
92071
92160
92160
92160A
92160A
92160A
92160A
92172
92172
92172A
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-CHAIN 36014 36014-1164 1
COVER-SIDE,LH,M.D,BLACK 36033H 36033-5309-17K 1
COVER-SIDE,RH,M.D,BLACK 36033I 36033-5310-17K 1
SCREW,5X16,BLACK 92009 92009-1654 2
NUT,5MM 92015 92015-1710 2
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 2
WASHER,6.5X16X1.0 92022A 92022-1654 2
GROMMET 92071 92071-056 2
DAMPER 92160 92160-1162 2
DAMPER 92160A 92160-1555 2
SCREW,6X14 92172 92172-0004 2
SCREW,6X10 92172A 92172-0005 2
COVER-SIDE,LH,P.RED 36033J 36033-5311-234 1 US
COVER-SIDE,RH,P.RED 36033K 36033-5312-234 1 US
