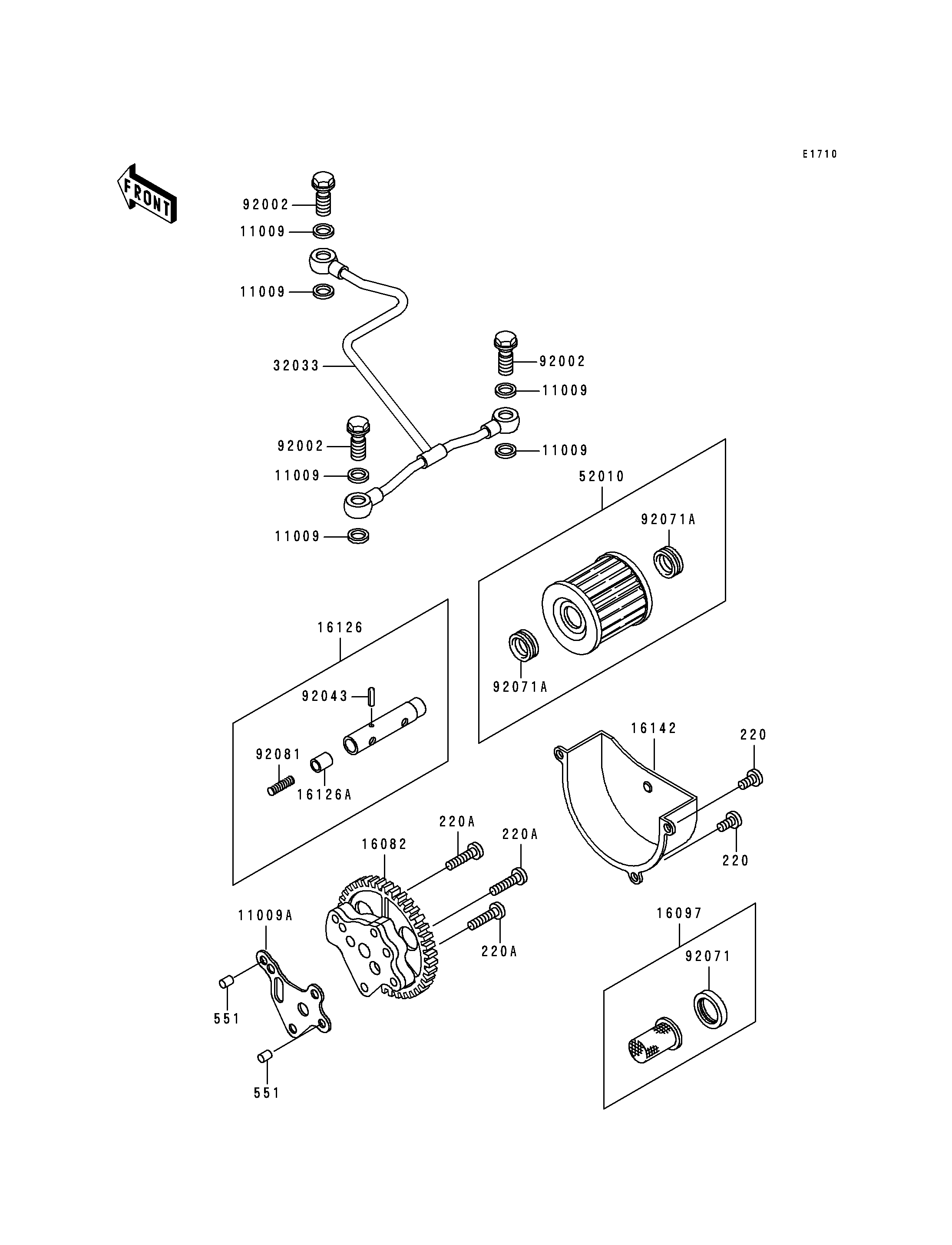

1991 Bayou 300 - Oil Pump

DOWNLOAD PDF
SELECT A NEW PART
220
220
220A
220A
220A
551
551
11009
11009
11009
11009
11009
11009
11009A
16082
16097
16126
16126A
16142
32033
52010
92002
92002
92002
92043
92071
92071A
92071A
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,6X12 220 220B0612 3
SCREW-PAN-CROS,6X25 220A 220B0625 3
PIN-DOWEL,6X8 551 551A0608 2
GASKET,10X14.5X1.5 11009 11009-1105 6
GASKET,OIL PUMP 11009A 11009-1520 1
PUMP-ASSY-OIL 16082 16082-1068 1
FILTER-ASSY-OIL 16097 16097-1001 1
PISTON-ASSY,VALVE,BY-PASS 16126 16156-002 1
VALVE 16126A 92136-002 1
COVER-PUMP 16142 16142-1064 1
PIPE,OIL 32033 32033-1744 1
ELEMENT-OIL FILTER 52010 16099-004 1
BOLT,OIL,L=23 92002 92002-1888 3
PIN,SPRING,2.2X13.5 92043 92043-123 1
GROMMET,OIL STRAINER 92071 92071-100 1
GROMMET,OIL FILTER 92071A 92071-101 2
SPRING,PISTON 92081 92081-043 1
