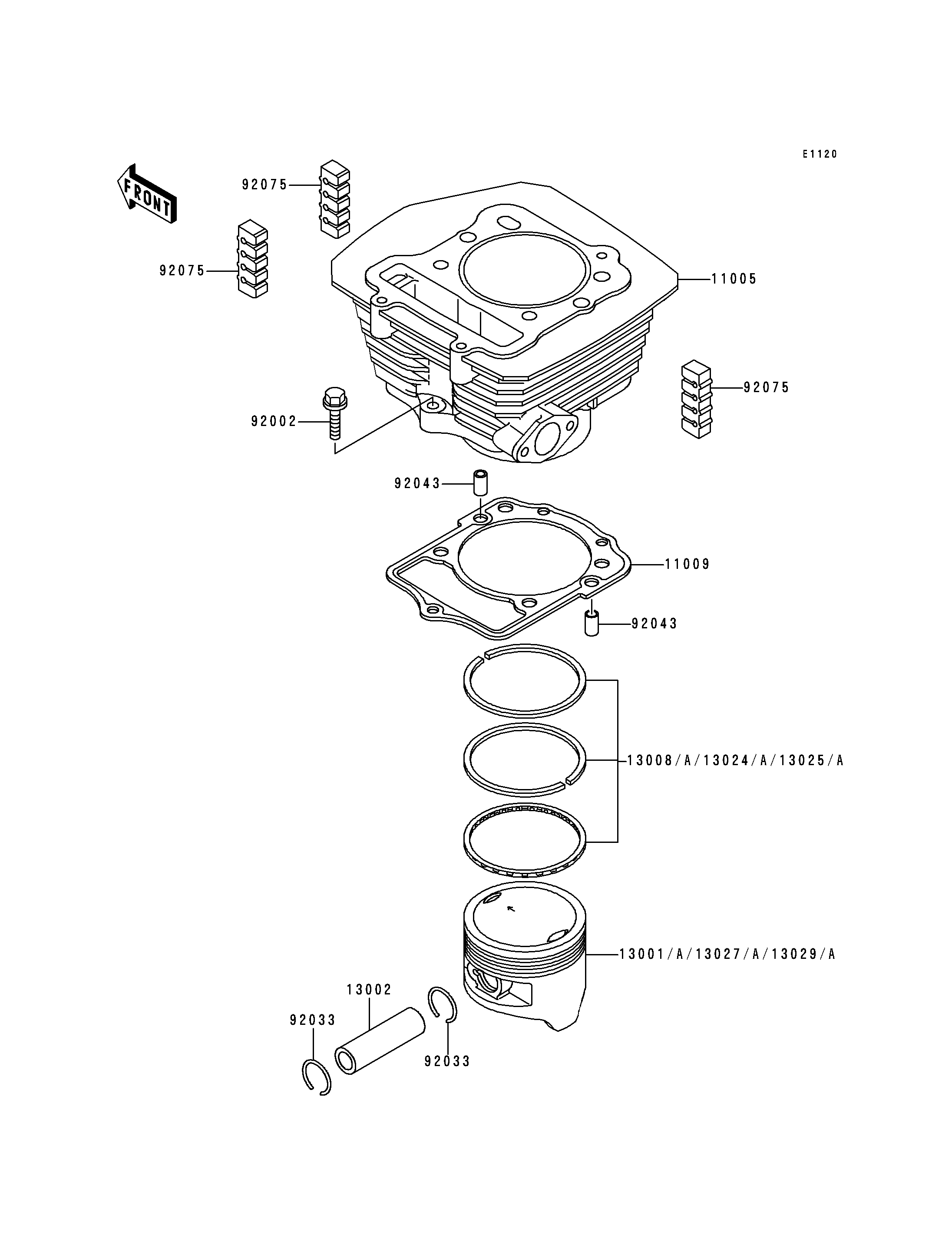

1991 Bayou 300 - Cylinder/Piston

DOWNLOAD PDF
SELECT A NEW PART
11005
11009
13001A
13002
13008A
13024A
13025A
13027A
13029A
92002
92033
92033
92043
92043
92075
92075
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE 11005 11005-1533 1
GASKET,CYLINDER BASE 11009 11009-1515 1
PISTON-ENGINE,STD 13001A 13001-1286 1
PIN-PISTON 13002 13002-1059 1
RING-SET-PISTON,STD 13008A 13008-1111 1
RING-SET-PISTON LL,O/S 1.00 13024A 13024-1080 1
RING-SET-PISTON L,O/S 0.50 13025A 13025-1093 1
PISTON-ENGINE LL,O/S 1.00 13027A 13027-1157 1
PISTON-ENGINE L,O/S 0.50 13029A 13029-1181 1
BOLT,6X28 92002 92002-1105 1
RING-SNAP,20.5X1.2 92033 92033-1099 2
PIN,6.2X8X14 92043 92043-1263 2
DAMPER 92075 92075-1657 3
