Parts Diagrams |

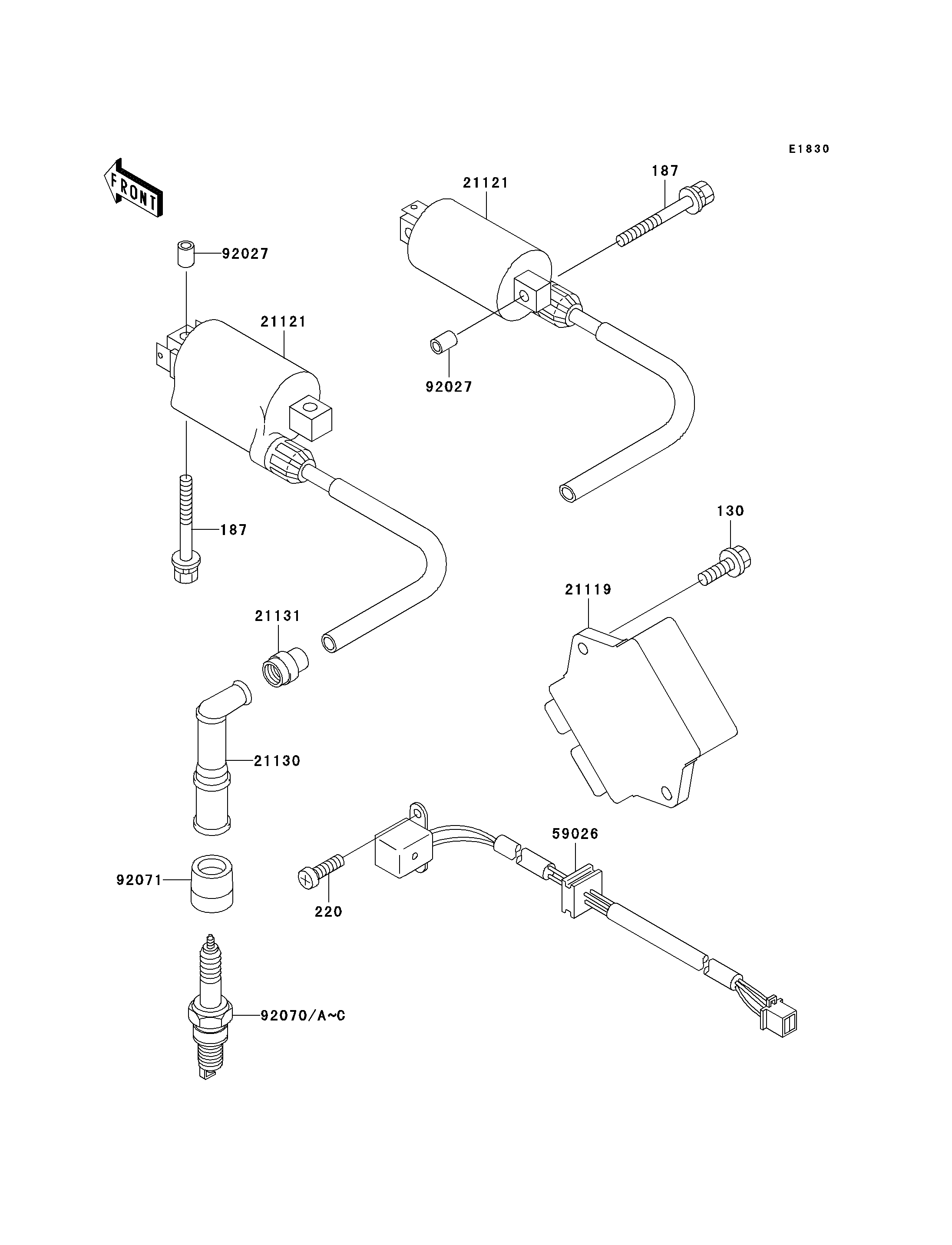

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X16 | 130 | 130BA0616 | 2 | ||
| BOLT-UPSET-WSP,6X25 | 187 | 187BA0625 | 4 | ||
| SCREW-PAN-CROSS,5X10 | 220 | 220AA0510 | 2 | ||
| IGNITER | 21119 | 21119-1408 | 1 | ||
| COIL-IGNITION | 21121 | 21121-1153 | 2 | ||
| CAP-SPARK PLUG | 21130 | 21130-1068 | 2 | ||
| GROMMET,HIGH TENSION | 21131 | 21131-005 | 2 | ||
| COIL-PULSING | 59026 | 59026-1126 | 1 | ||
| COLLAR,6.8X10X6 | 92027 | 92027-103 | 4 | ||
| PLUG-SPARK,X24ESR-U(ND) | 92070 | AR | (OPTION) | ||
| PLUG-SPARK,X27ESR-U(ND) | 92070A | 2 | (LOCAL PROCUREMENT ITEM) | ||
| PLUG-SPARK,DR9EA(NGK) | 92070B | 92070-1189 | 2 | ||
| PLUG-SPARK,DR8EA(NGK) | 92070C | 92070-1199 | AR | (OPTION) | |
| GROMMET,PLUG CAP | 92071 | 92071-1146 | 2 |
| BOLT-FLANGED,6X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WSP,6X25 | |
| REF # | 187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROSS,5X10 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| IGNITER | |
| REF # | 21119 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL-IGNITION | |
| REF # | 21121 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP-SPARK PLUG | |
| REF # | 21130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET,HIGH TENSION | |
| REF # | 21131 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COIL-PULSING | |
| REF # | 59026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.8X10X6 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLUG-SPARK,X24ESR-U(ND) | |
| REF # | 92070 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
| PLUG-SPARK,X27ESR-U(ND) | |
| REF # | 92070A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | (LOCAL PROCUREMENT ITEM) |
| PLUG-SPARK,DR9EA(NGK) | |
| REF # | 92070B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG-SPARK,DR8EA(NGK) | |
| REF # | 92070C |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
| GROMMET,PLUG CAP | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
