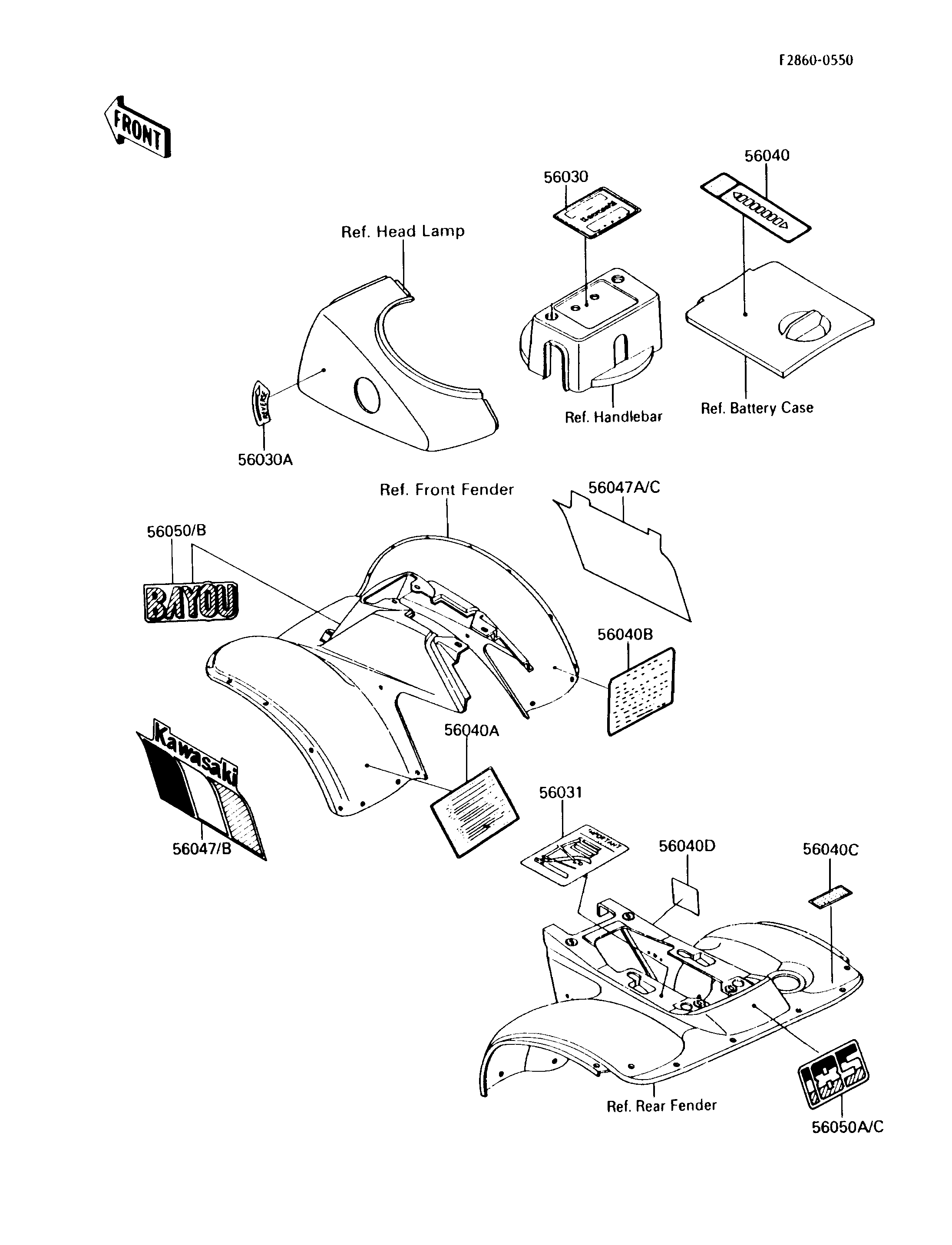

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,IGNITION PLATE | 56030 | 56030-1064 | 1 | ||
| LABEL,REVERSE | 56030A | 56030-1077 | 1 | ||
| LABEL-MANUAL,BATTERY VENT | 56031 | 56031-1388 | 1 | ||
| LABEL-WARNING,SHIFT PATTERN | 56040 | 56040-1164 | 1 | ||
| LABEL-WARNING,OFF ROAD ONLY | 56040A | 56040-1175 | 1 | ||
| LABEL-WARNING,IMPORTANT NOTICE | 56040B | 56040-1176 | 1 | ||
| LABEL-WARNING,REFUELING | 56040C | 56040-1177 | 1 | ||
| LABEL-WARNING,IMPORTANT INFO | 56040D | 56040-1224 | 1 | ||
| PATTERN,FR FENDER,LH,FOR WHITE | 56047 | 56047-1706 | 1 | ||
| PATTERN,FR FENDER,RH,FOR WHITE | 56047A | 56047-1707 | 1 | ||
| PATTERN,FR FENDER,LH,FOR RED | 56047B | 56047-1708 | 1 | ||
| PATTERN,FR FENDER,RH,FOR RED | 56047C | 56047-1709 | 1 | ||
| MARK,FR FENDER,BAYOU,FOR WHITE | 56050 | 56050-1041 | 1 | ||
| MARK,RR FENDER,185,FOR WHITE | 56050A | 56050-1042 | 1 | ||
| MARK,FR FENDER,BAYOU,FOR RED | 56050B | 56050-1043 | 1 | ||
| MARK,RR FENDER,185,FOR RED | 56050C | 56050-1044 | 1 |
