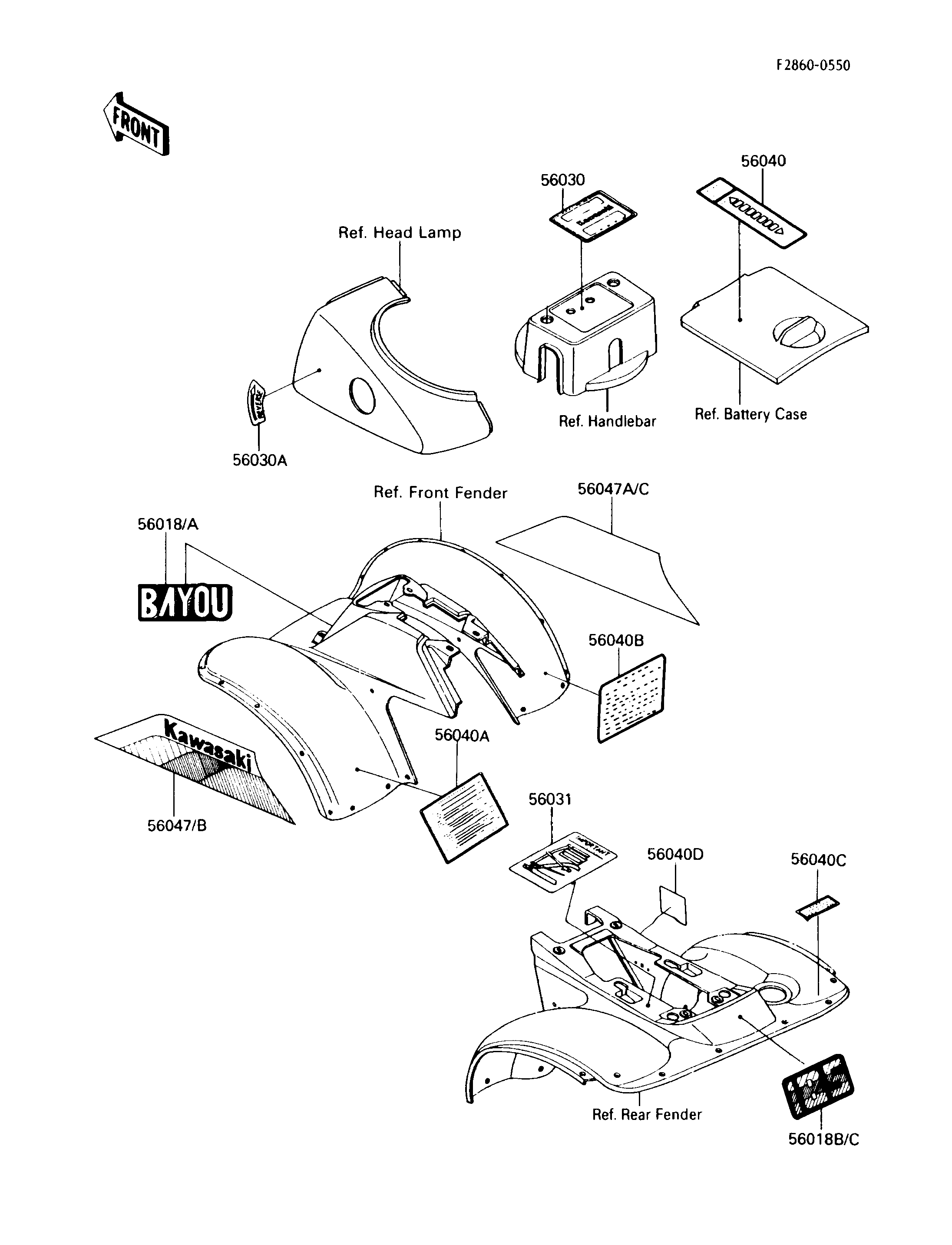

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FR FENDER,BAYOU,FOR EBONY | 56018 | 56018-1906 | 1 | ||
| MARK,FR FENDER,BAYOU,FOR RED | 56018A | 56018-1907 | 1 | ||
| MARK,RR FENDER,185,FOR EBONY | 56018B | 56018-1908 | 1 | ||
| MARK,RR FENDER,185,FOR RED | 56018C | 56018-1909 | 1 | ||
| LABEL,IGNITION PLATE | 56030 | 56030-1064 | 1 | ||
| LABEL,REVERSE | 56030A | 56030-1077 | 1 | ||
| LABEL-MANUAL,BATTERY VENT | 56031 | 56031-1388 | 1 | ||
| LABEL-WARNING,SHIFT PATTERN | 56040 | 56040-1164 | 1 | ||
| LABEL-WARNING | 56040A | 56040-1196 | 1 | ||
| LABEL-WARNING,IMPORTANT NOTICE | 56040B | 56040-1197 | 1 | ||
| LABEL-WARNING,REFUELING | 56040C | 56040-1200 | 1 | ||
| LABEL-WARNING,IMPORTANT INFO | 56040D | 56040-1205 | 1 | ||
| PATTERN,FR FENDER,LH,FOR EBONY | 56047 | 56047-1179 | 1 | ||
| PATTERN,FR FENDER,RH,FOR EBONY | 56047A | 56047-1180 | 1 | ||
| PATTERN,FR FENDER,LH,FOR RED | 56047B | 56047-1181 | 1 | ||
| PATTERN,FR FENDER,RH,FOR RED | 56047C | 56047-1182 | 1 |
