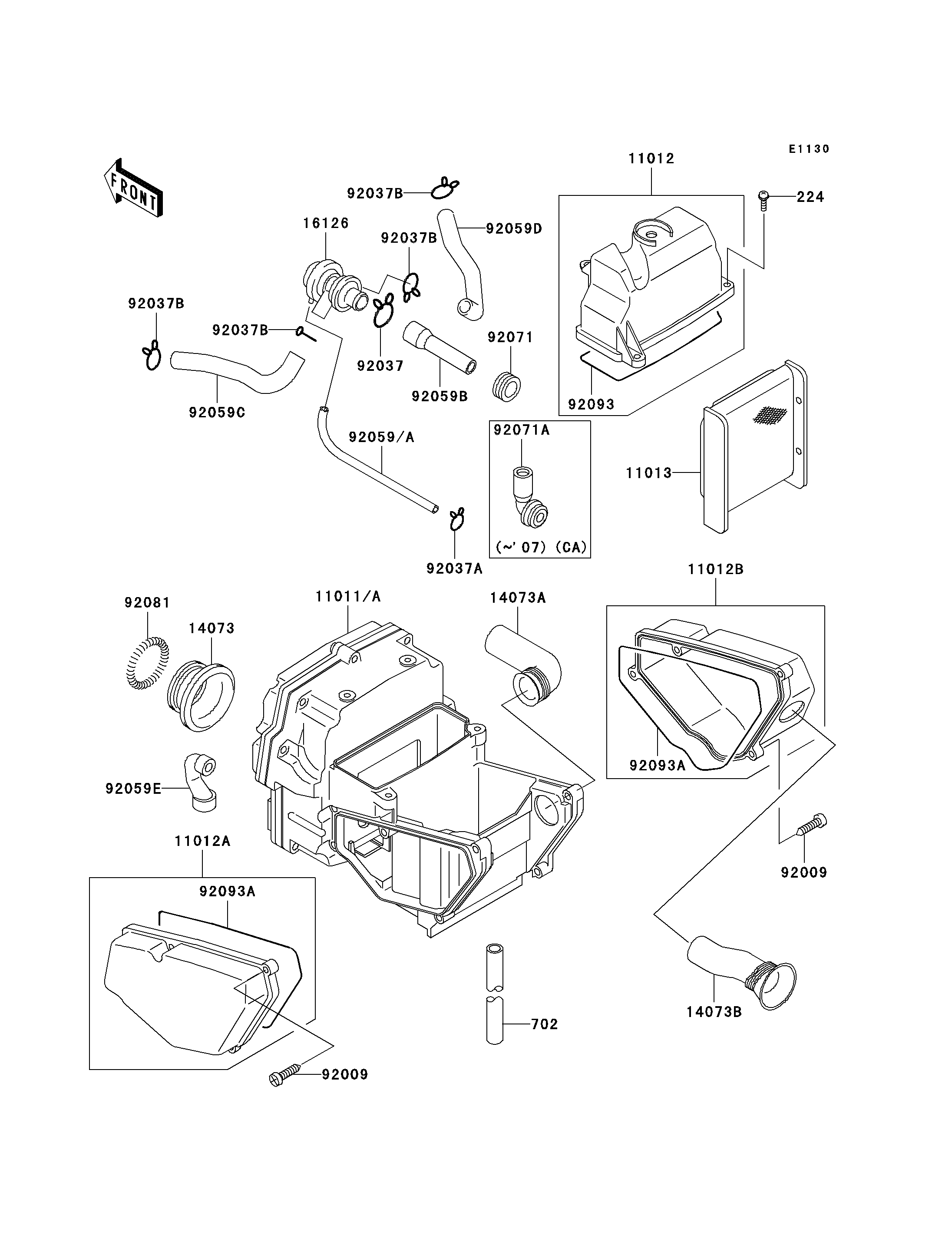

2008 Ninja® 500R - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
224
702
11011A
11012
11012A
11012B
11013
14073
14073A
14073B
16126
92009
92009
92037
92037A
92037B
92037B
92037B
92037B
92059
92059B
92059C
92059D
92059E
92071
92081
92093
92093A
92093A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-WP-CROS,6X20 224 224AA0620 4
TUBE-RUBBER,5X350 702 702A05350 1
CASE-AIR FILTER 11011A 11011-1649 1
CAP,AIR FILTER CASE,UPP 11012 11012-1571 1
CAP,AIR FILTER,LH 11012A 11012-1608 1
CAP,AIR FILTER,RH 11012B 11012-1609 1
ELEMENT-AIR FILTER 11013 11013-1252 1
DUCT,CARBURATOR 14073 14073-1292 2
DUCT,INTAKE 14073A 14073-1293 1
DUCT 14073B 14073-1295 1
VALVE,AIR SWITCH 16126 16126-1283 1
SCREW,TAPPING,5X30 92009 92009-1488 8
CLAMP,TUBE 92037 92037-1076 1
CLAMP 92037A 92037-1712 1
CLAMP,TUBE 92037B 92037-213 4
TUBE,4X9X290 92059 92059-1043 1
TUBE,AIR FILTER-ACV 92059B 92059-1770 1
TUBE,AIR SWITCH,LH 92059C 92059-1771 1
TUBE,AIR SWITCH,RH 92059D 92059-1772 1
TUBE,BREATHER 92059E 92059-1773 1
GROMMET,AIR FILTER 92071 92071-1028 1
SPRING,COIL,BLACK 92081 92081-1457 2
SEAL,AIR FILTER CAP 92093 92093-1233 1
SEAL,AIR FILTER 92093A 92093-1234 2
