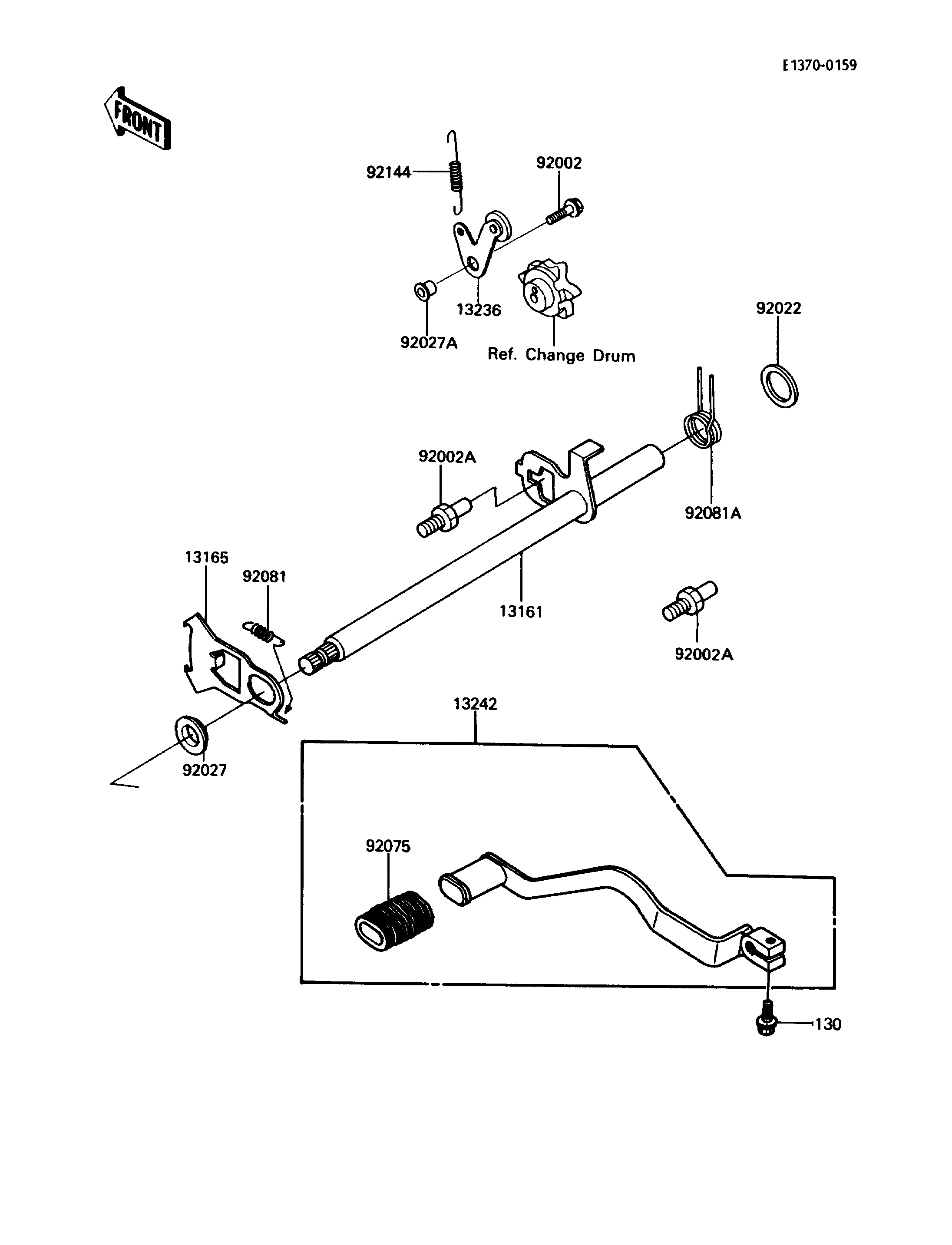

1987 Bayou 185 - Gear Change Mechanism
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER-COMP-CHANGE SHAFT | 13161 | 13161-1110 | 1 | ||
| PAWL,CHANGE LEVER | 13165 | 13165-1112 | 1 | ||
| LEVER-COMP,NEUTRAL POSITION | 13236 | 13236-1145 | 1 | ||
| LEVER-ASSY-CHANGE,PEDAL | 13242 | 13242-1199 | 1 | ||
| BOLT,6X20 | 92002 | 92002-1237 | 1 | ||
| BOLT,RETURN SPRING | 92002A | 92002-1408 | 2 | ||
| WASHER,25.5X36X1 | 92022 | 92022-057 | 1 | ||
| COLLAR,CHANGE SHAFT,L=5.5 | 92027 | 92027-1512 | 1 | ||
| COLLAR,L=5.2 | 92027A | 92027-1716 | 1 | ||
| DAMPER,CHANGE PEDAL | 92075 | 92075-1585 | 1 | ||
| SPRING,CHANGE LEVER | 92081 | 92081-1753 | 1 | ||
| SPRING,CHANGE SHAFT RETURN | 92081A | 92081-1987 | 1 | ||
| SPRING | 92144 | 92144-1003 | 1 | ||
| BOLT-FLANGED,6X20,BLACK | 130 | 130S0620 | 1 |
