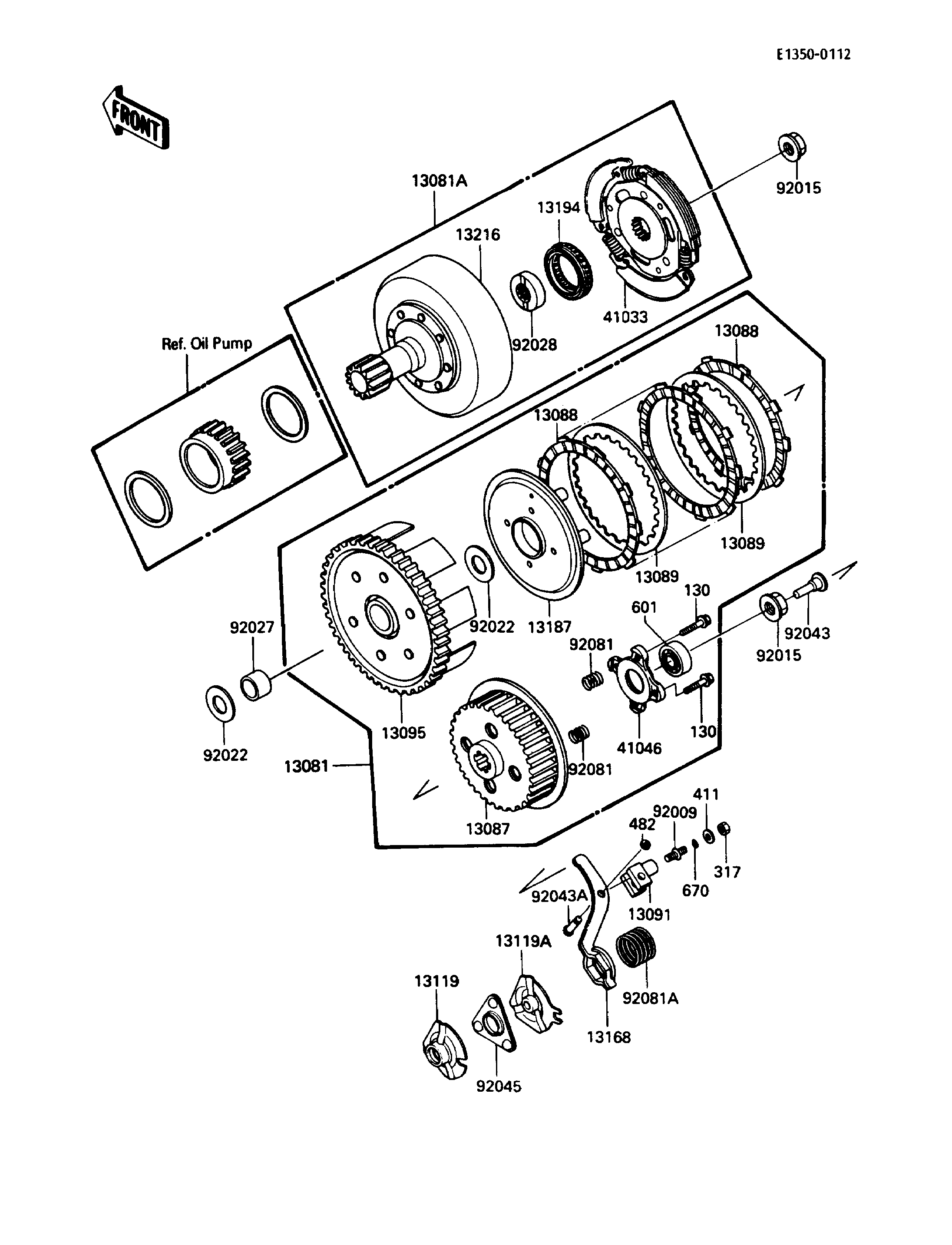

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CLUTCH-ASSY | 13081 | 13081-1205 | 1 | ||
| CLUTCH-ASSY,FR,ENGINE | 13081A | 13081-1209 | 1 | ||
| HUB-CLUTCH | 13087 | 13087-1054 | 1 | ||
| PLATE-FRICTION,ID=91 | 13088 | 13088-1016 | 5 | ||
| PLATE-CLUTCH | 13089 | 13089-1012 | 4 | ||
| HOLDER,CLUTCH RELEASE | 13091 | 13091-1341 | 1 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-1134 | 1 | ||
| CAM-RELEASE | 13119 | 13119-1054 | 1 | ||
| CAM-RELEASE | 13119A | 13119-1060 | 1 | ||
| LEVER,CLUTCH RELEASE | 13168 | 13168-1223 | 1 | ||
| PLATE-CLUTCH OPERATING | 13187 | 13187-1051 | 1 | ||
| CLUTCH-ONEWAY | 13194 | 13194-1055 | 1 | ||
| GEAR-COMP,CLUTCH | 13216 | 13216-1055 | 1 | ||
| HUB-ASSY,CLUTCH | 41033 | 41033-1567 | 1 | ||
| HOUSING-BEARING | 41046 | 41046-1055 | 1 | ||
| SCREW,CLUTCH RELEASE | 92009 | 92009-1303 | 1 | ||
| NUT,16MM | 92015 | 92015-1465 | 2 | ||
| WASHER,20.5X34X1.4 | 92022 | 92022-168 | 2 | ||
| COLLAR,20X25X21 | 92027 | 92027-1798 | 1 | ||
| BUSHING,CLUTCH | 92028 | 92028-1292 | 1 | ||
| PIN,CLUTCH | 92043 | 92043-1229 | 1 | ||
| PIN,CLUTCH RELEASE | 92043A | 92043-1230 | 1 | ||
| BEARING-BALL,CLUTCH RELEASE | 92045 | 92045-1117 | 1 | ||
| SPRING,CLUTCH | 92081 | 92081-1680 | 4 | ||
| SPRING | 92081A | 92081-1681 | 1 | ||
| BOLT-FLANGED,6X20 | 130 | 130P0620 | 4 | ||
| NUT-HEX-SMALL,8MM | 317 | 317B0800 | 1 | ||
| WASHER-PLAIN,8MM | 411 | 411B0800 | 1 | ||
| CIRCLIP-TYPE-E,6MM | 482 | 482J6000 | 1 | ||
| BEARING-BALL,#6201C3 | 601 | 601B6201 | 1 | ||
| O RING,8MM | 670 | 670B1508 | 1 |
