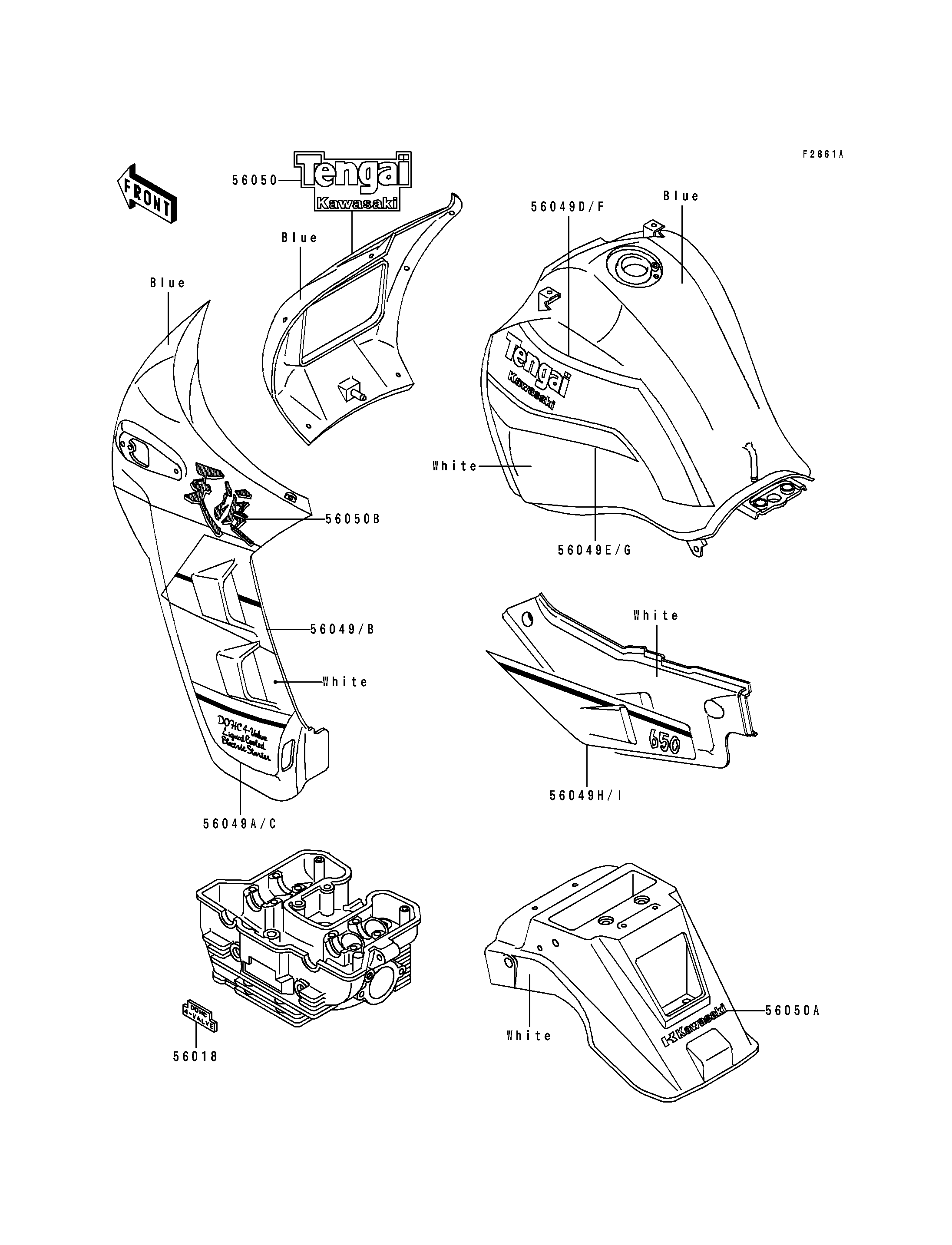

1991 Tengai - Decal(Blue/White)(KL650-B3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,CYLINDER HEAD | 56018 | 56018-1483 | 1 | ||
| PATTERN,SIDE COWLING,UPP,LH | 56049 | 56049-1451 | 1 | ||
| PATTERN,SIDE COWLING,LWR,LH | 56049A | 56049-1452 | 1 | ||
| PATTERN,SIDE COWLING,UPP,RH | 56049B | 56049-1453 | 1 | ||
| PATTERN,SIDE COWLING,LWR,RH | 56049C | 56049-1454 | 1 | ||
| PATTERN,FUEL TANK,UPP,LH | 56049D | 56049-1550 | 1 | ||
| PATTERN,FUEL TANK,LWR,LH | 56049E | 56049-1551 | 1 | ||
| PATTERN,FUEL TANK,UPP,RH | 56049F | 56049-1552 | 1 | ||
| PATTERN,FUEL TANK,LWR,RH | 56049G | 56049-1553 | 1 | ||
| PATTERN,SIDE COVER,LH | 56049H | 56049-1818 | 1 | ||
| PATTERN,SIDE COVER,RH | 56049I | 56049-1819 | 1 | ||
| MARK,TENGAI | 56050 | 56050-1472 | 1 | ||
| MARK,K.KAWASAKI | 56050A | 56050-1474 | 1 | ||
| MARK,SIDE COWLING | 56050B | 56050-1592 | 2 |
| MARK,CYLINDER HEAD | |
| REF # | 56018 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWLING,UPP,LH | |
| REF # | 56049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWLING,LWR,LH | |
| REF # | 56049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWLING,UPP,RH | |
| REF # | 56049B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWLING,LWR,RH | |
| REF # | 56049C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,UPP,LH | |
| REF # | 56049D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LWR,LH | |
| REF # | 56049E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,UPP,RH | |
| REF # | 56049F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LWR,RH | |
| REF # | 56049G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56049H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56049I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,TENGAI | |
| REF # | 56050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,K.KAWASAKI | |
| REF # | 56050A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COWLING | |
| REF # | 56050B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
