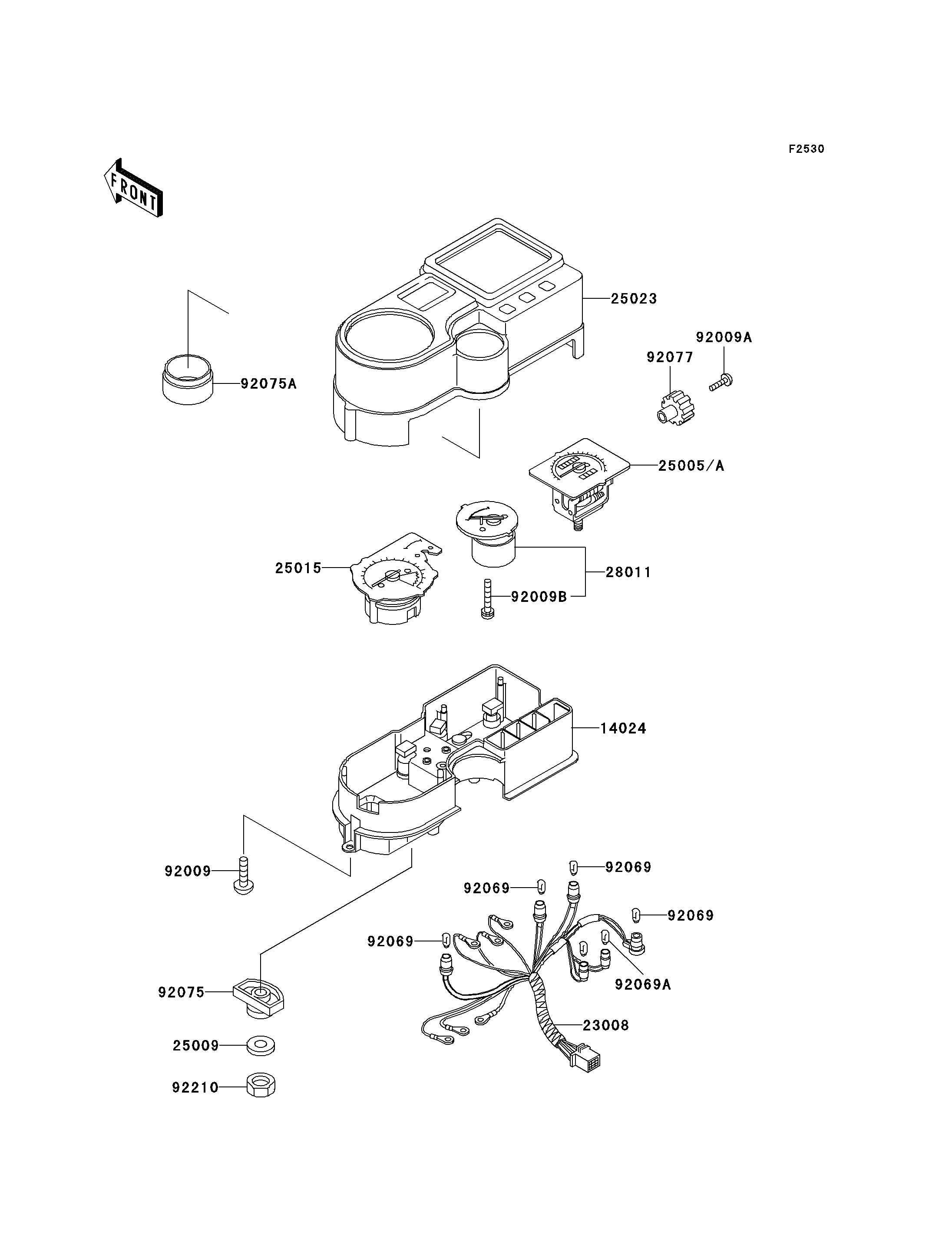

2006 KLR650 - Meter(s)

DOWNLOAD PDF
SELECT A NEW PART
14024
23008
25009
25015
25023
28011
92009
92009A
92009B
92069
92069
92069
92069
92069A
92075
92075A
92077
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,METER CASE,LWR 14024 14024-1407 1
SOCKET-ASSY,METER 23008 23008-1332 1
WASHER,5.2X16X1.2 25009 25009-004 2
TACHOMETER,X1000R/MIN 25015 25015-1263 1
COVER-METER CASE,UPP 25023 25023-1152 1
METER,TEMP 28011 28011-1091 1
SCREW,TAPPING,4X16 92009 92009-1163 3
SCREW,2X6,BLACK 92009A 92009-1172 1
SCREW,3X22 92009B 92009-1293 3
BULB,12V 3.4W,T10 92069 92069-1007 4
BULB,12V 1.7W,T6.5 92069A 92069-1070 2
DAMPER,METER BRACKET 92075 92075-1581 2
DAMPER 92075A 92075-1890 1
KNOB,METER 92077 92077-1054 1
NUT,5MM 92210 92210-1124 2
SPEEDOMETER,MPH 25005 25005-1341 1 CAUS
SPEEDOMETER,KPH 25005A 25005-1345 1 CN
