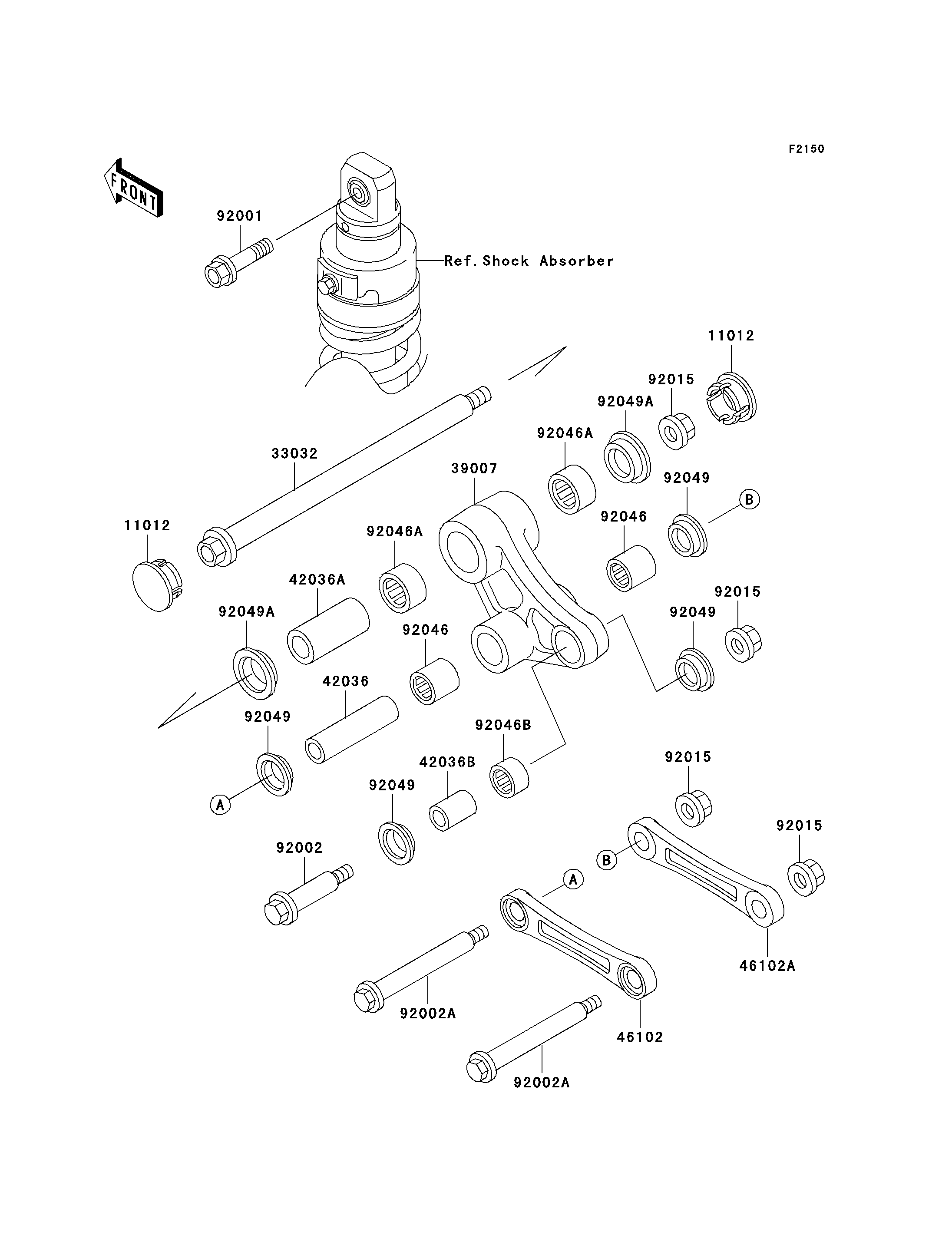

Parts Diagrams |
11012
11012
33032
39007
42036
42036A
42036B
46102
46102A
92001
92002
92002A
92002A
92015
92015
92015
92015
92046
92046
92046A
92046A
92046B
92049
92049
92049
92049
92049A
92049A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,32X14 | 11012 | 11012-1559 | 2 | ||
| SHAFT-SWING ARM | 33032 | 33032-1129 | 1 | ||
| ARM-SUSP,UNI TRAK | 39007 | 39007-1119 | 1 | ||
| SLEEVE,15X20X82 | 42036 | 42036-1205 | 1 | ||
| SLEEVE,20X28X60 | 42036A | 42036-1207 | 1 | ||
| SLEEVE,15X20X30 | 42036B | 42036-1208 | 1 | ||
| ROD,SUSPENSION,LH | 46102 | 46102-1227 | 1 | ||
| ROD,SUSPWNSION,RH | 46102A | 46102-1228 | 1 | ||
| BOLT,12X45 | 92001 | 92001-1939 | 1 | ||
| BOLT,FLANGED,14X64 | 92002 | 92002-1869 | 1 | ||
| BOLT,FLANGED,14X120 | 92002A | 92002-1870 | 2 | ||
| NUT,14MM | 92015 | 92015-1459 | 4 | ||
| BEARING-NEEDLE,BM202726 | 92046 | 92046-1110 | 2 | ||
| BEARING-NEEDLE,BM2817 | 92046A | 92046-1111 | 2 | ||
| BEARING-NEEDLE,BM202715 | 92046B | 92046-1112 | 1 | ||
| SEAL-OIL,ARM | 92049 | 92049-1109 | 4 | ||
| SEAL-OIL | 92049A | 92049-1181 | 2 |
| CAP,32X14 | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHAFT-SWING ARM | |
| REF # | 33032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ARM-SUSP,UNI TRAK | |
| REF # | 39007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,15X20X82 | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,20X28X60 | |
| REF # | 42036A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,15X20X30 | |
| REF # | 42036B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,SUSPENSION,LH | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,SUSPWNSION,RH | |
| REF # | 46102A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,12X45 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,14X64 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,14X120 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,14MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,BM202726 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,BM2817 | |
| REF # | 92046A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,BM202715 | |
| REF # | 92046B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,ARM | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
