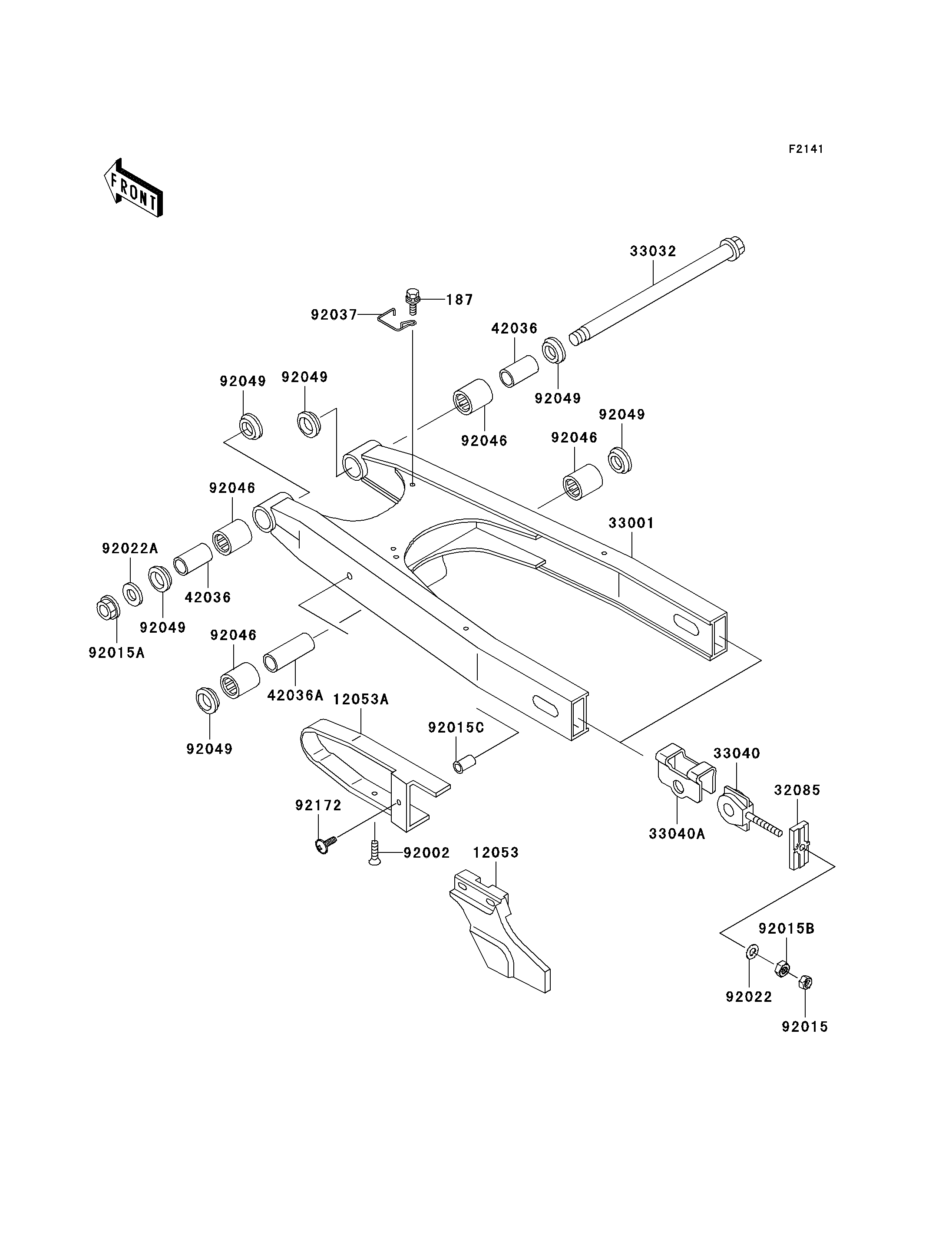

2006 KLR650 - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
187
12053
12053A
32085
33001
33032
33040
33040A
42036
42036
42036A
92002
92015
92015A
92015B
92015C
92022
92022A
92037
92046
92046
92046
92046
92049
92049
92049
92049
92049
92049
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP,6X16 187 187D0616 1
GUIDE-CHAIN,RR 12053 12053-1104 1
GUIDE-CHAIN,DRIVE,FR 12053A 12053-1360 1
STOPPER,CHAIN ADJUSTER 32085 32085-1256 2
ARM-COMP-SWING,SILVER NO.25 33001 33001-1278-CE 1
SHAFT-SWING ARM 33032 33032-1128 1
ADJUSTER-CHAIN,INNER 33040 33040-1075 2
ADJUSTER-CHAIN,OUTER 33040A 33040-1076 2
SLEEVE,15X20X47.5 42036 42036-1204 2
SLEEVE,15X20X82 42036A 42036-1205 1
BOLT,6MM 92002 92002-1775 1
NUT,8MM 92015 92015-1364 2
NUT,14MM 92015A 92015-1459 1
NUT,8MM 92015B 92015-1658 2
NUT,CRIMP 6MM 92015C 92015-1796 1
WASHER,8.5X16X1.2 92022 92022-1582 2
WASHER,16X32X3.2 92022A 92022-1701 1
CLAMP,HOSE 92037 92037-1902 1
BEARING-NEEDLE,BM202726 92046 92046-1110 4
SEAL-OIL,ARM 92049 92049-1109 6
SCREW,6X18 92172 92172-0002 1
